TAIL LAMP - LICENSE LAMP

GSX750R 1986 (G) GENERAL EXPORT (E01)

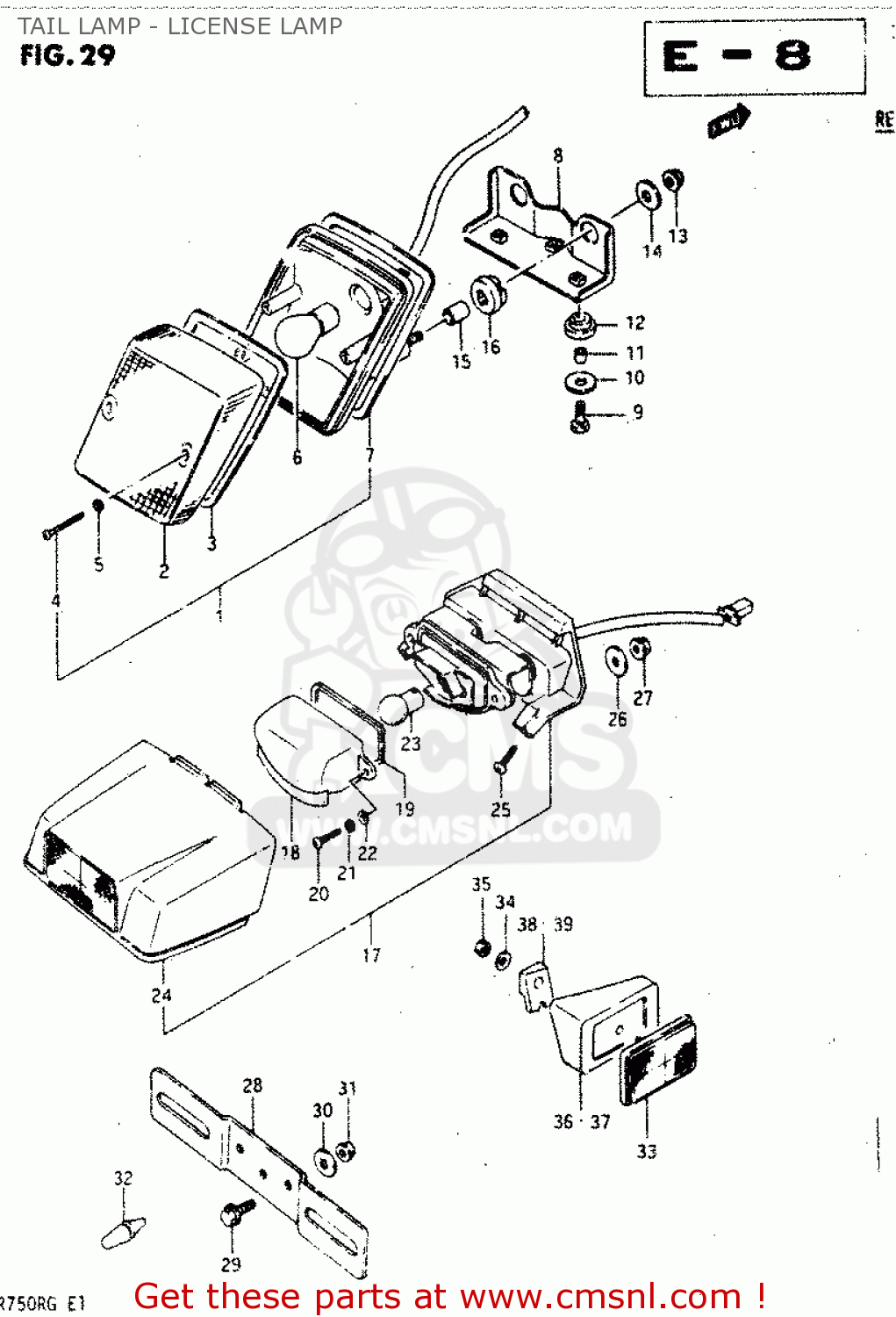

Tail lamp - license lamp diagram GSX750R 1986 (G) GENERAL EXPORT (E01)

TAIL LAMP - LICENSE LAMP GSX750R 1986 (G) GENERAL EXPORT (E01)
TAIL LAMP - LICENSE LAMP GSX750R 1986 (G) GENERAL EXPORT (E01)
TAIL LAMP - LICENSE LAMP GSX750R 1986 (G) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1-1
3571028A00
ref: 1-1
E1,E24
LAMP ASSY, REAR COMBINATION
€ 159.00
1-2
3571028A20
ref: 1-2
E2,E4,E15,E16,E17,E1
LAMP ASSY, REAR COMBINATION
€ 159.00
2
3571214A00
ref: 2
LENS,RR COMBI
3571214A00
€ 44.00
3
3571314A00
ref: 3
GASKET,REAR COMBINATION LAMP
€ 9.50
4
0321104258
ref: 4
SCREW TAPP.
0321104258
€ 2.00
5
3562743010
ref: 5
GASKET (NAS)
3562743010
€ 2.00
6-1
0947112084
ref: 6-1
E1,E24
BULB(12V23/8W,TOKAI DENSO)
0947112084
€ 6.00
6-2
0947112083
ref: 6-2
E2,E4,E15,E16,E17,E1
BULB(12V21/5W)
0947112083
€ 6.00
7
3573328A00
ref: 7
GASKET
€ 0.00
8
3572628A00
ref: 8
BRACKET,REAR COMBINATION LAMP
€ 7.00
9
0110706206
ref: 9
BOLT,M6X1X20
0110706206
€ 2.00
10
0916006020
ref: 10
WASHER
0916006020
€ 2.00
11
0918006084
ref: 11
SPACER (6.1X9X7.5)
€ 2.00
12
0932009028
ref: 12
CUSHION
0932009028
€ 3.00
13
0831626066
ref: 13
NUT
€ 2.00
14
0916006060
ref: 14
WASHER
0916006060
€ 2.00
15
0918006090
ref: 15
SPACER (6.4X9X10.5)
€ 2.00
16
0932009018
ref: 16
CUSHION
0932009018
€ 2.00
17-1
3591028A30
ref: 17-1
E1,E24
LAMP ASSY,LICENSE
3591028A30
€ 139.00
17-2
3591028A20
ref: 17-2
E2,E4,E15,E16,E17,E1
LAMP ASSY, LICENSE
€ 93.00
18-1
3591200A10
ref: 18-1
E1,E24
LENS,LICENSE LAMP
3591200A10
€ 16.00
18-2
3591200A20
ref: 18-2
E2,E4,E15,E16,E17,E1
LENS,LICENSE LAMP
3591200A20
€ 24.00
19
3591304A00
ref: 19
GASKET,LICESE LAMP (NAS)
3591304A00
€ 4.00
20
0211204167
ref: 20
SCREW
0211204167
€ 1.00
21
0832121047
ref: 21
WASHER,LOCK 4M
0832121047
€ 2.00
22
0832221047
ref: 22
WASHER 4MM
0832221047
€ 2.00
23-1
0947112037
ref: 23-1
E1,E24
BULB
€ 7.00
23-2
0947112059
ref: 23-2
E2,E4,E15,E16,E17,E1
BULB
€ 4.00
24
3591706B30
ref: 24
COVER,LICENSE LAMP
3591706B30
€ 35.50
25
0324104165
ref: 25
SCREW
€ 4.50
26
0916005011
ref: 26
WASHER (5.5X20X1.2)
€ 2.00
27
0031626036
ref: 27
0031626036
28
3592744110
ref: 28
PLATE,RR LICENSE
3592744110
€ 22.50
29
0151706164
ref: 29
BOLT
€ 2.50
30
0916006020
ref: 30
WASHER
0916006020
€ 2.00
31
0831626066
ref: 31
NUT
€ 2.00
32
0932106023
ref: 32
CUSHION
0932106023
€ 2.00
33
3595001A60
ref: 33
E39
REFLEX REFLECTOR, REAR SIDE
€ 0.00
34
0916005013
ref: 34
E39
WASHER(5.2X16X1)
0916005013
€ 1.50
35
0831012055
ref: 35
E39
NUT ,5MM
0831012055
€ 2.50
36
3597728A00
ref: 36
E39
SPACER
€ 0.00
37
3597828A00
ref: 37
E39
SPACER
€ 0.00
38
3599728A00
ref: 38
E39
WASHER
€ 0.00
39
3599828A00
ref: 39
E39
SPACER, INNER LH
€ 0.00
