FUEL COCK

GSX750R 1986 (G) GENERAL EXPORT (E01)

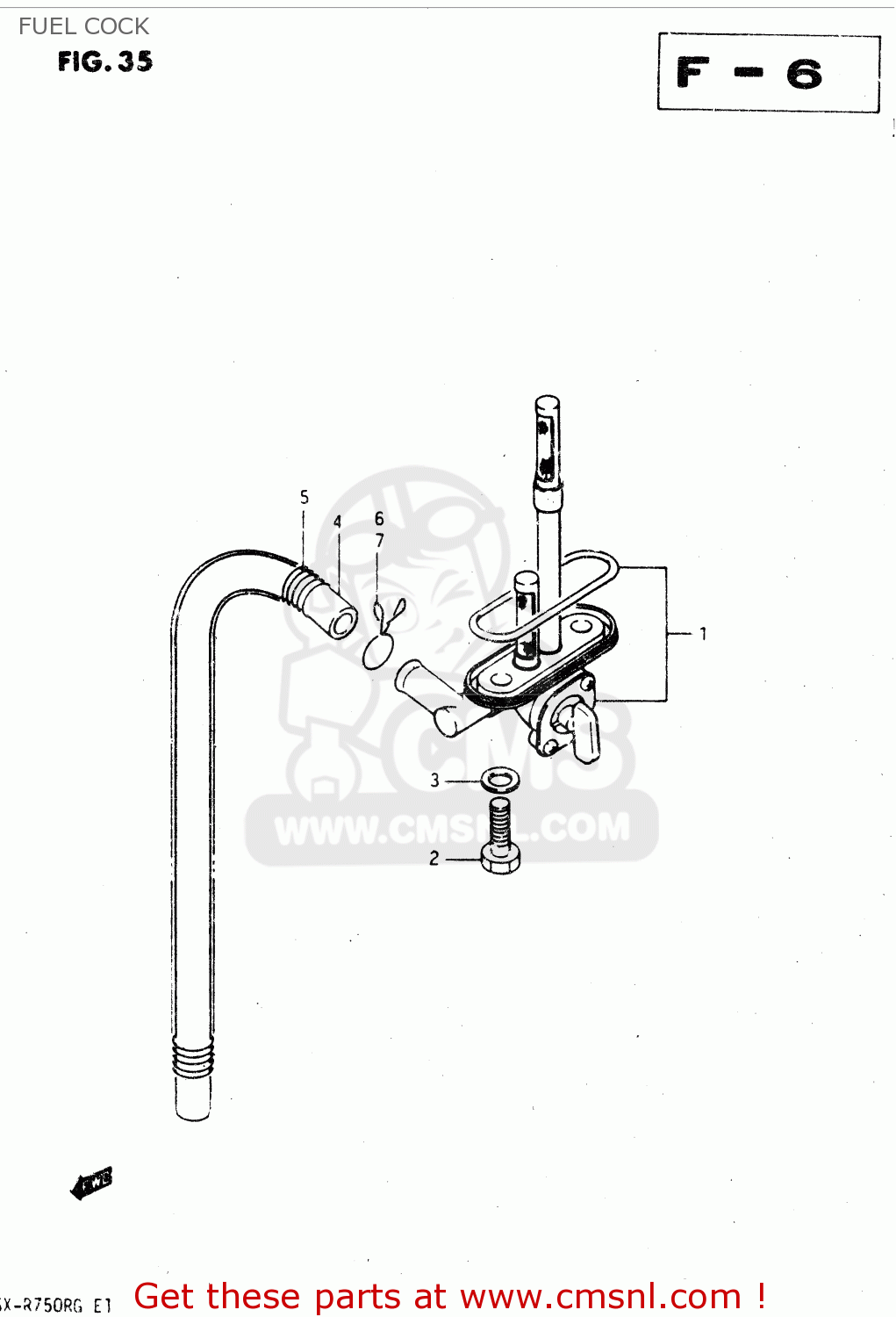

Fuel cock diagram GSX750R 1986 (G) GENERAL EXPORT (E01)

FUEL COCK GSX750R 1986 (G) GENERAL EXPORT (E01)

FUEL COCK GSX750R 1986 (G) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

4430027A00
ref: 1

COCK ASSY,FUEL

€ 94.50

2

0912606006
ref: 2

SCREW(6X20)

€ 2.00

3

0916806010
ref: 3

GASKET

€ 2.00

4

0934307073
ref: 4

HOSE

€ 17.50

5

0944013020
ref: 5

SPRING

€ 14.50

6

0940111410
ref: 6

(CA) CLIP

€ 2.50

7

0940110402
ref: 7

CLIP

€ 7.00
