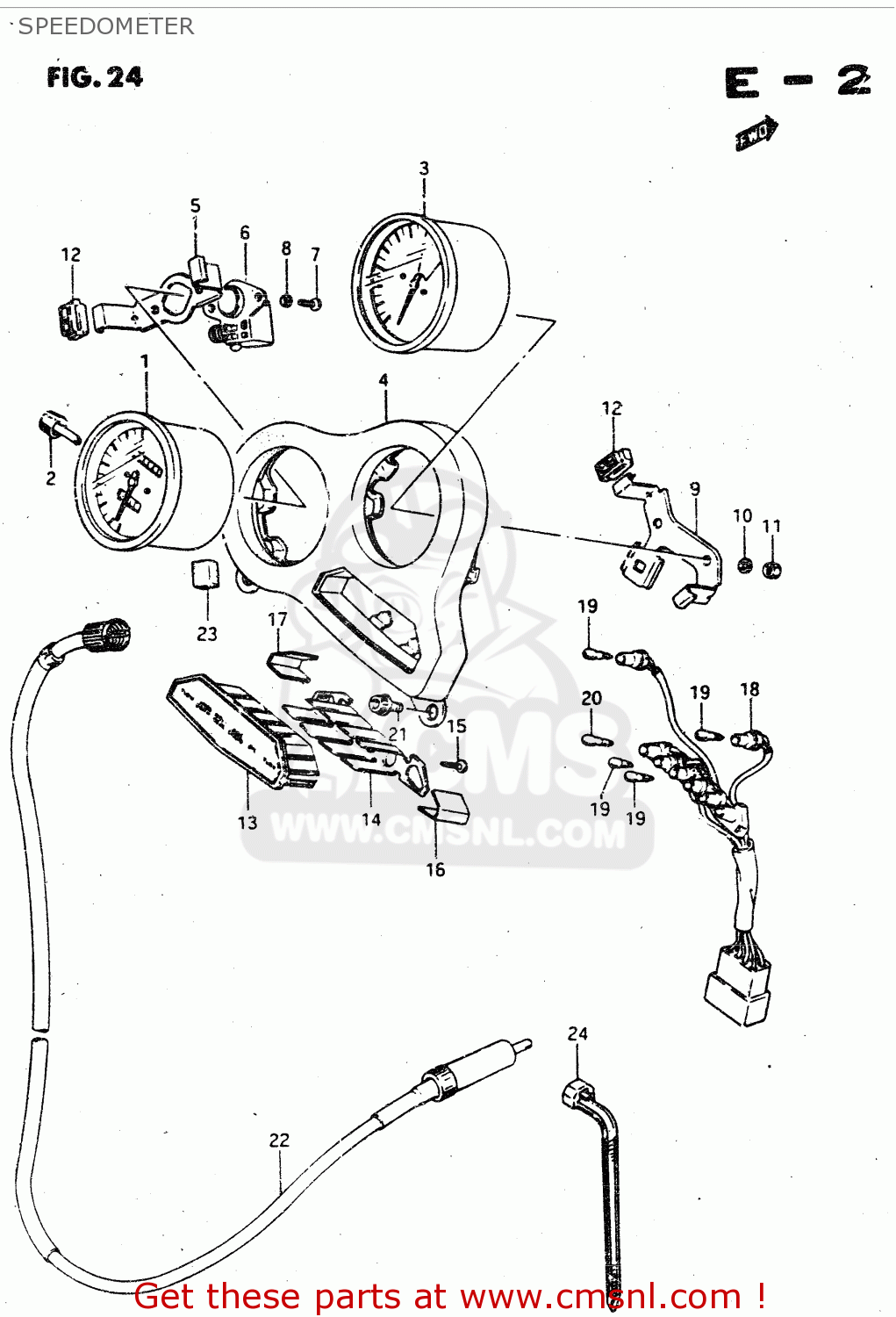

SPEEDOMETER

ref

part #

description

quantity

1-1

3411027A10
ref: 1-1

SPEEDOMETER (KILO)

€ 361.50

1-2

3411027A20
ref: 1-2

SPEEDOMETER (MILE/KILO)

€ 360.00

2

3412427A00
ref: 2

KNOB,TRIP

€ 7.50

3-1

3421027A00
ref: 3-1

TACHOMETER

€ 458.50

3-2

3421027A60
ref: 3-2
E18

TACHOMETER (R/MIN)

€ 458.50

3-3

3421027A80
ref: 3-3
E24

TACHMETER (RPM)

€ 458.50

4

3495027A11
ref: 4

BRACKET, METER

€ 61.50

5

3411127A00
ref: 5

PLATE,SPEEDOMETER

€ 19.00

6

3413127A00
ref: 6

BOX,METER GEAR

€ 116.50

7

0211204105
ref: 7

SCREW

€ 2.00

8

0832121045
ref: 8

LOCK WASHER

€ 2.00

9

3421127A00
ref: 9

PLATE,TACHOMETER

€ 24.50

10

3418127A00
ref: 10

WASHER

€ 2.00

11

0831021035
ref: 11

NUT

€ 1.50

12

3418927A00
ref: 12

CUSHION

€ 6.00

13-1

3638127A10
ref: 13-1

CASE,PILOT LAMP

€ 45.00

13-2

3638127A40
ref: 13-2
E2,E15,E16,E18,E22

CASE, PILOT LAMP

€ 45.00

13-3

3638127A70
ref: 13-3
E17

CASE, PILOT LAMP

€ 0.00

14

3638227A00
ref: 14

PLATE,PILOT LAMP

€ 18.50

15

3638727A00
ref: 15

SCREW

€ 2.00

16

3638327A00
ref: 16

PLATE,TURN,R

€ 14.50

17

3638427A00
ref: 17

PLATE,TURN,L

€ 9.50

18-1

3417027A10
ref: 18-1

SOCKET

€ 92.50

18-2

3417027A40
ref: 18-2
E2,E15,E16,E18,E22

SOCKET, METER

€ 92.50

19-1

0947112085
ref: 19-1

BULB(12V3W,WB371,T7)

€ 3.00

19-2

0947112085
ref: 19-2
E2,E15,E16,E10,E22

BULB(12V3W,WB371,T7)

€ 3.00

20

0947112100
ref: 20

BULB(12V1.7W,WB372,T7)

€ 2.00

21

0712006125
ref: 21

BOLT

€ 3.50

22

3491027A01
ref: 22

CABLE ASSEMBLY,SPEEDOMETER

€ 25.50

23

3419127A00
ref: 23

CUSHION,METER

€ 2.00

24

0940711401
ref: 24

CLAMP(L:95)

€ 2.50
