REAR CALIPER
GSX750R 1986 (G) GENERAL EXPORT (E01)

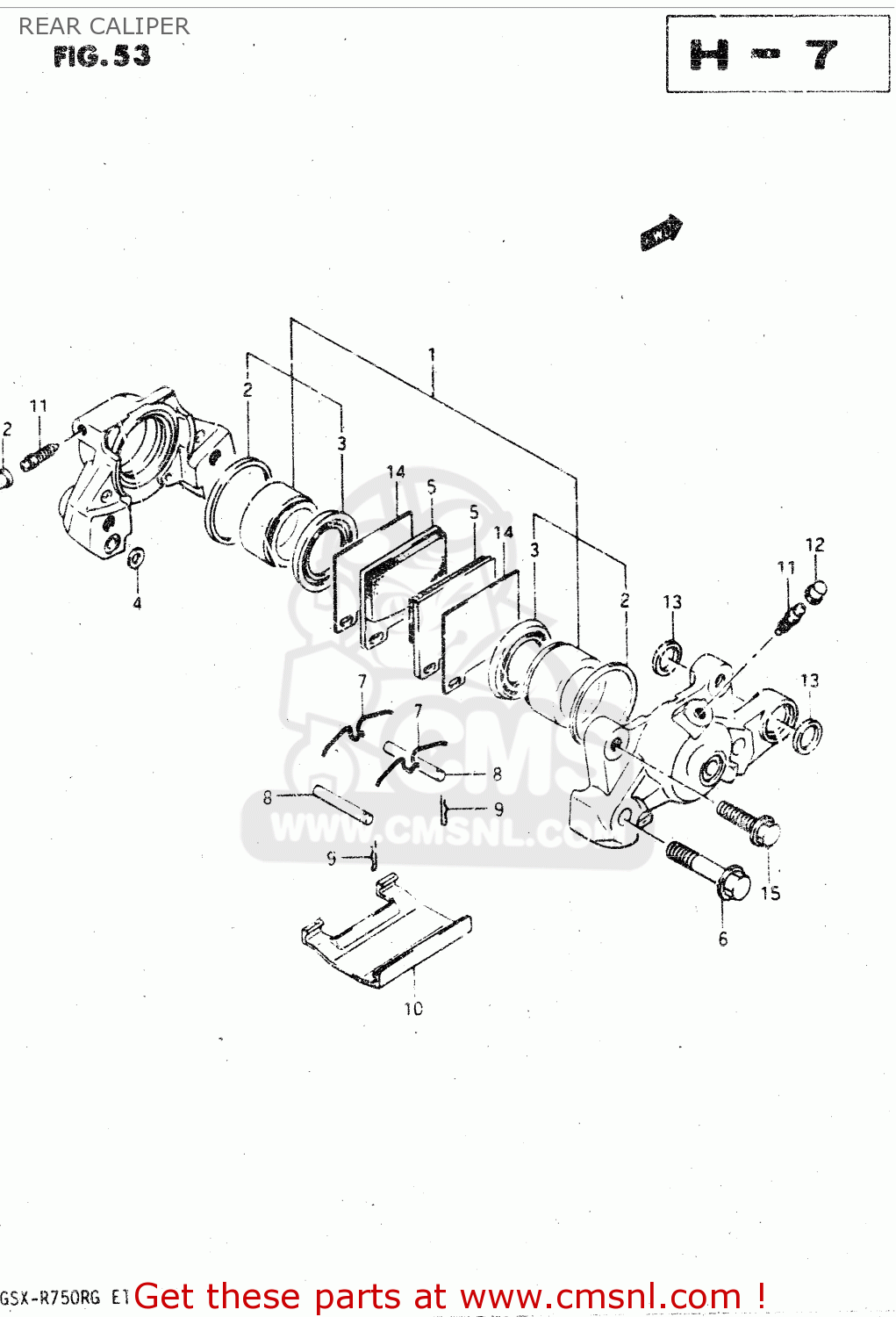

Rear caliper diagram GSX750R 1986 (G) GENERAL EXPORT (E01)
REAR CALIPER GSX750R 1986 (G) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
0
6910027A11
ref: 0
CALIPER ASSEMBLY,REAR
€ 769.00
1
6910027820
ref: 1
PISTON SET
€ 192.50
2
5910718410
ref: 2
SEAL,PISTON
€ 17.00
3
5910816700
ref: 3
BOOT
€ 16.50
4
6910734280
ref: 4
SEAL
€ 0.00
5
6913016740
ref: 5
PAD,BRAKE
€ 49.50
6
5914516700
ref: 6
BOLT,HOUSING
€ 8.00
7
5914316700
ref: 7
SPRING
€ 7.50
8
6914145000
ref: 8
PIN,PAD
€ 6.50
9
6914245000
ref: 9
CLIP,PAD PIN
€ 4.50
10
5915116700
ref: 10
COVER,CALIPER
€ 13.50
11
5912118410
ref: 11
BLEEDER
€ 8.00
12
5912218410
ref: 12
CAP,BREATHER
€ 6.00
13
6264704A00
ref: 13
SEAL,RR CUSHION ROD LWR
€ 4.50
14
5937133410
ref: 14
SHIM,PAD
€ 15.00
15
0151708305
ref: 15
BOLT
€ 3.00
