STARTER CLUTCH

GSX750R 1986 (G) GENERAL EXPORT (E01)

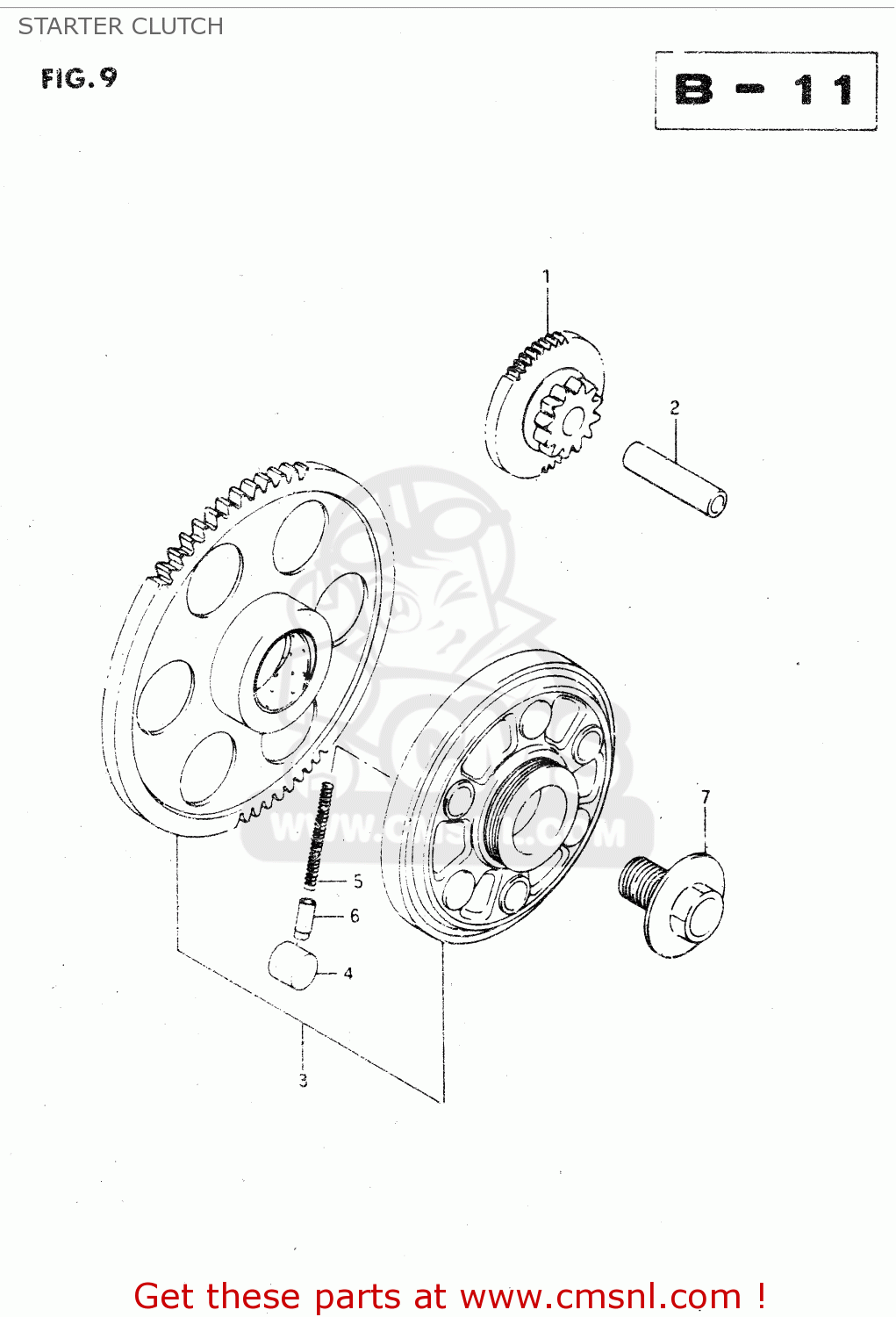

Starter clutch diagram GSX750R 1986 (G) GENERAL EXPORT (E01)

STARTER CLUTCH GSX750R 1986 (G) GENERAL EXPORT (E01)

STARTER CLUTCH GSX750R 1986 (G) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

1261127A01
ref: 1

GEAR,STARTER IDLE

€ 52.00

2

0920611014
ref: 2

PIN(7X11X42)

€ 8.00

3

1260027821
ref: 3

CLUTCH SET,STARTER

€ 205.00

4

0926114001
ref: 4

PIN(14X13)

€ 5.00

5

0944004015
ref: 5

SPRING

€ 2.50

6

1263331000
ref: 6

PIECE,PUSH

€ 9.00

7

0910314005
ref: 7

BOLT(14X21)

€ 17.00
