AIR CLEANER

DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

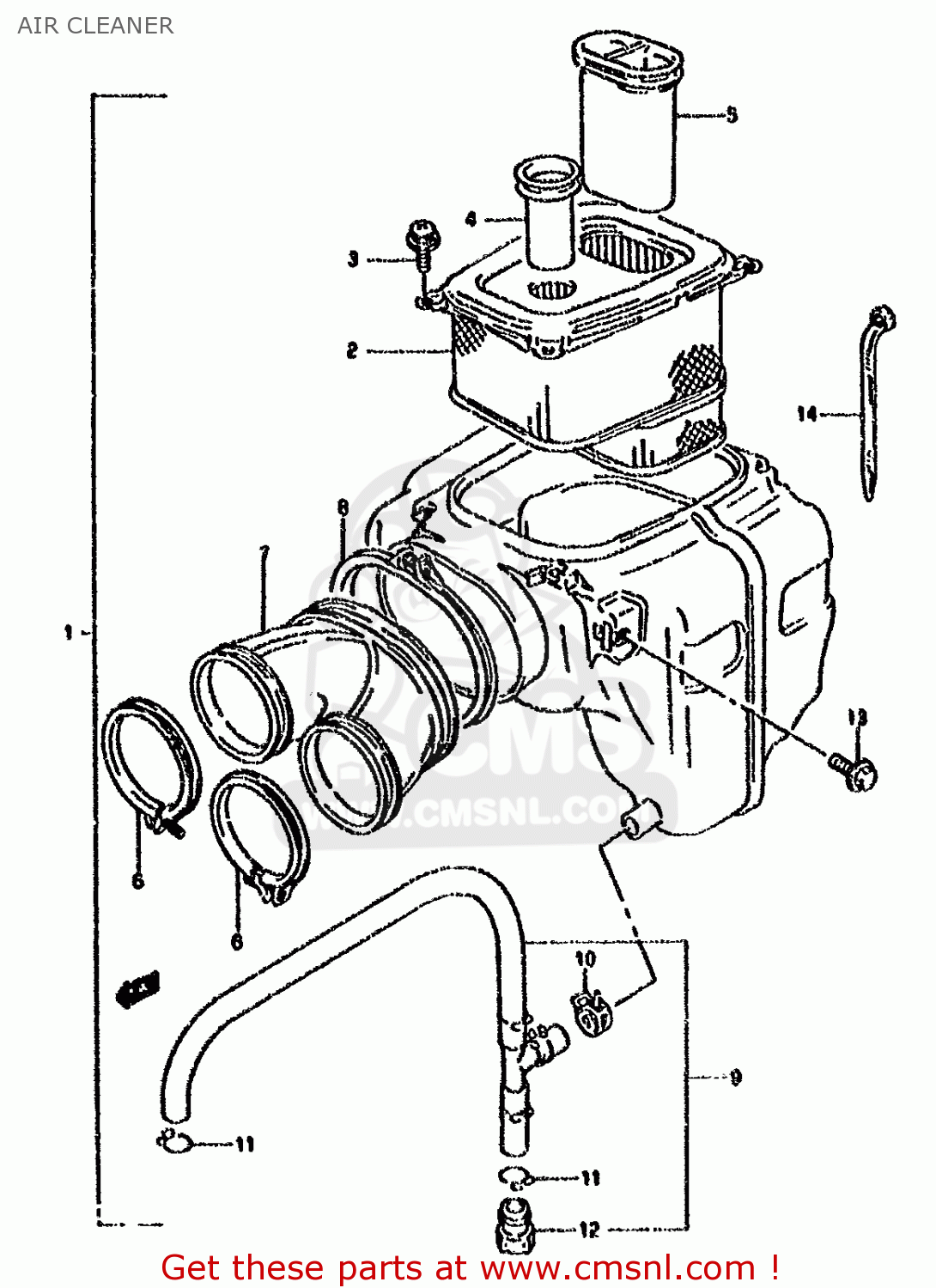

Air cleaner diagram DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

prices are in EUR

ref

part #

description

quantity

1370031D00
ref: 1

CLEANER ASSY,AIR

€ 279.00

1378031D00
ref: 2

FILTER ASSY

€ 44.50

0211275127
ref: 3

SCREW

€ 2.50

1389231D00
ref: 4

TUBE,INLET NO.2

€ 12.00

1389131D00
ref: 5

TUBE,INLET NO.1

€ 23.50

0940266208
ref: 6

CLAMP

€ 6.50

1388144B00
ref: 7

TUBE,AIR CLEANER OUTLET

€ 37.00

1382644B00
ref: 8

CLAMP

€ 7.50

1385031D00
ref: 9

TUBE, BREATHER

€ 27.00

0940114402
ref: 10

CLIP

€ 2.00

0940114301
ref: 11

CLIP

€ 2.00

1387700190
ref: 12

PLUG

€ 3.50

13-1

0911606003
ref: 13-1
MODEL M/N/P

BOLT

€ 2.00

13-2

0911606024
ref: 13-2
MODEL R/S/T

BOLT(6X16)

€ 2.00

14-1

0940718402
ref: 14-1
MODEL M/N/P/R/S

CLAMP(L:165)

€ 2.50

14-2

0940718403
ref: 14-2
MODEL T

CLAMP L:165

€ 2.50

14-3

0940725401
ref: 14-3

CLAMP(L:235)

€ 4.00

AIR CLEANER

all assemblies
