SEAT

DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

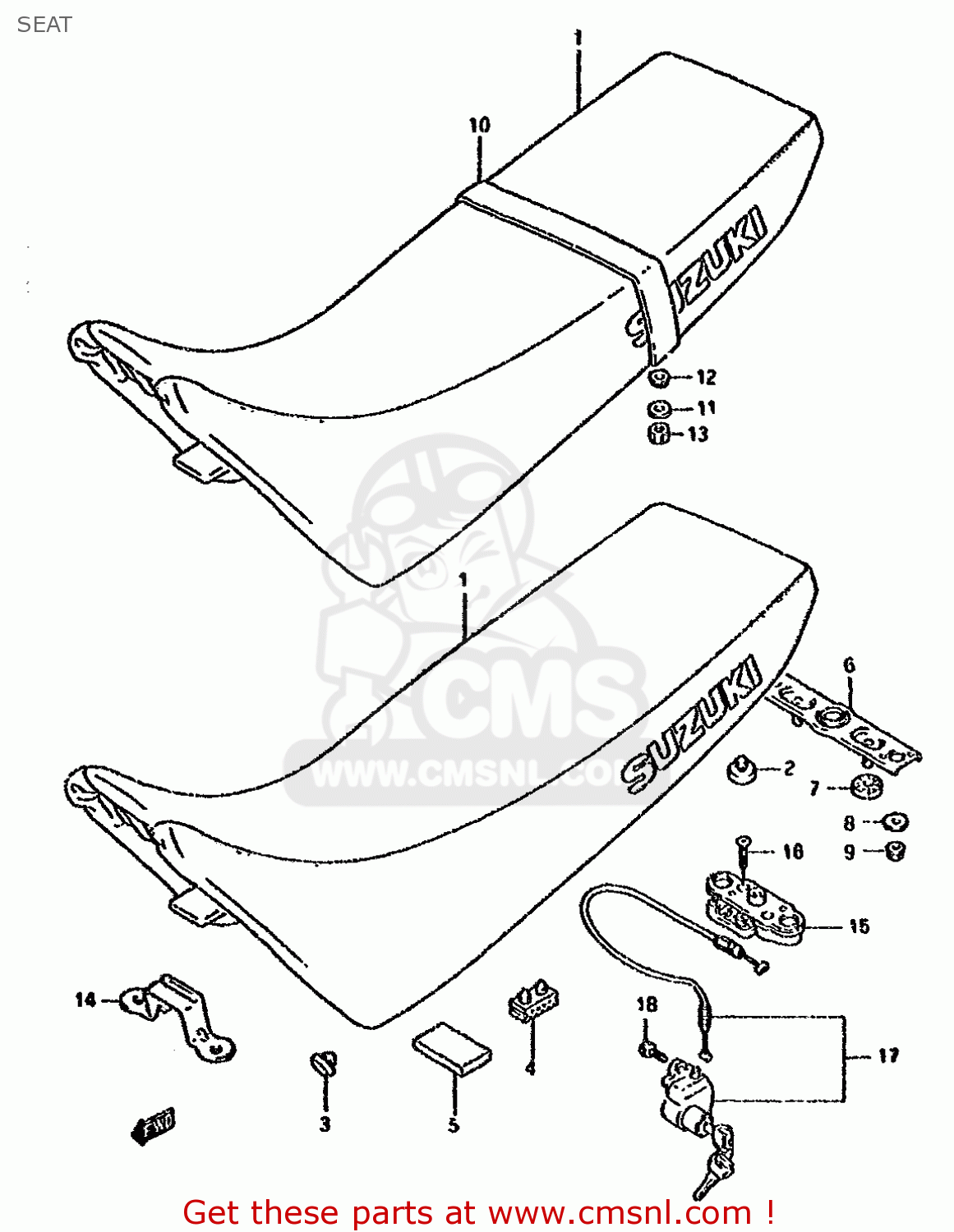

Seat diagram DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

SEAT DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
SEAT DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
SEAT DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
1-1
4510031D01J03
ref: 1-1
MODEL M/N FOR 22P,1M
SEAT SET
€ 508.00
1-2
4510031D01A4D
ref: 1-2
MODEL R/P/S FOR 33J
SEAT SET (33J)
€ 508.00
1-3
4510031D01J04
ref: 1-3
MODEL M/N/P/R FOR 12
SEAT SET
€ 293.50
1-4
4510031D01D4L
ref: 1-4
MODEL S FOR 1LE
SEAT SET
4510031D01D4L
€ 293.50
1-5
4510031D02A4D
ref: 1-5
MODEL T FOR 33J,Y98
SEAT SET
€ 508.00
1-6
4510031D11L47
ref: 1-6
MODEL N E1 FOR 1MW
SEAT SET
€ 0.00
1-7
4510031D11L48
ref: 1-7
MODEL N E1 FOR 12F
SEAT SET
€ 0.00
1-8
4510031D11B3Y
ref: 1-8
MODEL P E1 FOR 33J
SEAT SET
€ 0.00
1-9
4510031D11L47
ref: 1-9
MODEL P E1 FOR 12F
SEAT SET
€ 0.00
2
0932110012
ref: 2
CUSHION
0932110012
€ 3.00
3
0932910001
ref: 3
CUSHION
0932910001
€ 2.50
4
4514931300
ref: 4
CUSHION,SEAT(40X20X15)
4514931300
€ 2.00
5
4525502100
ref: 5
CUSHION,BATTERY
€ 3.00
6
4521022A00
ref: 6
STRIKER,SEAT LOCK
4521022A00
€ 80.50
7
4521313601
ref: 7
CUSHION,SEAT LOCK(10X22X6)
4521313601
€ 1.50
8
0821206201
ref: 8
WASHER
0821206201
€ 1.50
9
0831620063
ref: 9
NUT
0831620063
€ 2.00
10
4518031D106NF
ref: 10
E1
BAND,SEAT GRIP
€ 0.00
11
0916006006
ref: 11
E1
WASHER
0916006006
€ 2.00
12
0916906071
ref: 12
E1
WASHER
0916906071
€ 2.50
13
0831620063
ref: 13
E1
NUT
0831620063
€ 2.00
14
4511931D00
ref: 14
BRACKET,SEAT FR FOOK
4511931D00
€ 5.50
15
4522020A01
ref: 15
BRACKET,SEAT SUPPORT,RIGHT
4522020A01
€ 79.50
16
0212206303
ref: 16
SCREW
0212206303
€ 2.00
17
9570031850
ref: 17
LOCK SET, SEAT
€ 95.50
18
0910606075
ref: 18
BOLT(6X12)
0910606075
€ 2.50
