CYLINDER HEAD

DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

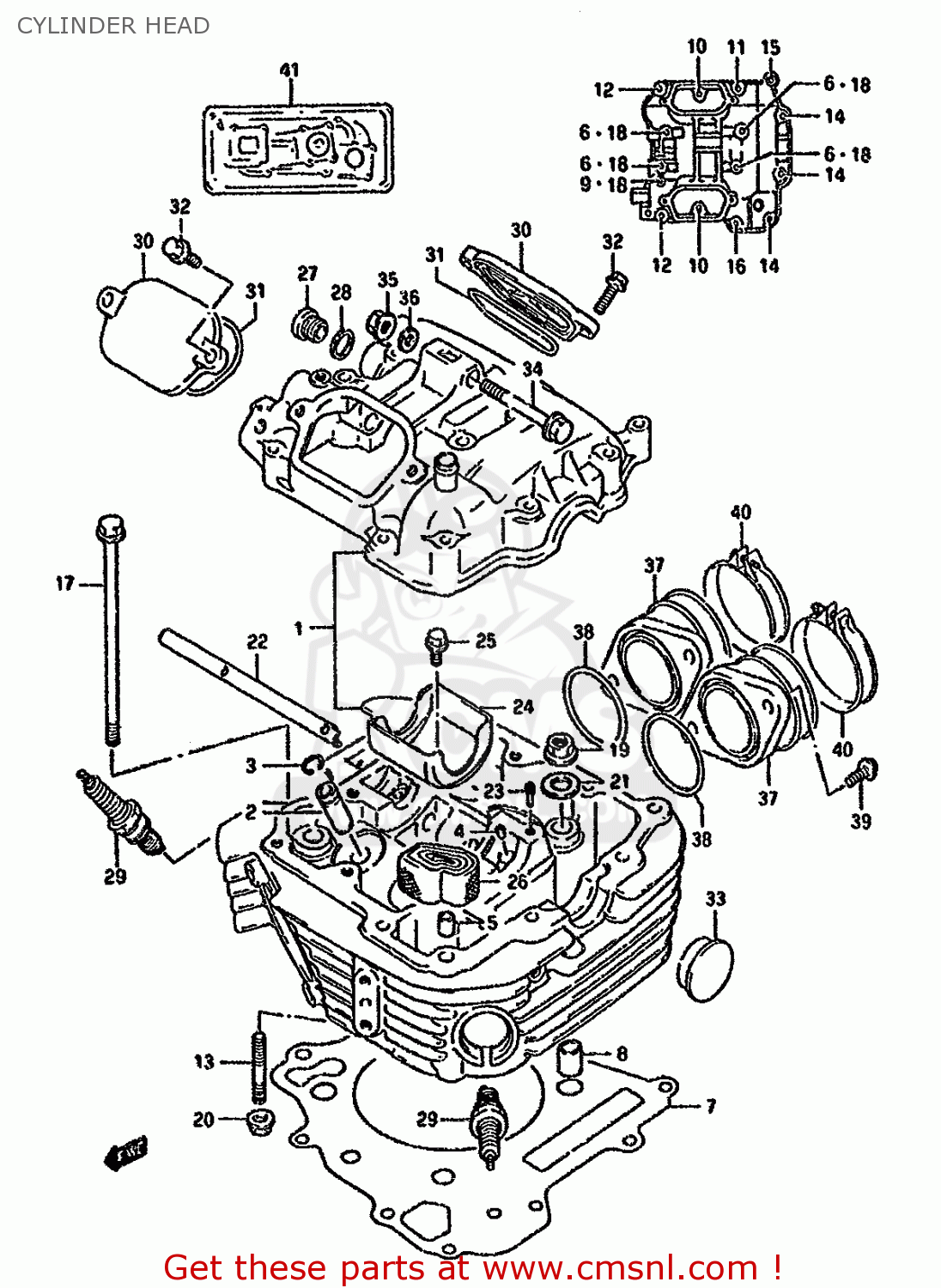

Cylinder head diagram DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

CYLINDER HEAD DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
CYLINDER HEAD DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
CYLINDER HEAD DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
1-1
1110031D00
ref: 1-1
HEAD ASSY, CYLINDER
1110031D00
€ 775.00
1-2
1110031D10
ref: 1-2
E18,E39
HEAD ASSY,CYLINDER
€ 763.50
2
1111544B70
ref: 2
GUIDE,VALVE
1111544B70
€ 19.00
3
0938110003
ref: 3
RING,SNAP
0938110003
€ 2.50
4
1118043410
ref: 4
JET,OIL GALLERY
1118043410
€ 10.50
5
0920608001
ref: 5
PIN(6.2X8X11)
0920608001
€ 2.00
6
0910306102
ref: 6
BOLT(6X55)
0910306102
€ 2.50
7
1114144B01
ref: 7
GASKET,CYLINDER HEAD (NAS)
1114144B01
€ 54.00
8
0421113189
ref: 8
-09206-13001
PIN
0421113189
€ 2.50
9-1
0155006167
ref: 9-1
MODEL M/N/P
BOLT
0155006167
€ 1.50
9-2
0155006163
ref: 9-2
MODEL R/S/T
BOLT
0155006163
€ 2.50
10-1
0155006257
ref: 10-1
MODEL M/N/P
BOLT
0155006257
€ 2.50
10-2
0155006253
ref: 10-2
MODEL R/S/T
BOLT
0155006253
€ 2.50
11-1
0155006307
ref: 11-1
MODEL M/N/P
BOLT
0155006307
€ 2.00
11-2
0155006303
ref: 11-2
MODEL R/S/T
BOLT
0155006303
€ 2.50
12-1
0155006357
ref: 12-1
MODEL M/N/P
BOLT
0155006357
€ 2.50
12-2
0155006353
ref: 12-2
MODEL R/S/T
BOLT
0155006353
€ 2.50
13
0910808206
ref: 13
BOLT,STUD(8X31)
0910808206
€ 3.50
14
0910306033
ref: 14
BOLT(6X125)
0910306033
€ 3.50
15
0910306052
ref: 15
BOLT(6X115)
0910306052
€ 5.00
16
0910306067
ref: 16
BOLT(6X105)
0910306067
€ 3.50
17
0910308224
ref: 17
BOLT(8X155)
0910308224
€ 10.00
18
0916806023
ref: 18
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
19-1
0831610107
ref: 19-1
MODEL M/N/P
NUT
0831610107
€ 2.00
19-2
0831610103
ref: 19-2
MODEL R/S/T
NUT
0831610103
€ 2.00
20-1
0831610087
ref: 20-1
MODEL M/N/P
NUT
0831610087
€ 2.50
20-2
0831610083
ref: 20-2
MODEL R/S/T
NUT
0831610083
€ 3.00
21-1
0916010039
ref: 21-1
MODEL M/N/P/R/S
WASHER(10.5X22X2.3)
0916010039
€ 2.50
21-2
0916010060
ref: 21-2
MODEL T
WASHER (10.5X22X2.3)
0916010060
€ 2.50
22
1113131D00
ref: 22
PIPE,CYLINDER HEAD OIL
1113131D00
€ 17.60
23
0913406012
ref: 23
SCREW (L:19.5)
0913406012
€ 3.00
24
1113544B00
ref: 24
PLATE, OIL CHAMBER
€ 8.50
25-1
0155006107
ref: 25-1
MODEL M/N/P
BOLT
0155006107
€ 2.50
25-2
0155006103
ref: 25-2
MODEL R/S/T
BOLT
0155006103
€ 2.50
26
1118644B01
ref: 26
SEPERATOR,OIL
1118644B01
€ 8.50
27
0924814005
ref: 27
PLUG,14X12
0924814005
€ 5.00
28
0916814002
ref: 28
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
29-1
0948200330
ref: 29-1
PLUG,SPARK(DPR9EA-9)
0948200330
€ 4.00
29-2
0948200334
ref: 29-2
OPT
PLUG,SPARK(DPR8EA-9)
€ 4.00
30
1117544B00
ref: 30
CAP,INSPECTION
1117544B00
€ 14.50
31
1117744B00
ref: 31
O-RING,INSPECTION CAP
1117744B00
€ 6.00
32-1
0155006207
ref: 32-1
MODEL M/N/P
BOLT
0155006207
€ 2.50
32-2
0155006203
ref: 32-2
MODEL R/S/T
BOLT
0155006203
€ 2.50
33
0924130004
ref: 33
PLUG(OD:30)
0924130004
€ 6.50
34-1
0910308267
ref: 34-1
MODEL M/N/P
BOLT,ENGINE MOUNTING (L:55)
€ 3.50
34-2
0910308332
ref: 34-2
MODEL R/S/T
BOLT(8X53)
0910308332
€ 3.50
35
0831931085
ref: 35
NUT
€ 2.50
36
0832101083
ref: 36
LOCK WASHER
0832101083
€ 2.50
37
1311044B00
ref: 37
PIPECOMP,INT
€ 36.50
38
0928040010
ref: 38
O RING(D:2.4,ID:39.7)
0928040010
€ 3.50
39
0211216203
ref: 39
SCREW
0211216203
€ 2.50
40
0940252208
ref: 40
CLAMP
0940252208
€ 5.50
41-1
1140144832
ref: 41-1
MODEL M/N/P/R/S
GASKET SET
€ 129.50
41-2
1140131810
ref: 41-2
MODEL T
GASKET SET
€ 104.50
