MAGNETO

DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

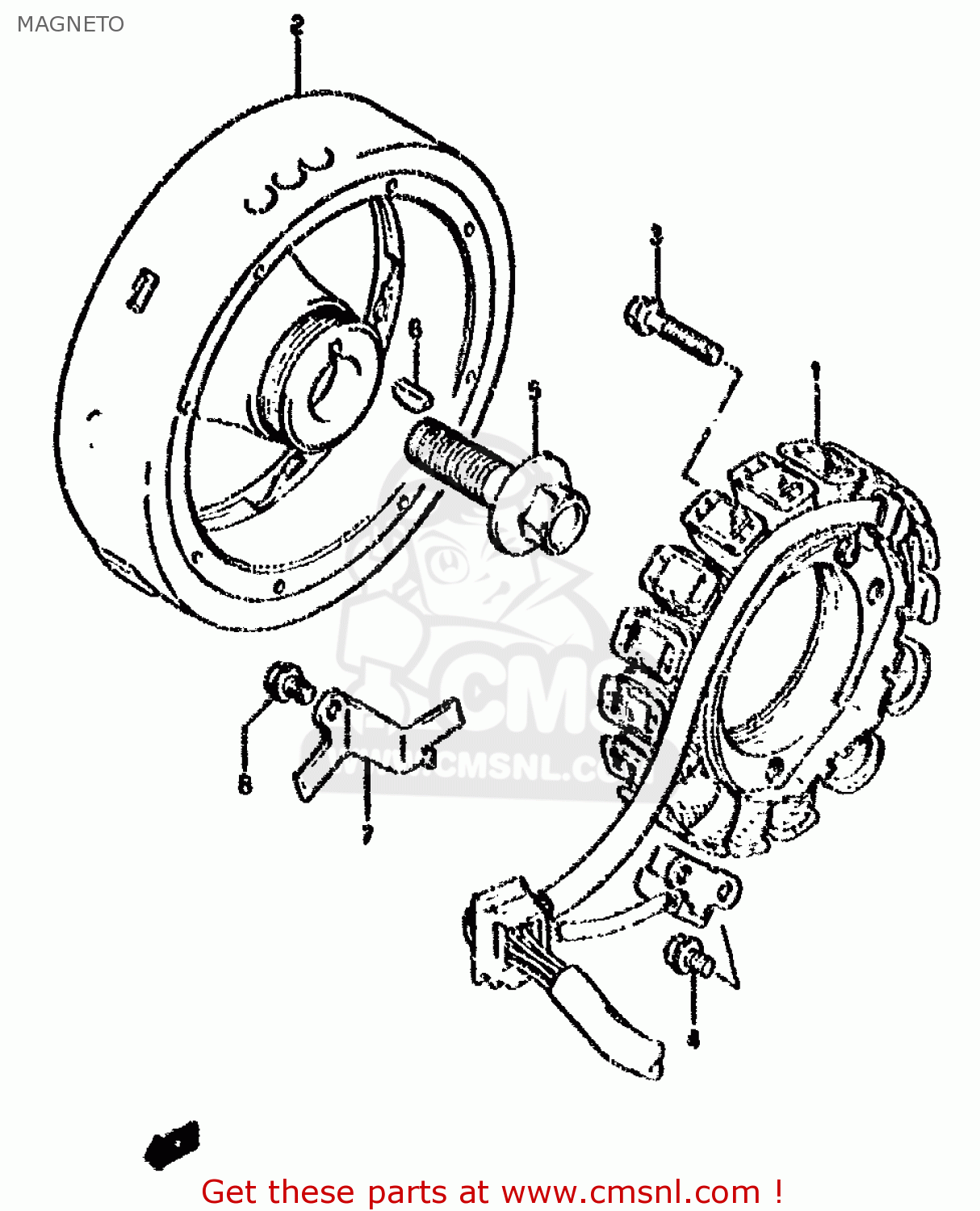

Magneto diagram DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

MAGNETO DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

MAGNETO DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

prices are in EUR

ref

part #

description

quantity

1

3210131D00
ref: 1

STARTER ASSY

€ 805.50

2

3210231D00
ref: 2

ROTOR

€ 805.00

3-1

0154706307
ref: 3-1
MODEL M/N/P/R

BOLT

€ 2.50

3-2

0713006303
ref: 3-2
MODEL S/T

BOLT

€ 3.00

4-1

0154705107
ref: 4-1
MODEL M/N/P

BOLT

€ 1.50

4-2

0154705103
ref: 4-2
MODEL R/S/T

BOLT

€ 2.50

5

0910314001
ref: 5

BOLT(14X43)

€ 7.00

6

0942005007
ref: 6

KEY

€ 3.00

7

3237144B00
ref: 7

CLAMP,MAGNETO LEAD WIRE

€ 3.00

8-1

0154705107
ref: 8-1
MODEL M/N/P

BOLT

€ 1.50

8-2

0154705103
ref: 8-2
MODEL R/S/T

BOLT

€ 2.50
