STARTER CLUTCH

DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

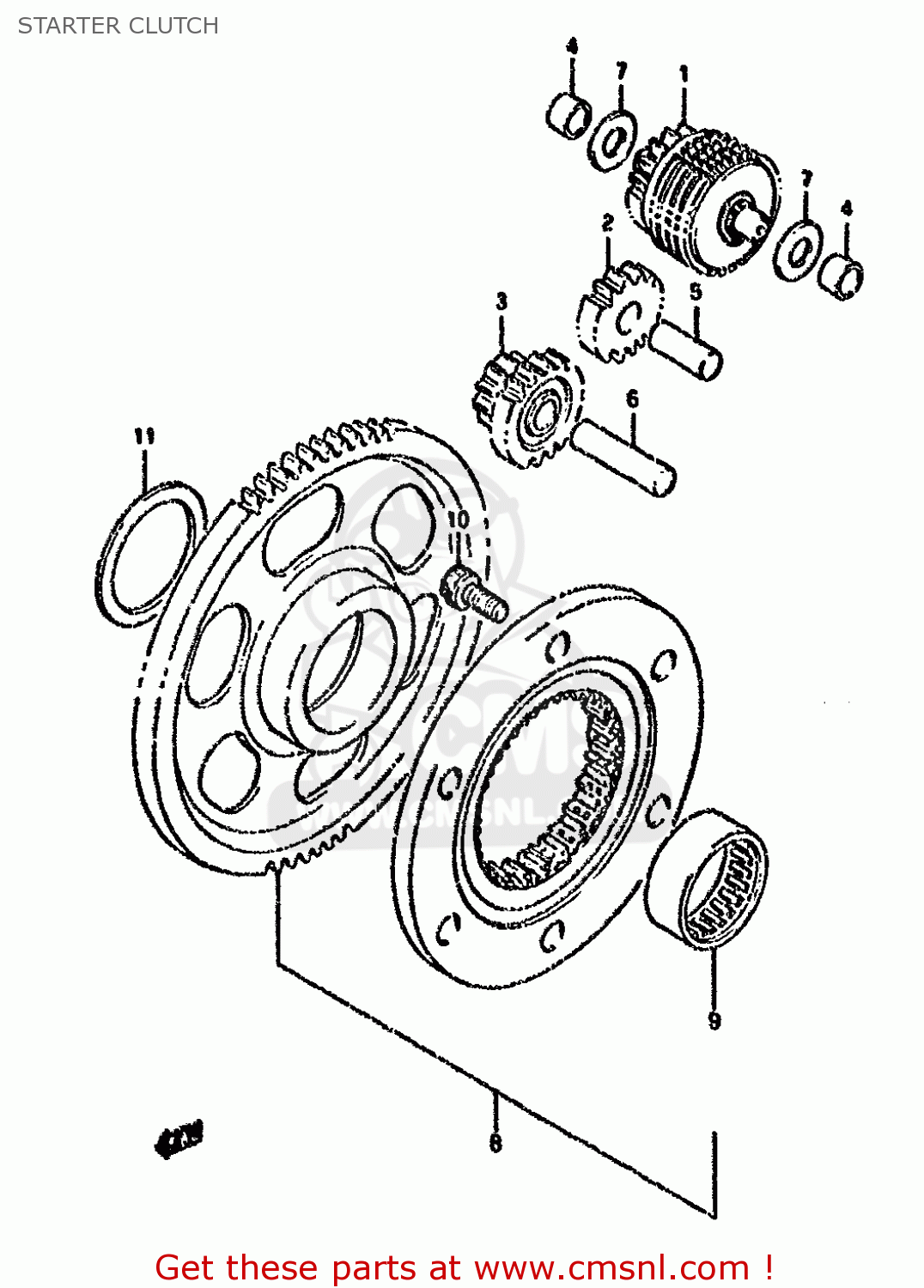

Starter clutch diagram DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

STARTER CLUTCH DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

STARTER CLUTCH DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

prices are in EUR

ref

part #

description

quantity

1

1260031D01
ref: 1

LIMITER ASSY,S

€ 182.00

2

1261231D00
ref: 2
NT:14

GEAR,STARTER IDLE NO.2

€ 34.50

3

1261331D00
ref: 3
NT:10/18

GEAR,STARTER IDLE NO.3

€ 58.50

4

1261831D01
ref: 4

BUSH,LIMITER GEAR SHAFT

€ 17.50

5

0920210006
ref: 5

PIN

€ 6.50

6

0920210010
ref: 6

PIN

€ 8.50

7

0821110221
ref: 7

WASHER

€ 2.50

8

1260044841
ref: 8

CLUTCH SET,STARTER

€ 337.50

9

0926335024
ref: 9

BEARING(35X43X18)

€ 31.50

10

0713008163
ref: 10
-09106-08043

BOLT

€ 3.00

11

0821140523
ref: 11

WASHER

€ 6.00
