TURN SIGNAL LAMP (MODEL T)

DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

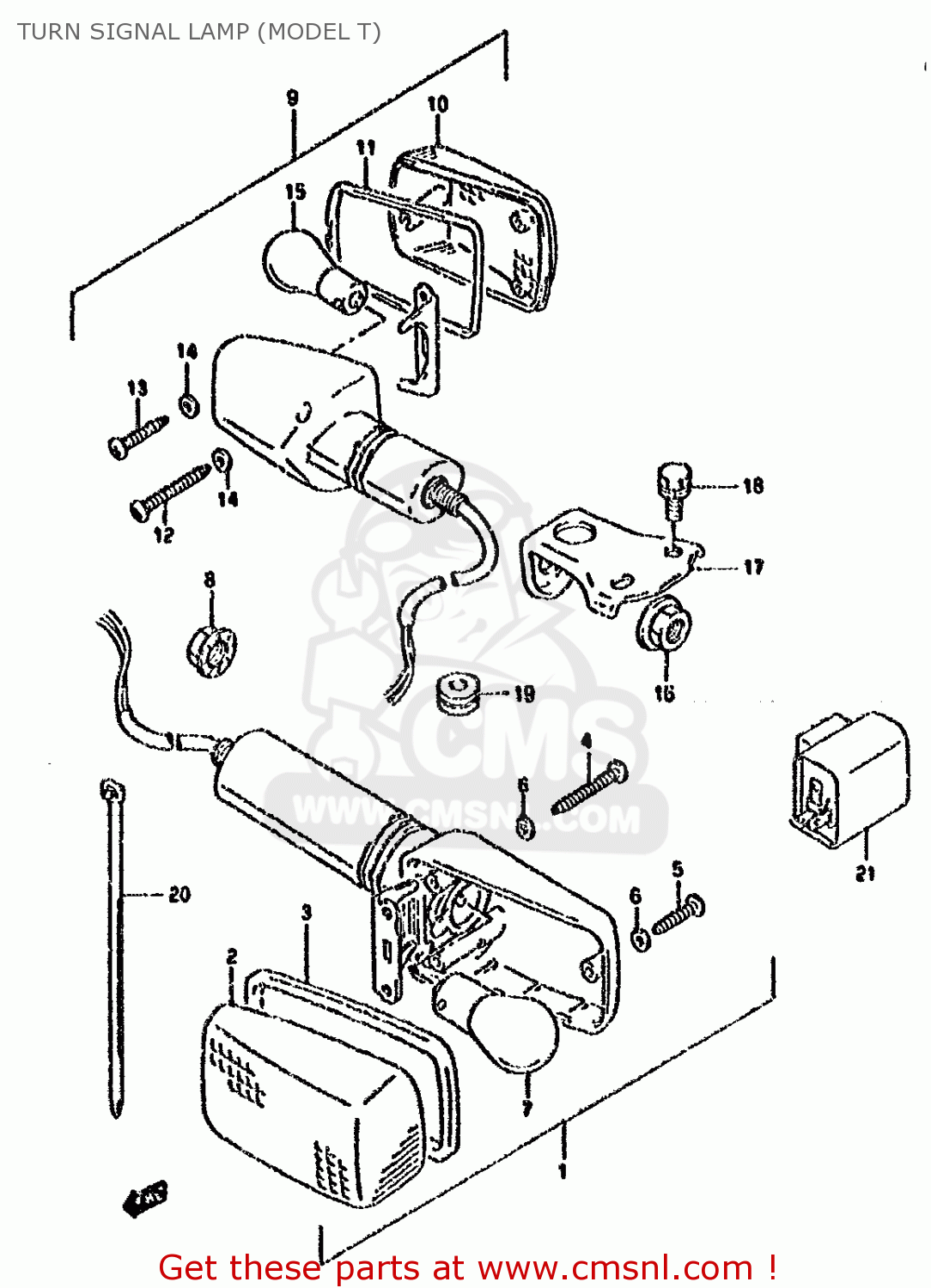

Turn signal lamp (model t) diagram DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

TURN SIGNAL LAMP (MODEL T) DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
TURN SIGNAL LAMP (MODEL T) DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
TURN SIGNAL LAMP (MODEL T) DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
1-1
3560129E30
ref: 1-1
LAMP ASSY,FR TURN SIGNAL
3560129E30
€ 57.50
1-2
3560129EC0
ref: 1-2
E18,E22,E34,E37
LAMP ASSY,FR TURN SIGNAL
3560129EC0
€ 78.00
2
3561217C20
ref: 2
LENS
3561217C20
€ 6.50
3
3561327A00
ref: 3
GASKET (NAS)
3561327A00
€ 3.00
4
3562327A00
ref: 4
SCREW(3X30)
3562327A00
€ 1.50
5
3572540511
ref: 5
SCREW
3572540511
€ 1.50
6
3562727A02
ref: 6
GASKET (NAS)
3562727A02
€ 1.50
7
0947112045
ref: 7
BULB(12V21W)
0947112045
€ 5.00
8
0831610103
ref: 8
NUT
0831610103
€ 2.00
9
3560329E90
ref: 9
LAMP ASSY,RR TURNSIGNAL,R
3560329E90
€ 62.00
10
3565217C20
ref: 10
LENS
3565217C20
€ 6.50
11
3561327A00
ref: 11
GASKET (NAS)
3561327A00
€ 3.00
12
3562327A00
ref: 12
SCREW(3X30)
3562327A00
€ 1.50
13
3572540511
ref: 13
SCREW
3572540511
€ 1.50
14
3562727A02
ref: 14
GASKET (NAS)
3562727A02
€ 1.50
15
0947112045
ref: 15
BULB(12V21W)
0947112045
€ 5.00
16
0831610103
ref: 16
NUT
0831610103
€ 2.00
17
3562131D00
ref: 17
BRACKET,RR TURNSIGNAL
3562131D00
€ 38.50
18
0157006103
ref: 18
BOLT
€ 2.50
19
0930805015
ref: 19
GROMMET
0930805015
€ 4.50
20
0940406429
ref: 20
CLAMP(L:45)
€ 2.50
21
3861045D01
ref: 21
RELAY ASSY,TURNSIGNAL LAMP
3861045D01
€ 68.50
22
0940406402
ref: 22
CLAMP
€ 2.50
23
3861045D01
ref: 23
RELAY ASSY,TURNSIGNAL LAMP
3861045D01
€ 68.50
21
0930805015
ref: 21
GROMMET
0930805015
€ 4.50
22
0940406401
ref: 22
CLAMP L:35
0940406401
€ 2.50
23-1
3861031310
ref: 23-1
MODEL M/N,-38610-31X
RELAY ASSEMBLY,TURN SIGNAL
€ 54.50
23-2
3861045091
ref: 23-2
MODEL M/N E22
RELAY ASSY,TUR
€ 67.50
23-3
3861045D01
ref: 23-3
MODEL P
RELAY ASSY,TURNSIGNAL LAMP
3861045D01
€ 68.50
