Buy Suzuki DR Parts Online


FUEL TANK

DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

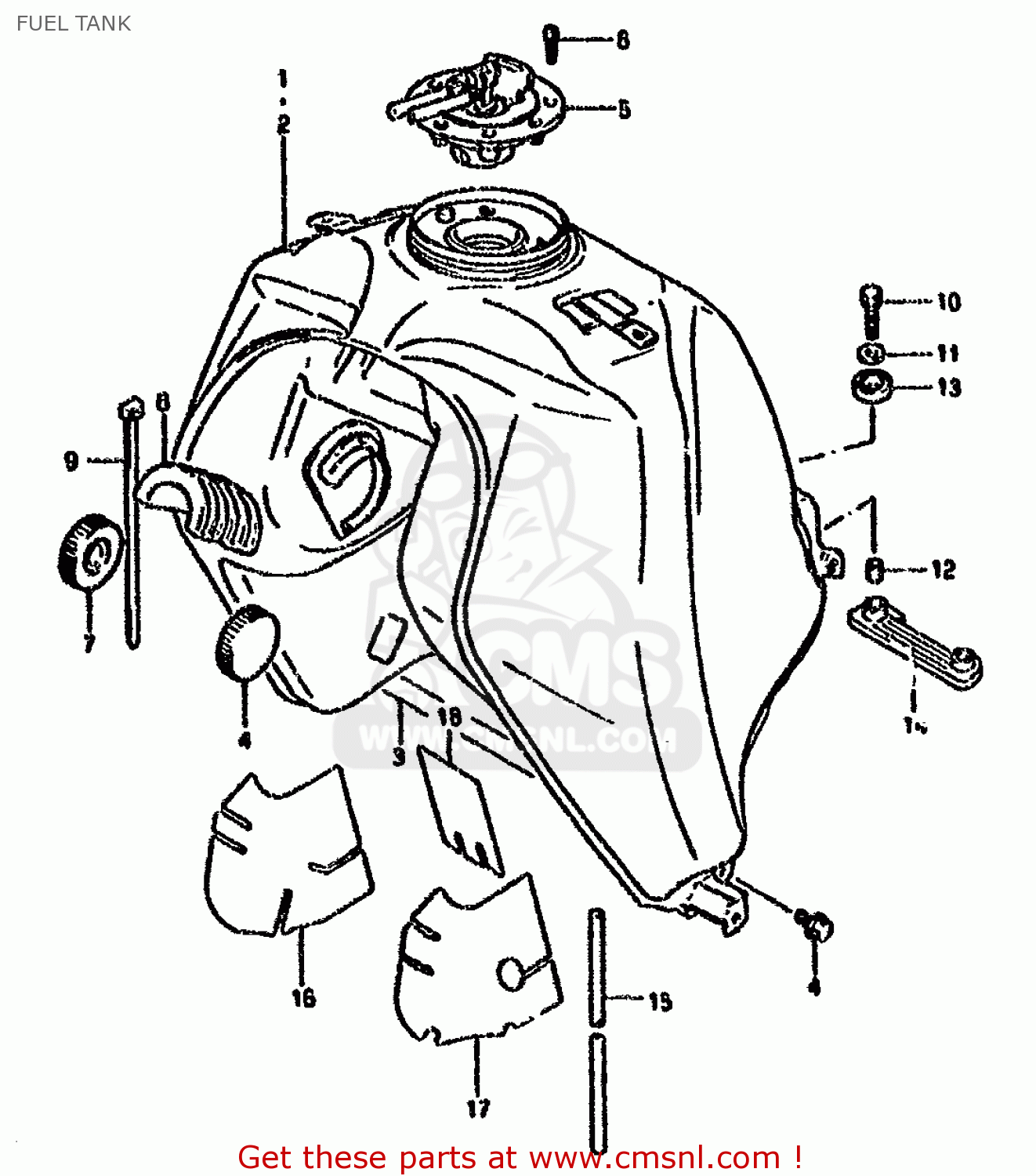

Fuel tank diagram DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

FUEL TANK DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
FUEL TANK DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
FUEL TANK DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
1-1
4411031D02019
ref: 1-1
MODEL M/N/P
TANK ASSY,FUEL (BLACK)
€ 1,148.50
1-2
4411031D12019
ref: 1-2
MODEL M/N/P E22
TANK ASSY,FUEL (BLACK)
€ 1,148.50
2-1
4411031D03019
ref: 2-1
MODEL R/S
TANK,FUEL BLACK
€ 1,148.50
2-2
4411031D13019
ref: 2-2
MODEL R/S E22
TANK,FUEL BLACK
€ 1,148.50
2-3
4411031D14019
ref: 2-3
MODEL T
TANK,FUEL BLACK
€ 1,148.50
3
4452031D00
ref: 3
MODEL R/S/T
TUBE, FUEL TANK
4452031D00
€ 45.50
4
0155008163
ref: 4
MODEL R/S/T
BOLT
0155008163
€ 3.00
5-1
4420101831
ref: 5-1
MODEL M/N/P/R
CAP SET,FUEL TANK
4420101831
€ 204.00
5-2
4420101832
ref: 5-2
MODEL S/T
CAP SET,FUEL TANK
4420101832
€ 204.00
6
0910605017
ref: 6
BOLT(5X20)
0910605017
€ 3.00
7
4451112D00
ref: 7
CUSHION,FUEL TANK FR
4451112D00
€ 5.50
8
4454131D00
ref: 8
CUSHION, UPPER
€ 8.00
9
0940725402
ref: 9
CLAMP(L:250)
0940725402
€ 4.50
10-1
0150008303
ref: 10-1
MODEL M/N/P/R
BOLT
€ 2.50
10-2
0156008303
ref: 10-2
MODEL S/T
BOLT, REAR
€ 0.00
11
0832201087
ref: 11
MODEL M/N/P/R
WASHER
0832201087
€ 2.00
12
0918008133
ref: 12
SPACER
0918008133
€ 3.50
13
4451331D00
ref: 13
CUSHION,FUEL TANK RR UPR
4451331D00
€ 3.50
14
4451231D00
ref: 14
CUSHION FUEL T
4451231D00
€ 10.00
15
093527010300B
ref: 15
L:2000-770
HOSE(7X10.2X2000)
093527010300B
€ 17.50
16
4426731D00
ref: 16
HEATSHIELD,FUEL TANK,R
4426731D00
€ 59.00
17
4426831D00
ref: 17
HEATSHIELD,FUEL TANK,L
€ 36.50
18
4426931D00
ref: 18
HEATSHIELD,FUEL TANK CTR
€ 16.00
