FRAME

DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

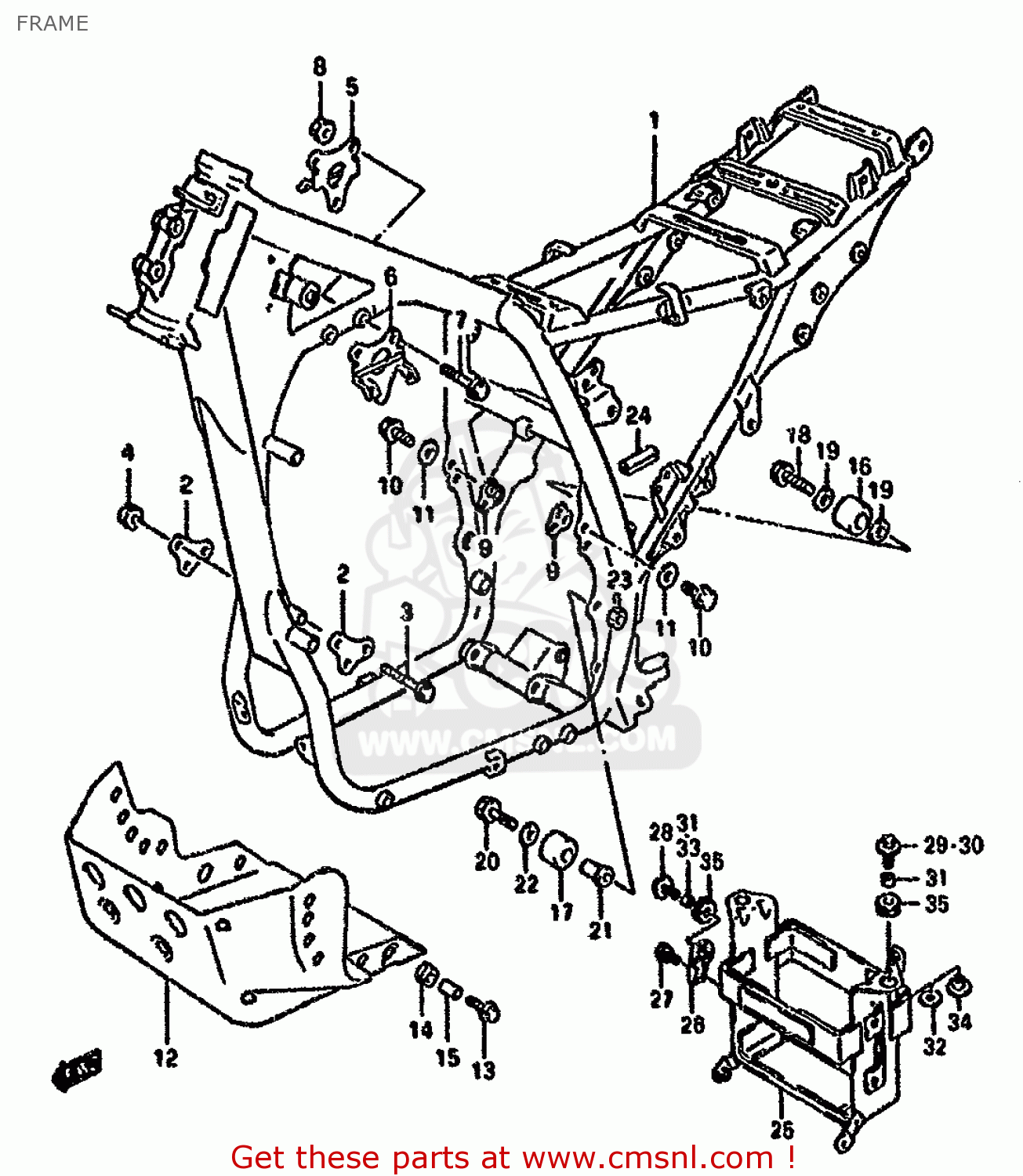

Frame diagram DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

FRAME DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
FRAME DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
FRAME DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
1-1
4110031D0028W
ref: 1-1
MODEL M/N
FRAME (WHITE)
€ 1,440.50
1-2
4110031D0128W
ref: 1-2
MODEL P
FRAME (WHITE)
€ 1,440.50
1-3
4110031D0124K
ref: 1-3
MODEL R/S/T
FRAME(CHARCOAL)
€ 1,277.50
2
4191144B00019
ref: 2
PLATE,ENG MTG FR
4191144B00019
€ 9.50
3
0910308293
ref: 3
BOLT(8X70)
0910308293
€ 4.50
4
0915908103
ref: 4
NUT
0915908103
€ 2.00
5
4189044B02019
ref: 5
PLATE,ENG MTG UPR,R
€ 19.00
6
4199044B02019
ref: 6
PLATE,ENG MTG UPR,L
€ 19.00
7-1
0910308307
ref: 7-1
MODEL M/N/P/R
BOLT
0910308307
€ 3.50
7-2
0910308332
ref: 7-2
MODEL S/T
BOLT(8X53)
0910308332
€ 3.50
8
0915908103
ref: 8
NUT
0915908103
€ 2.00
9
4195044B00019
ref: 9
PLATE, REAR (BLACK)
€ 9.50
10-1
0151708254
ref: 10-1
MODEL M/N/P
BOLT
0151708254
€ 2.50
10-2
0155008253
ref: 10-2
MODEL R/S/T
BOLT
0155008253
€ 2.50
11-1
0832131084
ref: 11-1
MODEL M/N/P
LOCK WASHER
€ 2.50
11-2
0832101083
ref: 11-2
MODEL R/S/T
LOCK WASHER
0832101083
€ 2.50
12
4251144B0030H
ref: 12
PROTECTOR,ENGINE
4251144B0030H
€ 258.50
13
0911606010
ref: 13
BOLT(6X20)
0911606010
€ 2.00
14
0932009016
ref: 14
CUSHION
0932009016
€ 2.50
15
0918006011
ref: 15
SPACER (6.1X9X9)
0918006011
€ 2.00
16
4391027C11
ref: 16
ROLLER,CHAIN
4391027C11
€ 36.50
17
4391101B10
ref: 17
ROLLER,CHAIN CONTROL
4391101B10
€ 14.50
18
0910308083
ref: 18
BOLT(8X41)
0910308083
€ 3.50
19
0821108121
ref: 19
WASHER
0821108121
€ 2.00
20
0910310197
ref: 20
BOLT(10X52)
0910310197
€ 5.00
21
4391644B00
ref: 21
SPACER,CHAIN ROLLER, LWR
4391644B00
€ 11.50
22
0821110221
ref: 22
WASHER
0821110221
€ 2.50
23
0831931105
ref: 23
NUT 10MM
€ 3.00
24
9463519C00
ref: 24
MOLDING
9463519C00
€ 6.00
25-1
4154031D00
ref: 25-1
MODEL M/N/P/R/S
HOLDER,BATTERY
€ 58.00
25-2
4154031D01
ref: 25-2
MODEL T
HOLDER, BATTERY
€ 58.00
26
4155031D00
ref: 26
PLATE, SIDE
€ 4.50
27-1
0157006107
ref: 27-1
MODEL M/N/P/R
BOLT
€ 2.50
27-2
0157006103
ref: 27-2
MODEL S/T
BOLT
€ 2.50
28
0911606011
ref: 28
MODEL M/N/P/R
BOLT 6X20
€ 2.00
29
0911606047
ref: 29
MODEL M/N/P/R
BOLT(6X25)
€ 2.00
30
0911606093
ref: 30
MODEL S/T
BOLT(6X25)
0911606093
€ 2.00
31
0918006038
ref: 31
MODEL M
SPACER(6.1X9X7.5)
0918006038
€ 2.00
32
0916006027
ref: 32
MODEL M
WASHER (6.5X20X1.2)
0916006027
€ 2.00
33
0918006038
ref: 33
MODEL N/P/R/S/T
SPACER(6.1X9X7.5)
0918006038
€ 2.00
34-1
4157019C00
ref: 34-1
MODEL N/P/R
PLATE,BATTERY HOLDER
€ 3.50
34-2
4157047D00
ref: 34-2
MODEL S/T
SPACER COMP,BATTERY
€ 3.00
35
0932008021
ref: 35
CUSHION
0932008021
€ 4.00
