FRONT FORK

DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

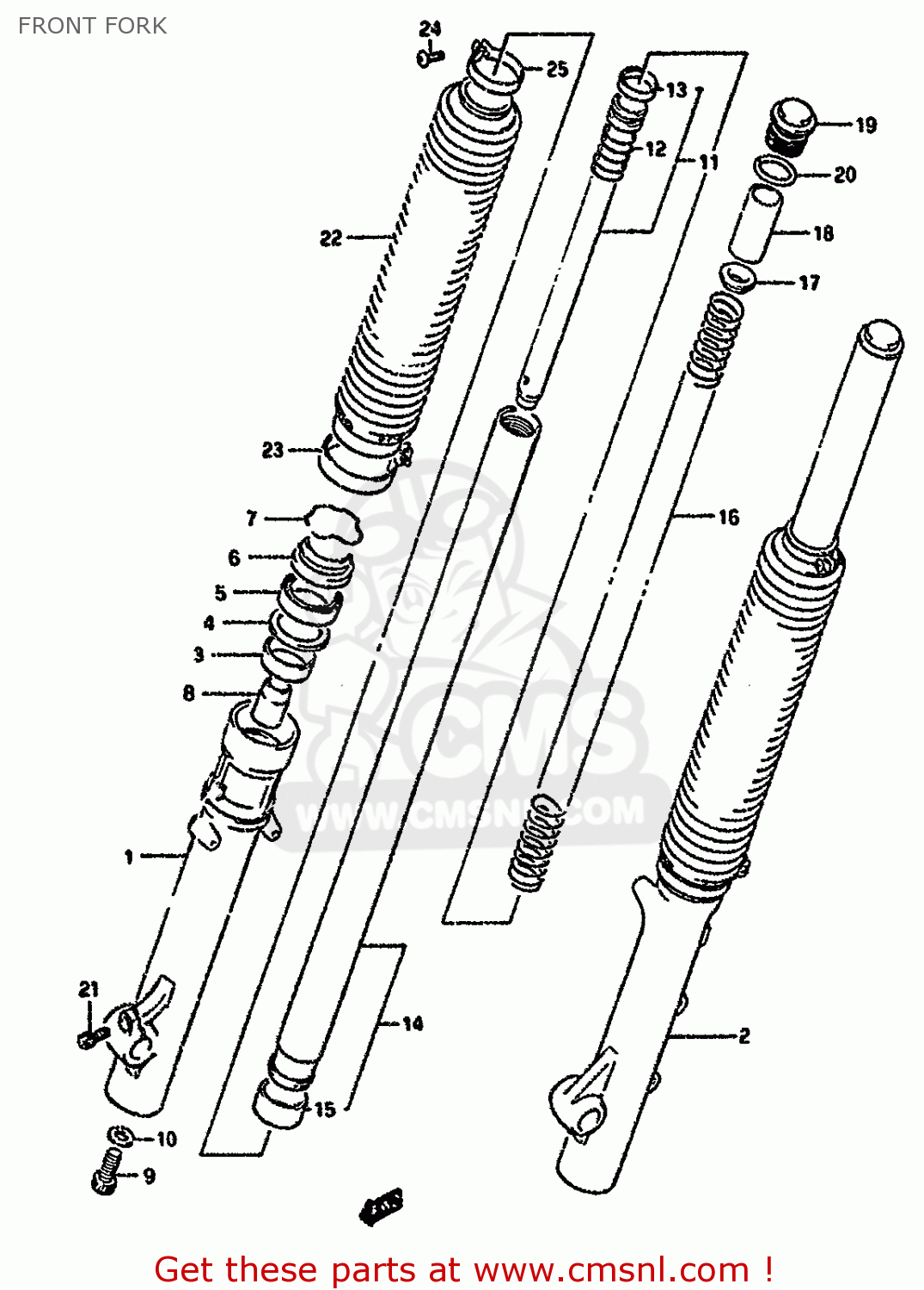

Front fork diagram DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

FRONT FORK DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
FRONT FORK DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
FRONT FORK DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
0
5110331D00
ref: 0
DAMPER ASSY, FRONT FORK RH
5110331D00
€ 502.00
0
5110431D00
ref: 0
DAMPER ASSY, FRONT FORK LH
5110431D00
€ 429.50
1
5113031D00
ref: 1
TUBE,OUTER,R
5113031D00
€ 377.50
2
5114031D00
ref: 2
TUBE, OUTER LH
5114031D00
€ 300.50
3
5116740C00
ref: 3
METAL,SLIDE
5116740C00
€ 13.50
4
5115814200
ref: 4
WASHER
5115814200
€ 4.00
5
5115314330
ref: 5
SEAL,OIL
5115314330
€ 11.00
6
5117314330
ref: 6
SEAL,DUST
5117314330
€ 9.50
7
5115614200
ref: 7
RING,STOPPER
5115614200
€ 4.50
8
5119506C00
ref: 8
PIECE,OIL LOCK
5119506C00
€ 13.00
9
5114714200
ref: 9
BOLT(14X25)
5114714200
€ 5.50
10
5114814200
ref: 10
GASKET (NAS)
5114814200
€ 2.00
11
5114631D00
ref: 11
CYLINDER
5114631D00
€ 27.50
12
5117714330
ref: 12
SPRING,REBOUND
5117714330
€ 5.50
13
5119631D00
ref: 13
RING,PISTON
5119631D00
€ 6.00
14
5112031D00
ref: 14
TUBE,INNER
5112031D00
€ 322.50
15
5112140C00
ref: 15
PISTON
5112140C00
€ 11.50
16
5117131D00
ref: 16
SPRING
5117131D00
€ 29.50
17
5117214200
ref: 17
GUIDE,SPRING
€ 5.00
18
5117614520
ref: 18
SPACER,FRONT FORK SPRING
€ 4.50
19
5135131D00
ref: 19
CAP,FORK
5135131D00
€ 32.50
20
5111714200
ref: 20
O RING
5111714200
€ 2.00
21
5113844B00
ref: 21
BOLT,SOCKET HEAD(8X22)
5113844B00
€ 4.00
22-1
5157101B2028V
ref: 22-1
MODEL M/N
BOOT (RED)
€ 69.50
22-2
5157101B2038K
ref: 22-2
MODEL M/N/P
BOOT
€ 45.50
22-3
5157101B201LU
ref: 22-3
MODEL P/R/S/T
BOOT
5157101B201LU
€ 56.50
23
5157631D00
ref: 23
BAND,BOOT LWR
5157631D00
€ 9.50
24
5157701B20
ref: 24
SCREW,BAND BOOT(3.5X10)
€ 2.50
25
5157501B20
ref: 25
BAND,BOOT UPR
€ 7.50
