REAR MASTER CYLINDER

DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

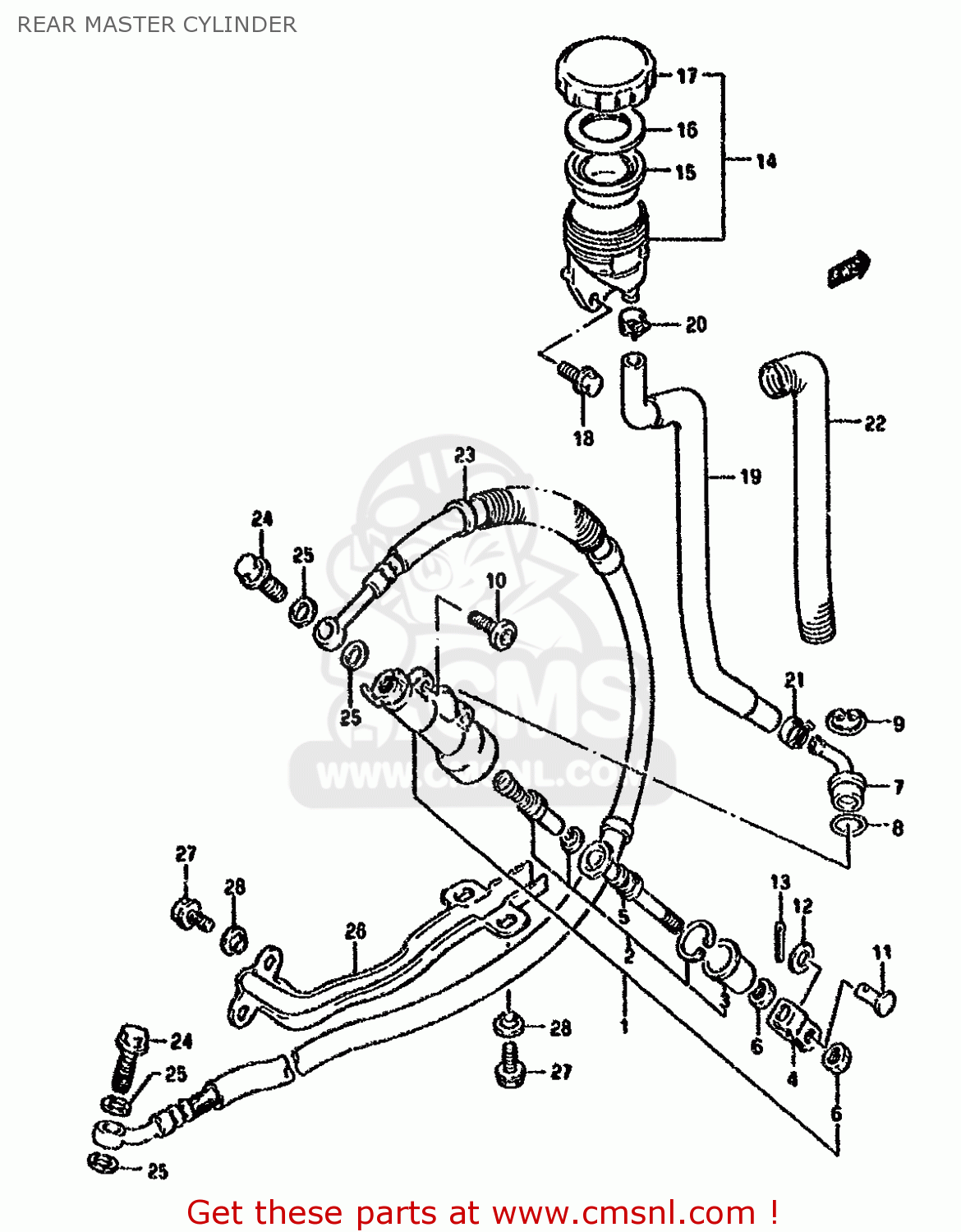

Rear master cylinder diagram DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

REAR MASTER CYLINDER DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
REAR MASTER CYLINDER DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
REAR MASTER CYLINDER DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
1
6960031D00
ref: 1
CYLINDER ASSY, REAR MASTER
€ 131.50
2
6960004820
ref: 2
PISTON/CUP SET
6960004820
€ 31.00
3
6969100A00
ref: 3
BOOT
6969100A00
€ 3.50
4
6969200B21
ref: 4
YOKE
6969200B21
€ 13.50
5
6967044B00
ref: 5
ROD,PUSH
€ 19.50
6
6969305A00
ref: 6
NUT
6969305A00
€ 1.50
7
6967200B20
ref: 7
CONNECTOR
6967200B20
€ 5.00
8
6968634200
ref: 8
O RING
6968634200
€ 3.50
9
6967400B20
ref: 9
CIRCLIP
6967400B20
€ 3.00
10-1
0910606064
ref: 10-1
MODEL M/N/P/R/S
BOLT(6X18)
0910606064
€ 6.00
10-2
0913906067
ref: 10-2
MODEL T
SCREW(6X16)
0913906067
€ 3.00
11
0920008048
ref: 11
PIN(8X20)
0920008048
€ 3.00
12
0916008074
ref: 12
WASHER(8.5X13X1.6)
0916008074
€ 2.50
13
0411120158
ref: 13
PIN
0411120158
€ 1.50
14
6974031D00
ref: 14
TANK ASSY,RR RESERVOIR
6974031D00
€ 27.50
15
5966718441
ref: 15
DIAPHRAGM
5966718441
€ 8.50
16
5966818441
ref: 16
PLATE,DIAPHRAGM
5966818441
€ 3.50
17
5966907D00
ref: 17
CAP
5966907D00
€ 16.50
18-1
0151706128
ref: 18-1
MODEL M/N/P
BOLT
€ 2.50
18-2
0155006123
ref: 18-2
MODEL R/S/T
BOLT
0155006123
€ 2.50
19
6973031D00
ref: 19
HOSE,RESERVOIR TANK
6973031D00
€ 24.00
20
0940113413
ref: 20
CLIP
€ 2.50
21-1
0940112402
ref: 21-1
MODEL M/N/P
CLAMP
€ 2.50
21-2
0940112404
ref: 21-2
MODEL R/S/T
CLIP
0940112404
€ 2.50
22
6973231D00
ref: 22
SHIELD, HOSE HEAT
€ 12.50
23-1
6948031D00
ref: 23-1
MODEL M/N
HOSE,REAR BRAKE
€ 127.00
23-2
6948031D01
ref: 23-2
MODEL P/R/S/T
HOSE,RR BRAKE
€ 127.00
24-1
0936010034
ref: 24-1
MODEL M/N/P
BOLT UNION
€ 5.00
24-2
0936010040
ref: 24-2
MODEL R/S/T
BOLT UNION
0936010040
€ 5.00
25
0916110009
ref: 25
WASHER(10X15X1.5)
0916110009
€ 2.00
26
6926144B00
ref: 26
PROTECTOR, BRAKE HOSE
€ 20.00
27
0910306083
ref: 27
BOLT 6X12
0910306083
€ 2.50
28
0916906037
ref: 28
WASHER
0916906037
€ 6.50
