CRANKCASE

DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

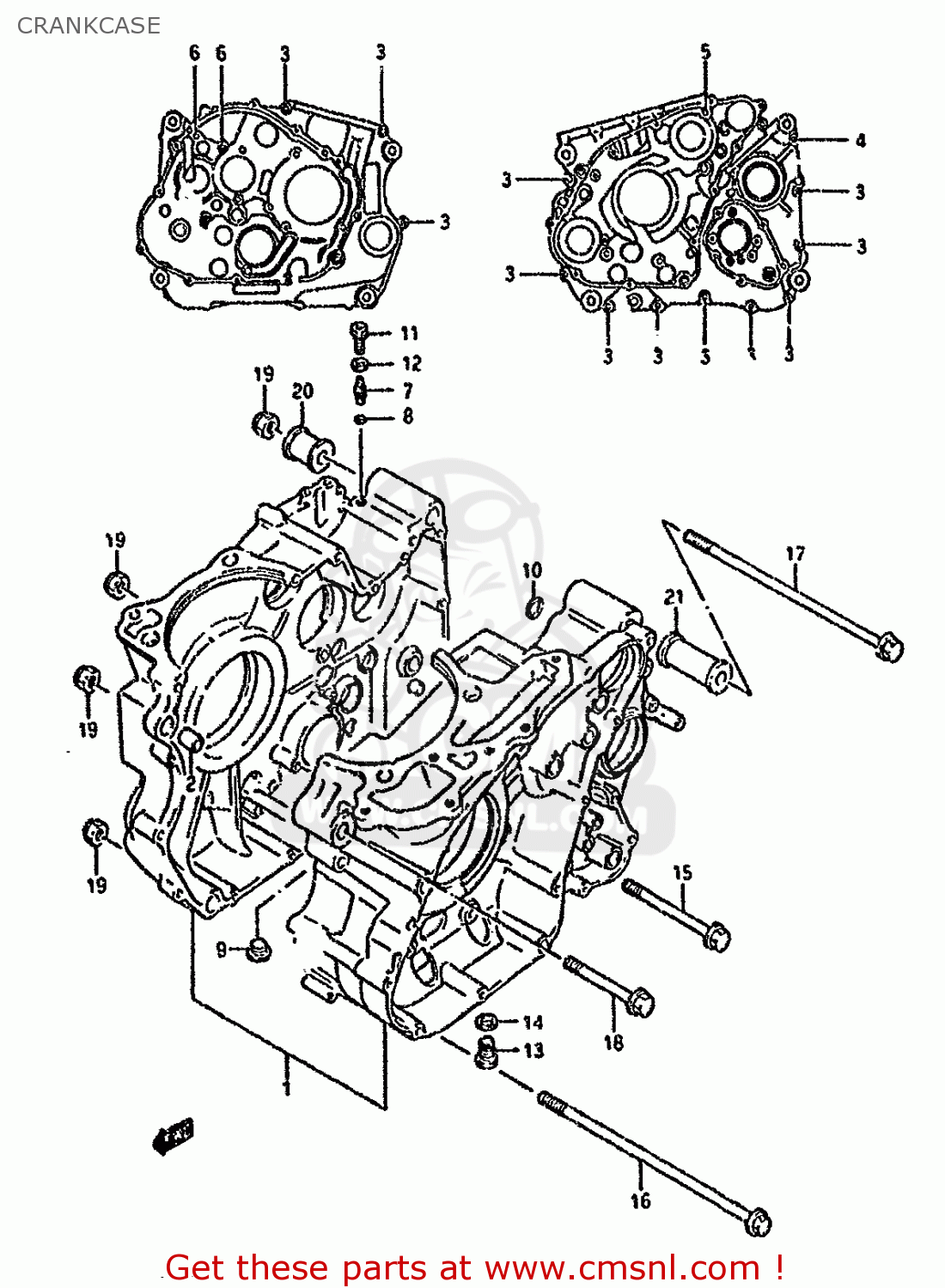

Crankcase diagram DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

CRANKCASE DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
CRANKCASE DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
CRANKCASE DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
1-1
1130144830
ref: 1-1
MODEL M
CRANKCASE SET (SILVER)
€ 1,112.50
1-2
1130144840
ref: 1-2
MODEL N/P/R/S/T
CRANKCASE SET
€ 1,112.50
2
0421113189
ref: 2
-09206-13001
PIN
0421113189
€ 2.50
3-1
0154706407
ref: 3-1
MODEL M/N/P
BOLT
0154706407
€ 2.50
3-2
0154706403
ref: 3-2
MODEL R/S/T
BOLT
0154706403
€ 3.00
4
0154706607
ref: 4
BOLT
0154706607
€ 2.50
5-1
0154706657
ref: 5-1
MODEL M/N/P
BOLT
0154706657
€ 2.00
5-2
0154706653
ref: 5-2
MODEL R/S/T
BOLT
€ 2.00
6-1
0154706757
ref: 6-1
MODEL M/N/P
BOLT
0154706757
€ 2.50
6-2
0154706753
ref: 6-2
MODEL R/S/T
BOLT
€ 2.00
7-1
0949324009
ref: 7-1
JET(12)
0949324009
€ 10.50
7-2
0949332006
ref: 7-2
JET,OIL GALLERY(16)
€ 8.00
8
0928004004
ref: 8
O RING(D:1.2,ID:4)
0928004004
€ 2.00
9
0924816004
ref: 9
PLUG
0924816004
€ 4.00
10
0928011004
ref: 10
O RING(D:1.9,ID:11)
0928011004
€ 2.50
11
0713008127
ref: 11
BOLT
0713008127
€ 1.50
12
0916808008
ref: 12
GASKET 8.2X14X1 (NAS)
0916808008
€ 1.00
13
0150012203
ref: 13
BOLT
0150012203
€ 3.00
14
0916812002
ref: 14
GASKET(12.1X16.2X3.7) (NAS)
0916812002
€ 2.00
15-1
0910310237
ref: 15-1
MODEL M/N/P
BOLT(10X130)
0910310237
€ 5.50
15-2
0910310122
ref: 15-2
MODEL R/S/T
BOLT(10X130)
0910310122
€ 9.50
16
0910310190
ref: 16
BOLT (10X215)
0910310190
€ 9.50
17
0910310238
ref: 17
BOLT 10X230
0910310238
€ 17.00
18
0910310051
ref: 18
BOLT 10X70
0910310051
€ 4.00
19-1
0915910044
ref: 19-1
MODEL M/N/P
NUT (10MM)
€ 4.00
19-2
0915910058
ref: 19-2
MODEL R/S/T
NUT
0915910058
€ 4.00
20
1161017600
ref: 20
SPACER,ENGINE MOUNT
€ 9.00
21
1161014A10
ref: 21
SPACER,ENG MTG,R(L:60)
€ 8.50
