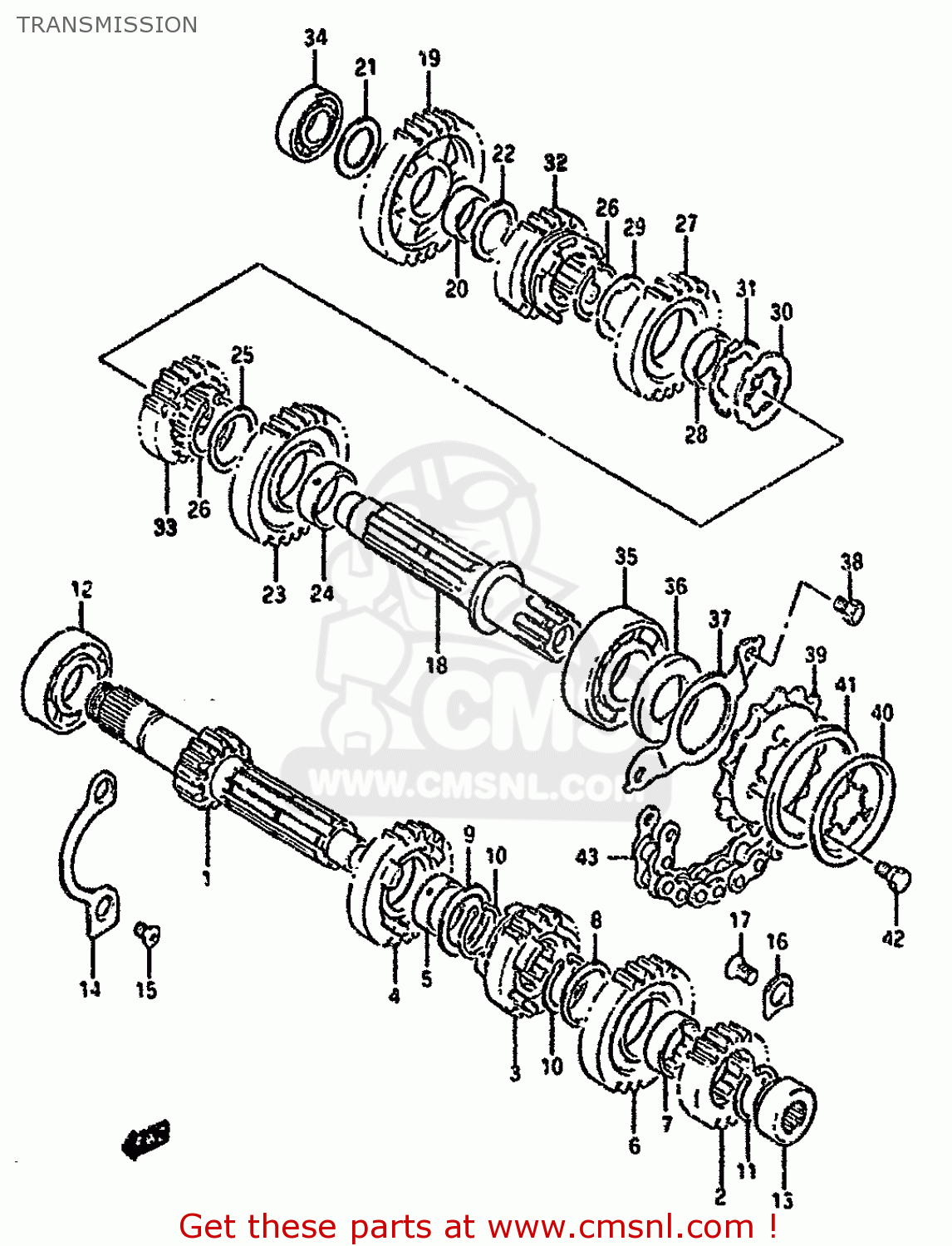

TRANSMISSION

ref

part #

description

quantity

1-1

2412144B02
ref: 1-1
MODEL M/N

SHAFT,COUNTER

€ 177.50

1-2

2412144B10
ref: 1-2
MODEL P/R/S/T

SHAFT,COUNTER

€ 177.50

2-1

2422144B00
ref: 2-1
MODEL M/N

GEAR,2ND DRIVE (NT:19)

€ 103.50

2-2

2422144B10
ref: 2-2
MODEL P/R/S

GEAR ,2ND DRIV

€ 103.50

2-3

2422144B20
ref: 2-3
MODEL T E4,E22,E34,E

GEAR,2ND DRIVE(NT:19)

€ 103.50

2-4

2422144B10
ref: 2-4
MODEL T E18

GEAR ,2ND DRIV

€ 103.50

3

2423144B01
ref: 3

GEAR,THIRD DRIVE (NT:20)

€ 89.00

4

2424144B01
ref: 4

GEAR,4TH DRIVE(NT:23)

€ 94.00

5

0930025023
ref: 5

BUSHING 25X29X10

€ 9.50

6

2425144B01
ref: 6

GEAR,FIFTH DRIVE (NT:25)

€ 102.00

7

2425238A00
ref: 7

BUSHING

€ 10.50

8

0916725021
ref: 8

WASHER,LOCK

€ 3.00

9

0821125351
ref: 9

WASHER

€ 3.00

10

0938025003
ref: 10

RING,SNAP

€ 3.00

11

0938025013
ref: 11

CIRCLIP

€ 3.00

12

0926222028
ref: 12
-09262-22014

BEARING(22X56X16)

€ 59.50

13

0926317026
ref: 13

BEARING(17X30X14)

€ 37.00

14

2474144B00
ref: 14

RETAINER,CNTR SHAFT BEARING

€ 6.00

15-1

0212206128
ref: 15-1
MODEL M/N/P

SCREW

€ 3.00

15-2

0212206123
ref: 15-2
MODEL R/S/T

SCREW

€ 3.00

16

2474244B00
ref: 16

RETAINER

€ 3.00

17-1

0212206128
ref: 17-1
MODEL M/N/P

SCREW

€ 3.00

17-2

0212206123
ref: 17-2
MODEL R/S/T

SCREW

€ 3.00

18

2413144B00
ref: 18

SHAFT,DRIVE

€ 134.00

19-1

2431144B00
ref: 19-1
MODEL M/N

GEAR,1ST DRIVEN (NT:32)

€ 114.50

19-2

2431144B10
ref: 19-2
MODEL P/R/S/T

GEAR,1ST DRIVEN(NT:32)

€ 114.50

20

0930022005
ref: 20

BUSHING

€ 19.50

21

0821120321
ref: 21

WASHER,THRUST

€ 3.00

22

0821122341
ref: 22

WASHER

€ 3.00

23-1

2432144B00
ref: 23-1
MODEL M/N

GEAR,2ND DRIVEN (NT:30)

€ 115.50

23-2

2432144B10
ref: 23-2
MODEL P/R/S

GEAR,2ND DRIVE

€ 115.50

23-3

2432144B20
ref: 23-3
MODEL T E4,E22,E34,E

GEAR,2ND DRIVEN(NT:30)

€ 115.50

23-4

2432144B10
ref: 23-4
MODEL T E18

GEAR,2ND DRIVE

€ 115.50

24

0930028002
ref: 24

BUSH(28X32X11)

€ 15.50

25

0821128361
ref: 25

WASHER

€ 3.50

26

0833131286
ref: 26

CIRCLIP

€ 2.50

27

2433144B00
ref: 27

GEAR,THIRD DRIVEN (NT:24)

€ 124.00

28

2433227A00
ref: 28

BUSH

€ 13.50

29

0916728001
ref: 29

WASHER,LOCK

€ 3.00

30

0916728002
ref: 30

WASHER,LOCK

€ 3.00

31

0916928001
ref: 31

WASHER

€ 3.00

32

2434144B01
ref: 32

GEAR,FOURTH DRIVEN (NT:22)

€ 102.50

33

2435144B01
ref: 33

GEAR,FIFTH DRIVEN (NT:20)

€ 85.00

34

0926220059
ref: 34

BEARING(20X42X12)

€ 14.50

35

0926225066
ref: 35

BEARING(25X62X17)

€ 44.50

36

0928325076
ref: 36

SEAL,OIL(25X45X5)

€ 9.00

37

2475114A01
ref: 37

RETAINER,DRIVE SHAFT OIL SEAL

€ 7.50

38-1

0110706106
ref: 38-1
MODEL M/N/P

BOLT

€ 2.00

38-2

0150006103
ref: 38-2
MODEL R/S/T

BOLT

€ 2.00

39-1

2751144B00
ref: 39-1
MODEL M/N/P

SPROCKET,ENGINE(15T)

€ 23.50

39-2

2751131D00
ref: 39-2
MODEL R/S/T

SPROCKET,ENGINE(15T)

€ 23.50

40

2751244B00
ref: 40

PLATE,ENGINE SPROCKET

€ 4.00

41

2751737400
ref: 41

DAMPER,ENGINE SPROCKET

€ 9.50

42

0911106039
ref: 42

BOLT(6X13)

€ 6.00

43-1

2760044B10116
ref: 43-1
MODEL M/N/P

CHAIN(DID520VL2,116L)

€ 144.00

43-2

2760032C10116
ref: 43-2
MODEL R/S/T

CHAIN(DID525V8,116LE)

€ 162.50
