CAM CHAIN

DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

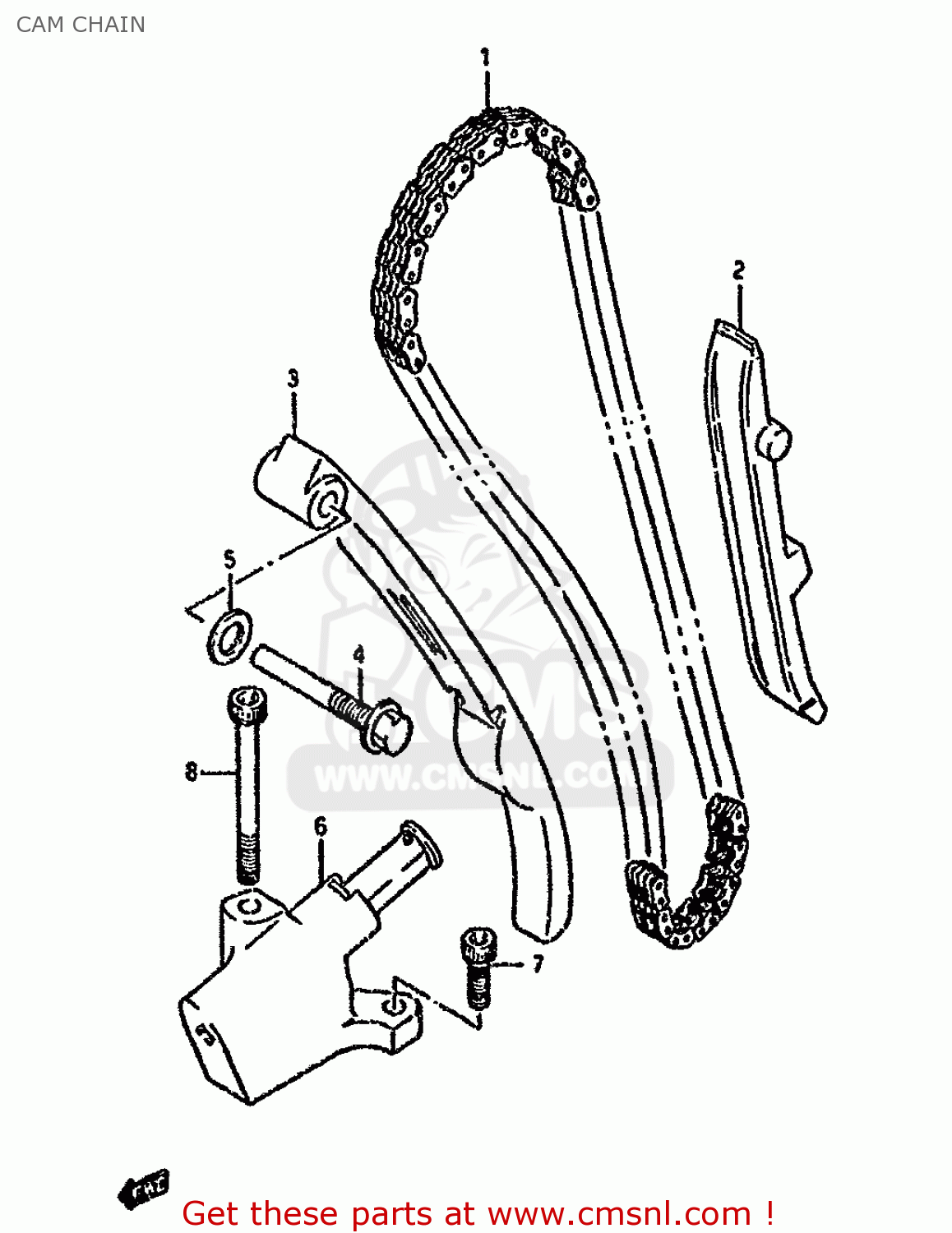

Cam chain diagram DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

CAM CHAIN DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

CAM CHAIN DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

prices are in EUR

ref

part #

description

quantity

1

1276044B00106
ref: 1
106LE

CHAIN,CAMSHAFT DRIVE

€ 97.50

2

1277144B00
ref: 2

GUIDE,CAM CHAIN

€ 29.50

3

1281144B00
ref: 3

TENSIONER,CAM CHAIN

€ 66.00

4

1281224B00
ref: 4

BOLT,CAM CHAIN TENSIONER

€ 5.50

5

0916808008
ref: 5

GASKET 8.2X14X1 (NAS)

€ 1.00

6

1283044B02
ref: 6

ADJUSTER ASSY,TENSIONER

€ 83.50

7-1

0713006205
ref: 7-1
MODEL M/N/P

BOLT

€ 3.00

7-2

0713006203
ref: 7-2
MODEL R/S/T

BOLT,CRKCASE,R

€ 3.00

8

0713006553
ref: 8
-09106-06034

BOLT

€ 2.50
