REAR SWINGING ARM

DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

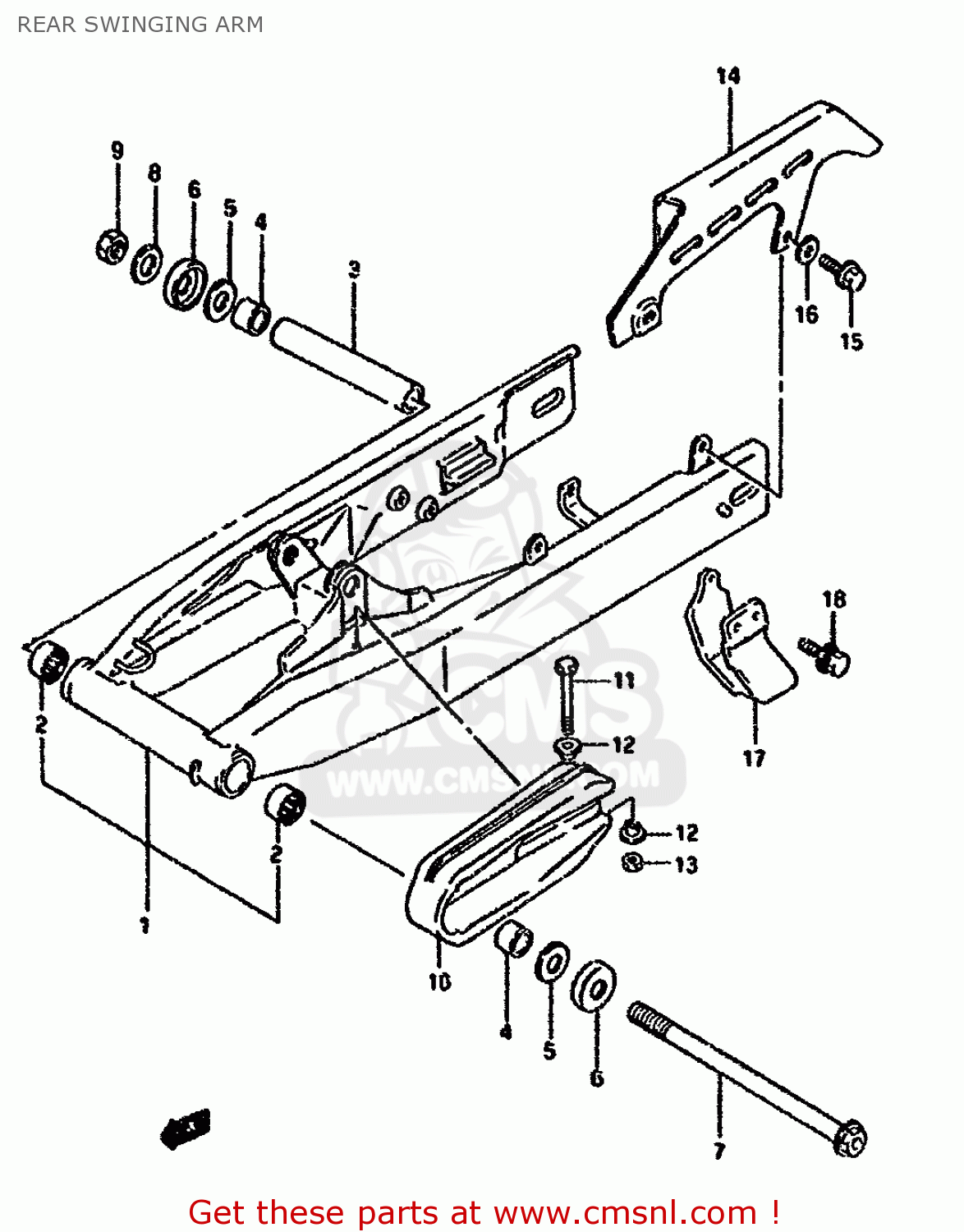

Rear swinging arm diagram DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

REAR SWINGING ARM DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
REAR SWINGING ARM DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
REAR SWINGING ARM DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
1
6100031D0113L
ref: 1
SWINGING ARM ASSY,REAR (SILVER)
6100031D0113L
€ 666.50
2
0926322022
ref: 2
BEARING(22X29X20)
0926322022
€ 27.00
3
6128214A00
ref: 3
SPACER,RR SWGARM PIVOT CTR
6128214A00
€ 15.00
4
6125132410
ref: 4
SPACER,RR SWGARM PIVOT
6125132410
€ 8.50
5
0821116341
ref: 5
WASHER
0821116341
€ 2.00
6
6126214A00
ref: 6
SEAL,RR SWGARM PIVOT DUST
6126214A00
€ 7.50
7-1
6121144B01
ref: 7-1
MODEL M/N
SHAFT,REAR SWING ARM
€ 39.00
7-2
6121112D10
ref: 7-2
MODEL P/R/S/T
SHAFT,RR SWINGINGARM PIVOT
6121112D10
€ 39.00
8-1
0832211165
ref: 8-1
MODEL M/N
WASHER (BLACK)
€ 2.00
8-2
0832211168
ref: 8-2
MODEL P
WASHER
0832211168
€ 2.00
8-3
0832201163
ref: 8-3
MODEL R/S/T
WASHER, FIXED DRIVE FACE
0832201163
€ 2.00
9-1
0831921165
ref: 9-1
MODEL M/N
NUT (BLACK)
€ 5.00
9-2
0831921168
ref: 9-2
MODEL P/R/S/T
NUT 16MM
0831921168
€ 5.00
10
6127331D00
ref: 10
BUFFER,CHAIN TOUCH DEFENSE
6127331D00
€ 34.50
11
6127531D00
ref: 11
BOLT,CHAIN TOUCH DEFENCE,FTG
6127531D00
€ 3.00
12
0916906068
ref: 12
WASHER
0916906068
€ 2.00
13
0831931053
ref: 13
NUT
0831931053
€ 3.00
14
6131136A00
ref: 14
-61311-36A00-291
CASE,CHAIN
6131136A00
€ 30.50
15-1
0151706105
ref: 15-1
MODEL M/N/P
BOLT
€ 2.50
15-2
0155006103
ref: 15-2
MODEL R/S/T
BOLT
0155006103
€ 2.50
16
0916906026
ref: 16
WASHER
0916906026
€ 2.00
17
6134114A03
ref: 17
GUIDE,CHAIN
6134114A03
€ 25.00
18-1
0911806031
ref: 18-1
MODEL M/N/P/R/S
BOLT
€ 3.50
18-2
0911806106
ref: 18-2
MODEL T
BOLT(6X16)
0911806106
€ 3.50
