STEERING STEM

DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

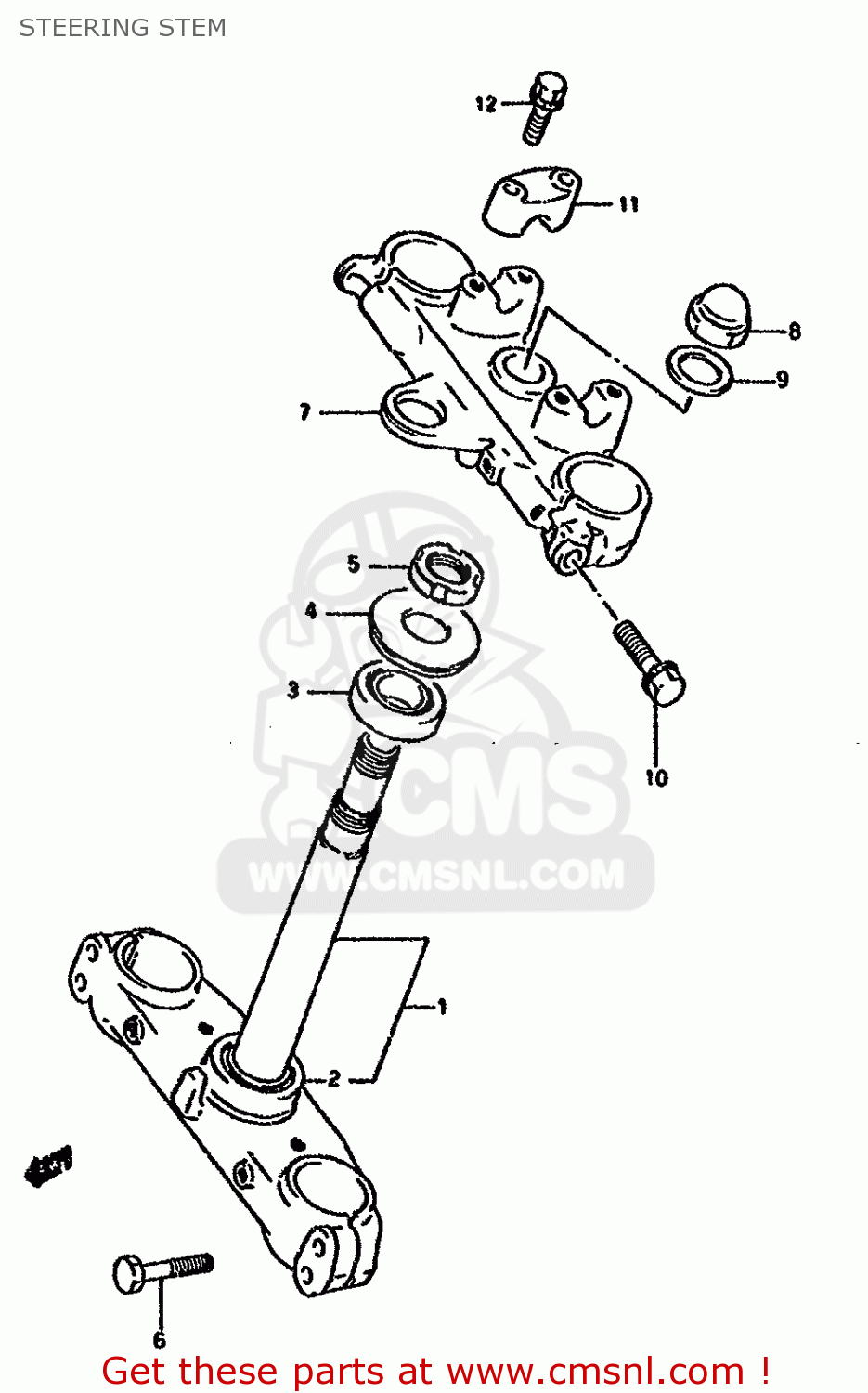

Steering stem diagram DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

prices are in EUR

ref

part #

description

quantity

5141031D00
ref: 1

STEM,STEERING

€ 379.50

0926530009
ref: 2

BEARING(30X55X17)

€ 49.50

0926525008
ref: 3

TAPER,ROLLER BEARING

€ 48.50

5164340200
ref: 4

SEAL,STEERING UPR DUST

€ 7.50

5163140200
ref: 5

NUT,STEERING STEM

€ 12.00

5132831D00
ref: 6

BOLT,STEM(8X50)

€ 4.00

5131031D00
ref: 7

HEAD,STEERING STEM

€ 184.00

8-1

5135344B00
ref: 8-1
MODEL M/N/P

NUT

€ 21.50

8-2

5135324B00
ref: 8-2
MODEL R/S/T

NUT,CAP

€ 21.50

9-1

5135627A00
ref: 9-1
MODEL M/N/P

WASHER,STEERING STEM

€ 3.00

9-2

5135624B01
ref: 9-2
MODEL R/S/T

WASHER(22.5X32X1.6)

€ 3.00

10-1

0114410455
ref: 10-1
MODEL M/N/P/R

BOLT,UPPER BRACKET

€ 3.00

10-2

0157010453
ref: 10-2
MODEL S/T

BOLT, UPPER BRACKET

€ 3.00

5621127200291
ref: 11

HOLDER,HANDLE UPR

€ 13.50

12-1

0114708355
ref: 12-1
MODEL M/N/P/R

BOLT

€ 2.00

12-2

0157008353
ref: 12-2
MODEL S/T

BOLT

€ 2.00
