CYLINDER

DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

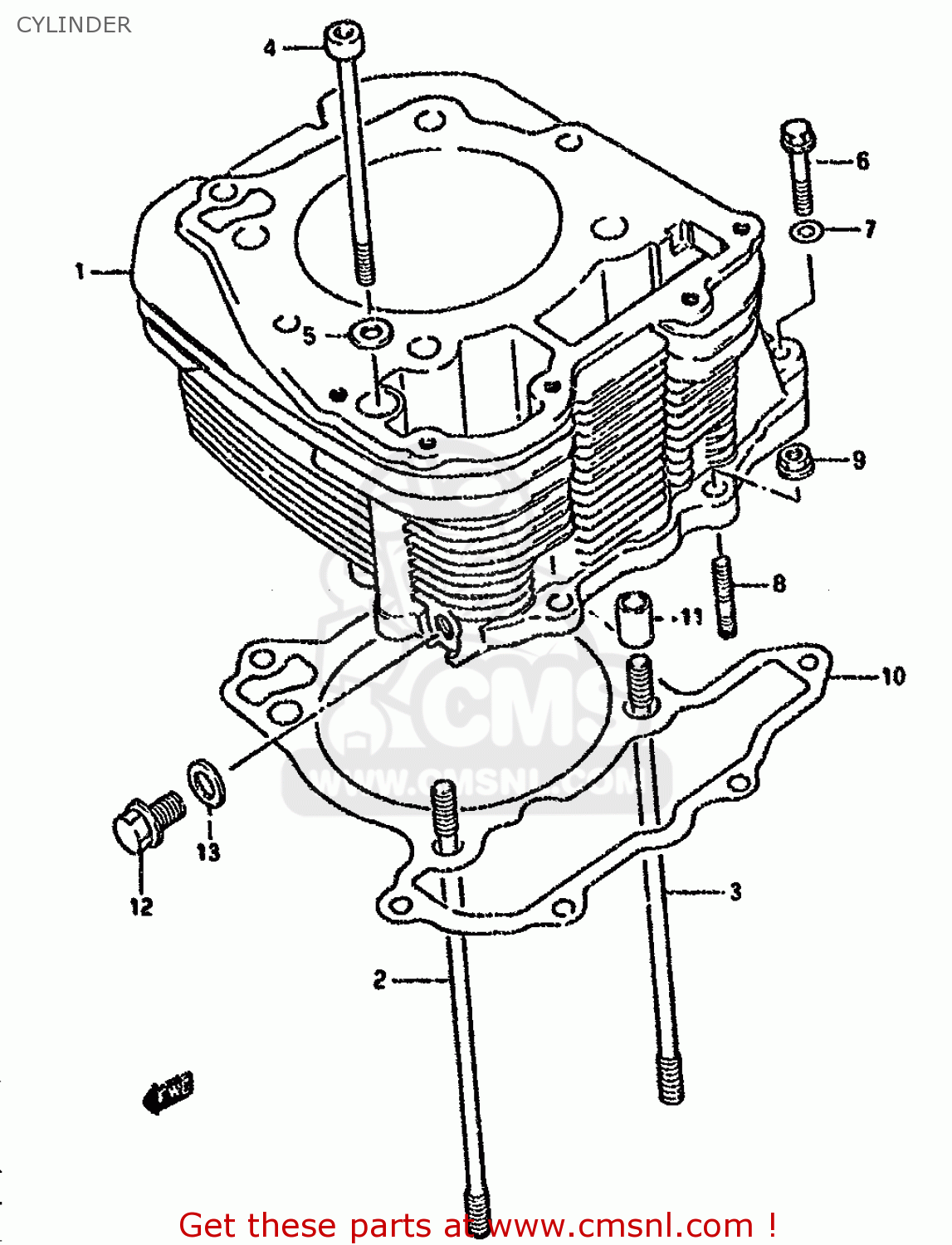

Cylinder diagram DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

prices are in EUR

ref

part #

description

quantity

1121045B0120H
ref: 1

CYLINDER

€ 568.50

0910810094
ref: 2

BOLT,STUD

€ 12.50

0910810103
ref: 3

BOLT,STUD(10X195)

€ 12.50

0910607012
ref: 4

BOLT L:115

€ 9.00

0916807003
ref: 5

GASKET(7.2X13X1.2) (NAS)

€ 2.00

0155006407
ref: 6

BOLT

€ 2.50

0916806023
ref: 7

GASKET(5.8X13X1.2) (NAS)

€ 2.00

0142106257
ref: 8

BOLT,STUD

€ 2.50

9-1

0915906017
ref: 9-1
MODEL M/N/P

NUT

€ 2.50

9-2

0831610067
ref: 9-2
MODEL R/S/T

NUT

€ 2.00

1124144B01
ref: 10

GASKET,CYLINDER (NAS)

€ 33.00

0421113189
ref: 11

PIN

€ 2.50

0155010163
ref: 12

BOLT

€ 2.50

0916810031
ref: 13

GASKET(10.2X20X2).3 (NAS)

€ 2.00
