SPORT CARRIER

DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

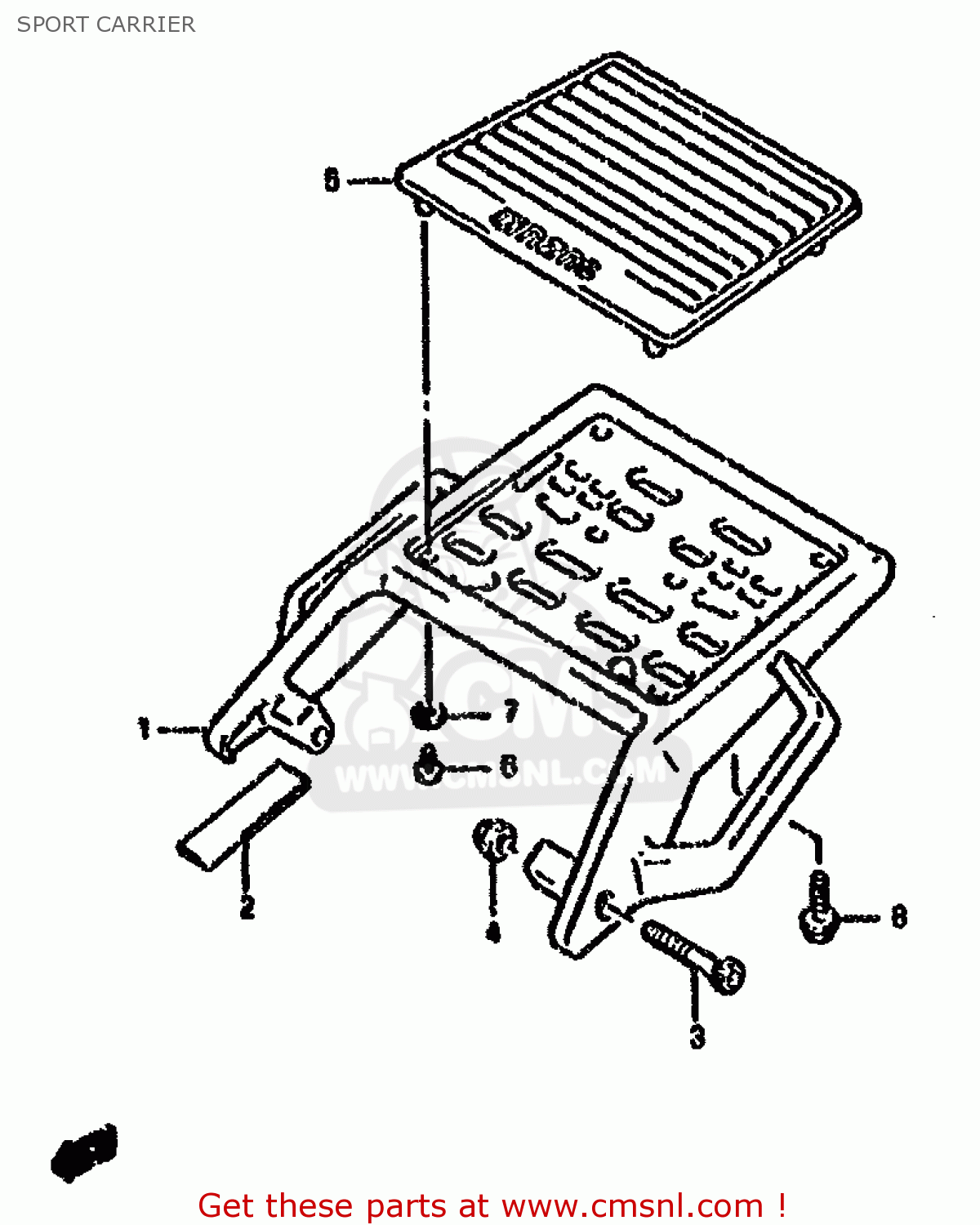

Sport carrier diagram DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

prices are in EUR

ref

part #

description

quantity

1-1

4631031D1013L
ref: 1-1
MODEL M

CARRIER,SPORT (SILVER)

€ 198.00

1-2

4631031D1113L
ref: 1-2
MODEL N/P/R/S/T

CARRIER,SPORT

€ 198.00

2-1

4631231D10
ref: 2-1
MODEL M

CUSHION,FRONT

€ 3.50

2-2

4631231D11
ref: 2-2
MODEL N/P/R/S/T

CUSHION,FR

€ 3.50

3-1

0711008558
ref: 3-1
MODEL M/N/P/R

BOLT,FRONT

€ 3.50

3-2

0713008557
ref: 3-2
MODEL S/T

BOLT

€ 3.50

0831931087
ref: 4

NUT

€ 2.50

4632131D10
ref: 5

MAT,SP.CARRIER

€ 25.00

6-1

0354105168
ref: 6-1
MODEL M/N/P

SCREW

€ 1.50

6-2

0913605034
ref: 6-2
MODEL R/S/T

SCREW(5X16)

€ 2.00

0916006028
ref: 7
MODEL M/N/P

WASHER(6.5X18X1)

€ 1.50

8-1

0151706254
ref: 8-1
MODEL M/N/P

BOLT

€ 2.50

8-2

0155006253
ref: 8-2
MODEL R/S/T

BOLT

€ 2.50
