FRONT CALIPER (MODEL T)

DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

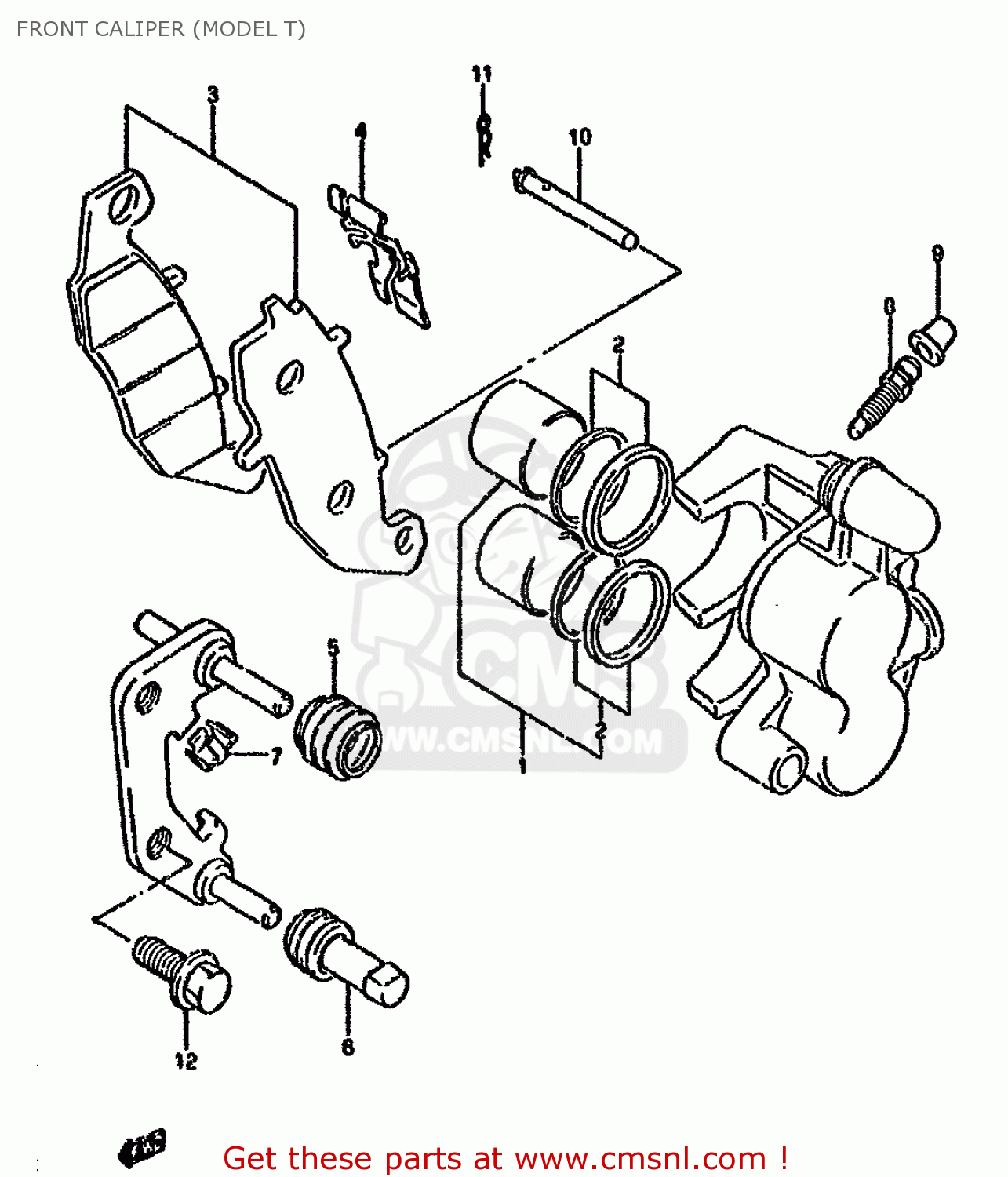

Front caliper (model t) diagram DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

FRONT CALIPER (MODEL T) DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
FRONT CALIPER (MODEL T) DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
FRONT CALIPER (MODEL T) DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
0
5930033D10
ref: 0
CALIPER,FRONT,
€ 400.00
1
5930033830
ref: 1
PISTON SET
€ 65.50
2
5930033840
ref: 2
SEAL SET,PISTON
5930033840
€ 26.50
3
5930033860
ref: 3
PAD SET (NAS)
5930033860
€ 43.00
4
5931533D00
ref: 4
SPRING,PAD,L
5931533D00
€ 11.50
5
5911244B00
ref: 5
BOOT,AXLE
5911244B00
€ 8.00
6
5931336500
ref: 6
INSULATOR,AXLE
5931336500
€ 5.50
7
5911633D00
ref: 7
GUIDE,PAD
5911633D00
€ 6.50
8
5912118410
ref: 8
BLEEDER
5912118410
€ 8.00
9
5515666310
ref: 9
CAP,BLEEDER PLUG
5515666310
€ 6.00
10
5914144B01
ref: 10
PIN,PAD
5914144B01
€ 8.00
11
6914245000
ref: 11
CLIP,PAD PIN
6914245000
€ 4.50
12
0155010253
ref: 12
BOLT
0155010253
€ 3.00
13
5515666310
ref: 13
CAP,BLEEDER PLUG
5515666310
€ 6.00
14-1
0151710257
ref: 14-1
MODEL M/N/P
BOLT
0151710257
€ 3.00
14-2
0155010253
ref: 14-2
MODEL R/S
BOLT
0155010253
€ 3.00
