WIRING HARNESS (MODEL T)

DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

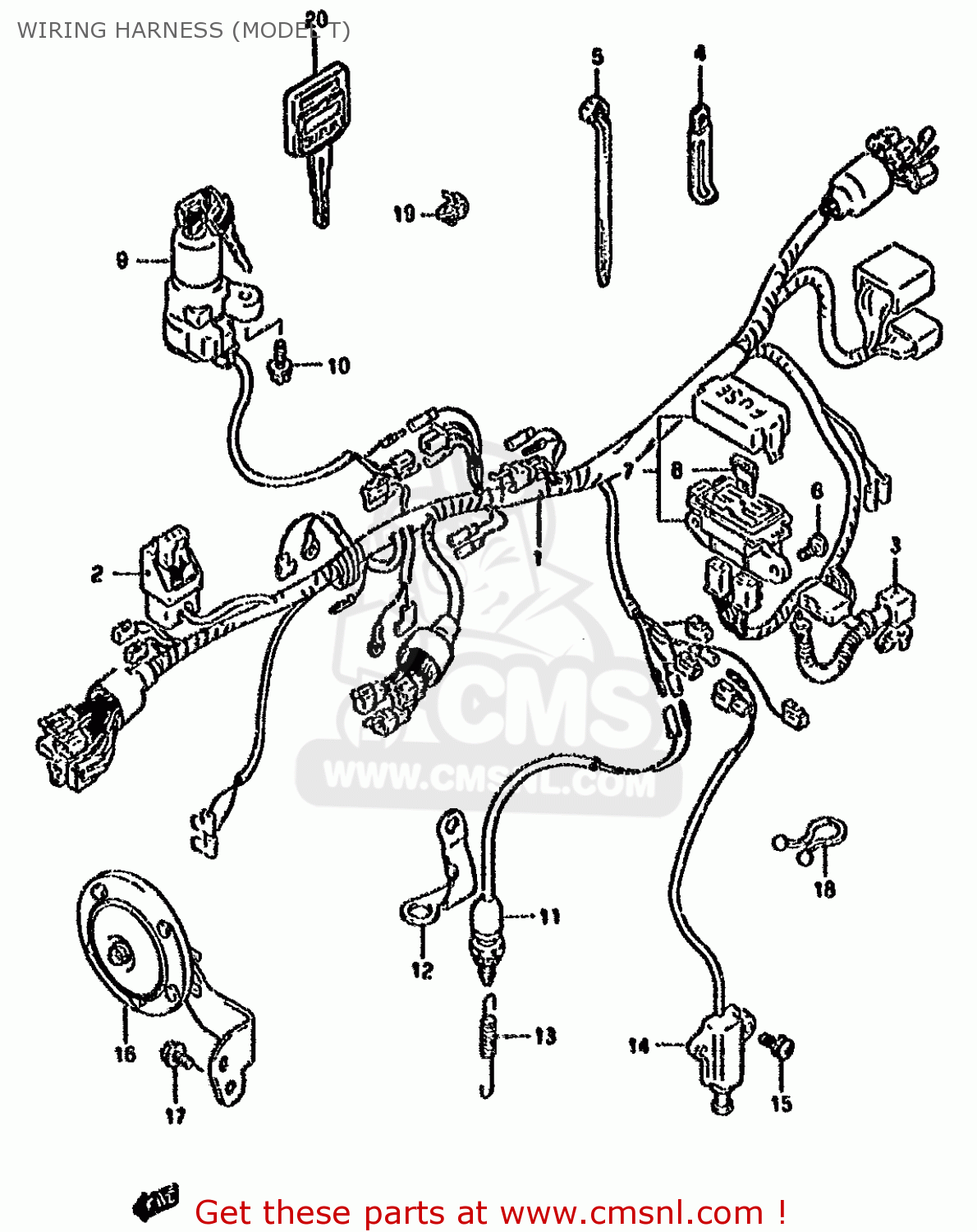

Wiring harness (model t) diagram DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

WIRING HARNESS (MODEL T) DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
WIRING HARNESS (MODEL T) DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
WIRING HARNESS (MODEL T) DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
1
3661031D50
ref: 1
HARNESS, WIRING
€ 386.00
2
3298044B00
ref: 2
COVER,DECOMPRESSION CONTROL UNIT
€ 5.50
3
3362435B00
ref: 3
CAP,BATTERY PLUS
3362435B00
€ 6.50
4-1
0940406431
ref: 4-1
CLAMP(L:65)
0940406431
€ 2.50
4-2
0940406432
ref: 4-2
CLAMP(L:65)
0940406432
€ 2.50
4-3
0940406426
ref: 4-3
CLAMP
0940406426
€ 3.00
5-1
0940711401
ref: 5-1
CLAMP(L:95)
0940711401
€ 2.50
5-2
0940712402
ref: 5-2
CLAMP(L:120)
0940712402
€ 3.00
5-3
0940714403
ref: 5-3
CLAMP(L:125)
0940714403
€ 2.50
5-4
0940725401
ref: 5-4
CLAMP(L:235)
0940725401
€ 4.00
5-5
0940730401
ref: 5-5
CLAMP(L:300)
0940730401
€ 4.50
6
0214206123
ref: 6
SCREW 6X12
0214206123
€ 2.00
7
3674031D00
ref: 7
BOX ASSY,FUSE
€ 41.00
8-1
0948110101
ref: 8-1
FUSE(10A)
0948110101
€ 2.50
8-2
0948120101
ref: 8-2
FUSE(20A)
0948120101
€ 2.00
9
3710012D11
ref: 9
LOCK ASSY,STEERING
3710012D11
€ 128.00
10
0913906026
ref: 10
SCREW(6X18)
0913906026
€ 2.50
11
3774031D00
ref: 11
SWITCH ASSY,STOP LAMP
3774031D00
€ 20.50
12
4325144B0024K
ref: 12
BRACKET,STOP LAMP SWITCH
€ 8.50
13
0944306012
ref: 13
SPRING
0944306012
€ 3.00
14
3784044X50
ref: 14
SWITCH ASSY,SIDE STAND
3784044X50
€ 75.50
15
0211236203
ref: 15
SCREW
€ 2.00
16
3850031D00
ref: 16
HORN ASSY
€ 55.00
17
0155006123
ref: 17
BOLT
0155006123
€ 2.50
18
0940800012
ref: 18
CLIP(ID:11.5)
0940800012
€ 2.00
19
0940308405
ref: 19
CLAMP
0940308405
€ 2.00
20
3714626D10
ref: 20
OPT
KEY,BLANK
3714626D10
€ 41.50
12-1
4325144B0028W
ref: 12-1
MODEL M/N/P-43251-44
BRACKET (WHITE)
€ 8.50
12-2
4325144B0024K
ref: 12-2
MODEL R
BRACKET,STOP LAMP SWITCH
€ 8.50
13
0944306012
ref: 13
SPRING
0944306012
€ 3.00
14-1
3784044A11
ref: 14-1
MODEL M/N/P,-37840-4
SWITCH ASSEMBLY,SIDE STAND
3784044A11
€ 75.50
14-2
3784044A20
ref: 14-2
MODEL R
SWITCH ASSEMBLY,SIDE STAND
€ 75.50
15
0211236203
ref: 15
SCREW
€ 2.00
16-1
3850031D10
ref: 16-1
HORN ASSY
€ 64.00
16-2
3850031D00
ref: 16-2
E1,E4,E18,E21,E22,E2
HORN ASSY
€ 55.00
17-1
0151706125
ref: 17-1
MODEL M/N/P
BOLT 6X12
0151706125
€ 2.50
17-2
0155006123
ref: 17-2
MODEL R
BOLT
0155006123
€ 2.50
18
0940800012
ref: 18
CLIP(ID:11.5)
0940800012
€ 2.00
19
0940800061
ref: 19
CLAMP
€ 2.00
20
3714626D10
ref: 20
OPT
KEY,BLANK
3714626D10
€ 41.50
