BALANCER CHAIN

DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

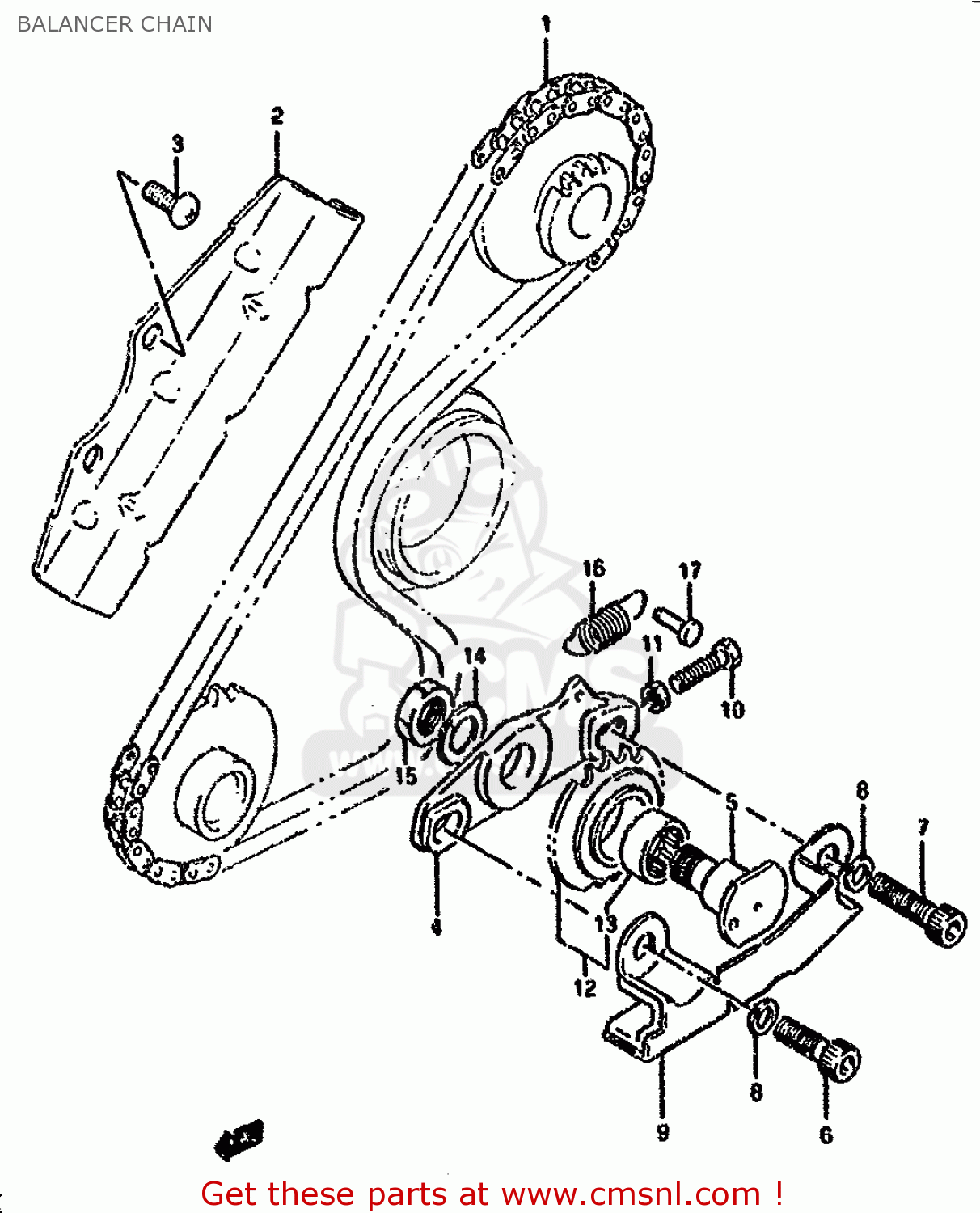

Balancer chain diagram DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

BALANCER CHAIN DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
BALANCER CHAIN DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
BALANCER CHAIN DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
1
1267031D00
ref: 1
CHAIN,BALANCER
1267031D00
€ 82.00
2
1269544B00
ref: 2
GUIDE,BALANCER CHAIN
1269544B00
€ 30.50
3
0211206123
ref: 3
SCREW
0211206123
€ 1.50
4
1268144B00
ref: 4
BRACKET, CHAIN TENSIONER
€ 51.00
5
1268214A01
ref: 5
SHAFT,BALANCER CHAIN TENSIONER
1268214A01
€ 29.00
6
0910608005
ref: 6
BOLT(8X22)
0910608005
€ 2.00
7
0713008303
ref: 7
BOLT
0713008303
€ 3.00
8-1
0832101087
ref: 8-1
MODEL M/N/P
WASHER,LOCK
0832101087
€ 2.00
8-2
0832101083
ref: 8-2
MODEL R/S/T
LOCK WASHER
0832101083
€ 2.50
9
1269631D00
ref: 9
GUIDE, CHAIN TENSIONER
1269631D00
€ 25.50
10-1
0910005006
ref: 10-1
MODEL M/N/P
BOLT 5X20
0910005006
€ 1.50
10-2
0150005163
ref: 10-2
MODEL R/S/T
BOLT
0150005163
€ 1.50
11
0914005006
ref: 11
NUT
0914005006
€ 2.00
12
1268544B00
ref: 12
SPRKT,BALANCER CHAIN TENSIONER
1268544B00
€ 75.00
13
0926317007
ref: 13
BEARING(17X23X12)
0926317007
€ 13.00
14
0916212006
ref: 14
WASHER,LOCK
0916212006
€ 2.50
15
0914012021
ref: 15
NUT
0914012021
€ 2.50
16
0944310040
ref: 16
SPRING
0944310040
€ 2.50
17
0922304001
ref: 17
INCLUDED CRANKCASE S
RIVET
0922304001
€ 1.50
