SECOND AIR (E18,E39)

DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

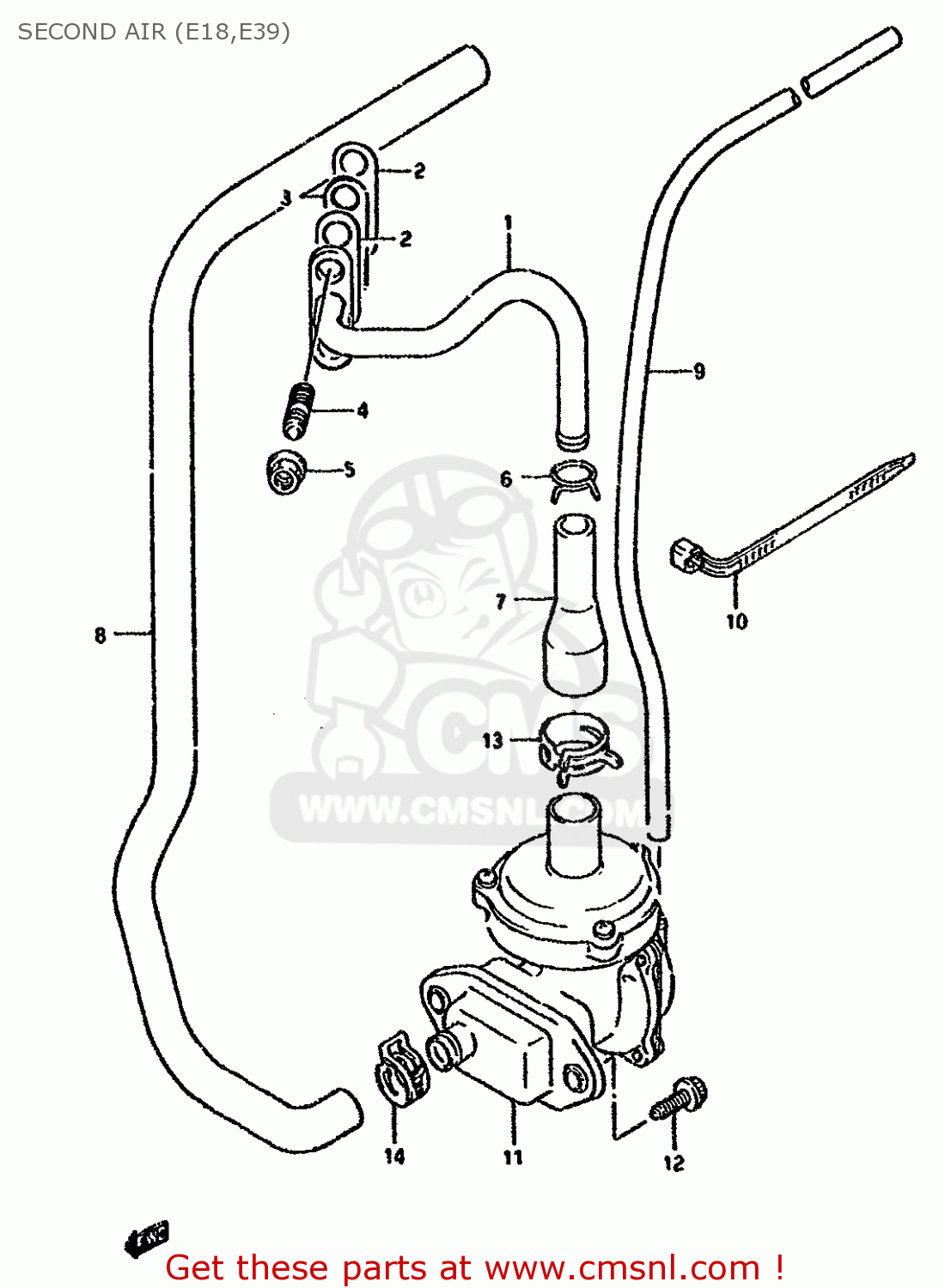

Second air (e18,e39) diagram DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

prices are in EUR

ref

part #

description

quantity

1842031D00
ref: 1

PIPE,2ND AIR

€ 0.00

1844131D00
ref: 2

GASKET (NA)

€ 6.50

1844231D00
ref: 3

PLATE

€ 0.00

4-1

0142108165
ref: 4-1
MODEL M/N/P

BOLT,STUD

€ 2.00

4-2

0142108163
ref: 4-2
MODEL R/S/T

BOLT

€ 2.00

5-1

0831616085
ref: 5-1
MODEL M/N/P

NUT 8MM

€ 3.00

5-2

0831610083
ref: 5-2
MODEL R/S/T

NUT

€ 3.00

0940115301
ref: 6

CLIP

€ 2.50

1844631D00
ref: 7

HOSE, 2ND AIR

€ 22.00

1844531D00
ref: 8

HOSE, 2ND AIR NO.4

€ 0.00

0935940701600
ref: 9
L:600-550

HOSE(4X7X600)

€ 9.00

10-1

0940714403
ref: 10-1

CLAMP(L:125)

€ 2.50

10-2

0940718402
ref: 10-2
MODEL M/N/P/R/S

CLAMP(L:165)

€ 2.50

10-3

0940718403
ref: 10-3
MODEL T

CLAMP L:165

€ 2.50

10-4

0940725401
ref: 10-4
E18

CLAMP(L:235)

€ 4.00

1845031D00
ref: 11

VALVE ASSY, 2ND AIR REED

€ 0.00

0712006163
ref: 12

BOLT MAGNETO S

€ 2.50

0940123403
ref: 13

CLIP

€ 4.50

0940115404
ref: 14

CLIP

€ 2.50
