COWLING BODY (MODEL T)

DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

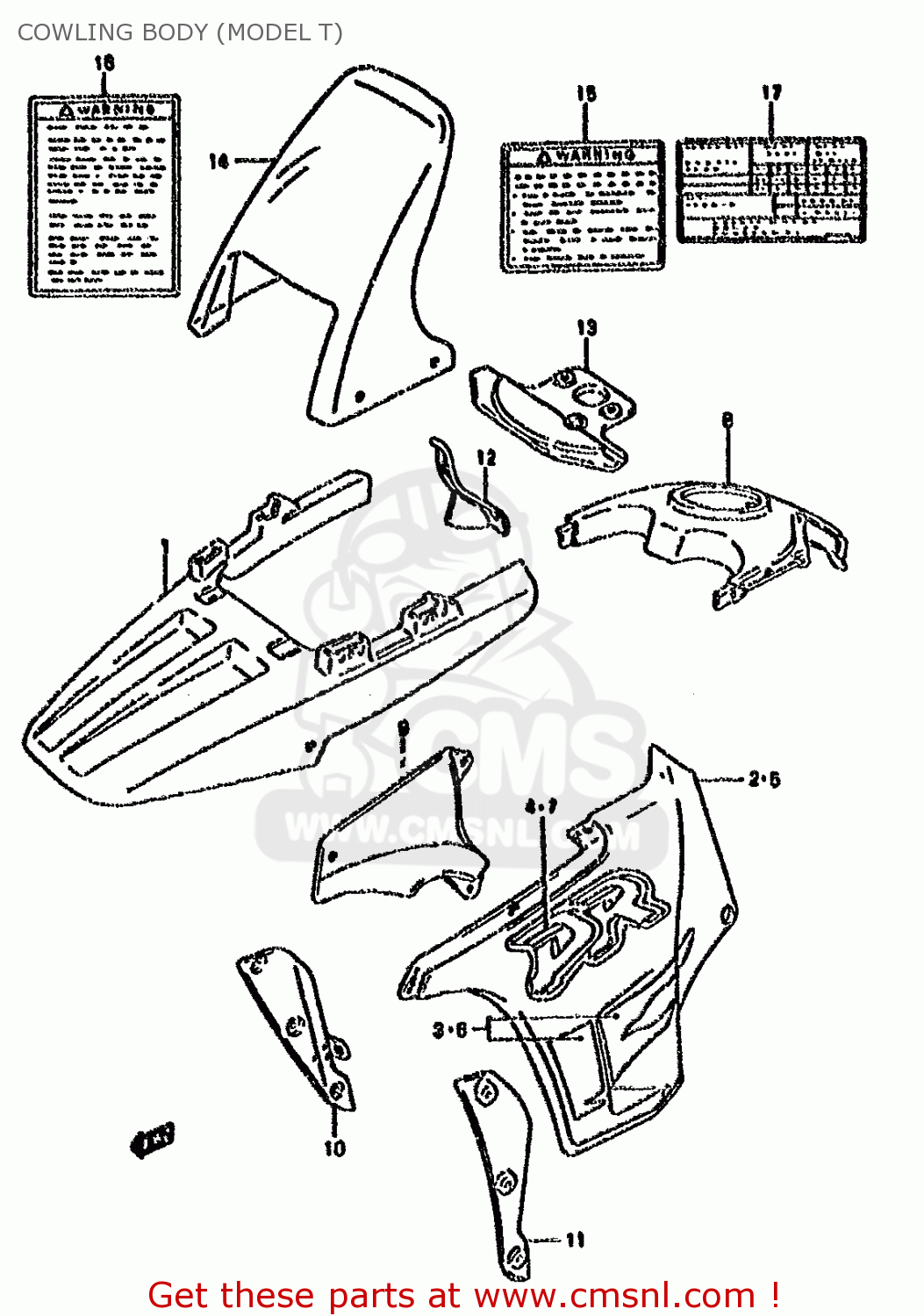

Cowling body (model t) diagram DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

COWLING BODY (MODEL T) DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
COWLING BODY (MODEL T) DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
COWLING BODY (MODEL T) DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
1-1
9440131D30Y22
ref: 1-1
FOR 33J
COWLING ASSY,FR
€ 232.00
1-2
9440131D3035W
ref: 1-2
FOR Y98
COWLING ASSY,FR
€ 228.00
2-1
9440231D7033J
ref: 2-1
COWLING ASSY,SIDE RH (BLACK)
€ 477.50
2-2
9440231D70Y98
ref: 2-2
COWLING ASSY,SIDE RH (GREEN)
€ 592.50
3-1
6868031D50F1L
ref: 3-1
FOR 33J
TAPE SET,COWL SIDE,R
6868031D50F1L
€ 81.50
3-2
6868031D50F1M
ref: 3-2
FOR Y98
TAPE SET,COWL SIDE,R
€ 79.50
4
6868131D40F0E
ref: 4
EMBLEM,COWLING SIDE
€ 27.00
5-1
9440331D7033J
ref: 5-1
COWLING ASSY,SIDE LH (BLACK)
9440331D7033J
€ 530.00
5-2
9440331D70Y98
ref: 5-2
COWLING ASSY,SIDE,L
9440331D70Y98
€ 509.00
6-1
6869031D50F1L
ref: 6-1
FOR 33J
TAPE SET,COWL SIDE,L
6869031D50F1L
€ 79.50
6-2
6869031D50F1M
ref: 6-2
FOR Y98
TAPE SET,COWL SIDE,L
€ 75.50
7
6868131D40F0E
ref: 7
EMBLEM,COWLING SIDE
€ 27.00
8-1
9441331D0033J
ref: 8-1
COWL ,UPPER
9441331D0033J
€ 145.00
8-2
9441331D00Y98
ref: 8-2
COWLING,UPPER (GREEN)
€ 128.00
9-1
9442331D00
ref: 9-1
PANEL,COWLING,INNER,R
€ 25.00
9-2
9442431D00
ref: 9-2
PANEL,COWLING,INNER,L
€ 23.00
10
9445031D01
ref: 10
COWLING, SIDE FRONT RH
9445031D01
€ 40.00
11
9446031D01
ref: 11
COWLING,SIDE FR,L
€ 38.00
12-1
9445131D01
ref: 12-1
PANEL,COWLING,R
9445131D01
€ 9.00
12-2
9446131D01
ref: 12-2
PANEL,COWLING,L
9446131D01
€ 13.00
13
9445231D00
ref: 13
COVER COWLING,FRONT LOWER
€ 36.50
14
9461131D00
ref: 14
WINDSCREEN
9461131D00
€ 175.50
15-1
6831933E20
ref: 15-1
E18,E22,E34
LABEL,WARNING
6831933E20
€ 8.00
15-2
6831933E30
ref: 15-2
E4,E34,E37
LABEL,WARNING
6831933E30
€ 8.50
15-3
6831933E00
ref: 15-3
E34
LABEL (WARNING SAFETY),E
6831933E00
€ 8.00
15-4
6831933E50
ref: 15-4
E34
LABEL,WARNING
6831933E50
€ 8.00
15-5
6831933E70
ref: 15-5
E34
LABEL,WARNING
6831933E70
€ 5.50
15-6
6831933E40
ref: 15-6
E34
LABEL,WARNING
6831933E40
€ 8.00
15-7
6831933E80
ref: 15-7
E37
LABEL, WARNING SAFETY (DOTUGUESE)
€ 4.00
16-1
6861248B00
ref: 16-1
E34,E37
LABEL (WARNING SCREEN)
6861248B00
€ 6.50
16-2
6861248B10
ref: 16-2
E4,E34,E37
LABEL (WARNING SCREEN)
6861248B10
€ 6.50
16-3
6861248B20
ref: 16-3
E18,E22
LABEL (WARNING,SCREEN)
6861248B20
€ 6.50
17-1
6833244B10
ref: 17-1
LABEL, TIRE AIR PRESSURE
€ 0.00
17-2
6833244B30
ref: 17-2
E22
LABEL, TIRE AIR PRESSURE
6833244B30
€ 14.50
18
9901131D55DGS
ref: 18
DRAWING NOT SHOWN
MANUAL,OWNER'S
9901131D55DGS
€ 21.00
22-1
9901131D54022
ref: 22-1
E4,E18,E22,E34
MANUAL,OWNER'S
€ 0.00
22-2
9901131D54028
ref: 22-2
E34,E37 DRAWING NOT
MANUAL,OWNER'S
€ 0.00
21-2
6833244B30
ref: 21-2
E22
LABEL, TIRE AIR PRESSURE
6833244B30
€ 14.50
22-1
9901131D53022
ref: 22-1
MANUAL,OWNER'S
€ 29.50
22-2
9901131D53028
ref: 22-2
E21,E53 DRAWING NOT
MANUAL,OWNER'S
€ 0.00
23-2
6833244B30
ref: 23-2
E22 DRAWING NOT SHOW
LABEL, TIRE AIR PRESSURE
6833244B30
€ 14.50
24-1
9901131D52028
ref: 24-1
MANUAL,OWNER'S
€ 0.00
24-2
9901131D52022
ref: 24-2
E18 DRAWING NOT SHOW
O.M. DR800S P
€ 21.00
25-2
9901131D51022
ref: 25-2
E18 DRAWING NOT SHOW
O.M. DR800S N
€ 21.00
22-2
6862317D00
ref: 22-2
E2
LABEL,CAUTION
6862317D00
€ 4.00
23-1
6861248B00
ref: 23-1
LABEL (WARNING SCREEN)
6861248B00
€ 6.50
23-2
6861248B10
ref: 23-2
E4,E21
LABEL (WARNING SCREEN)
6861248B10
€ 6.50
24-1
9901131D50028
ref: 24-1
MANUAL,OWNER'S
€ 29.50
24-2
9901131D50022
ref: 24-2
E18 DRAWING NOT SHOW
O.M. DR800S M
€ 21.00
