OIL COOLER

DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

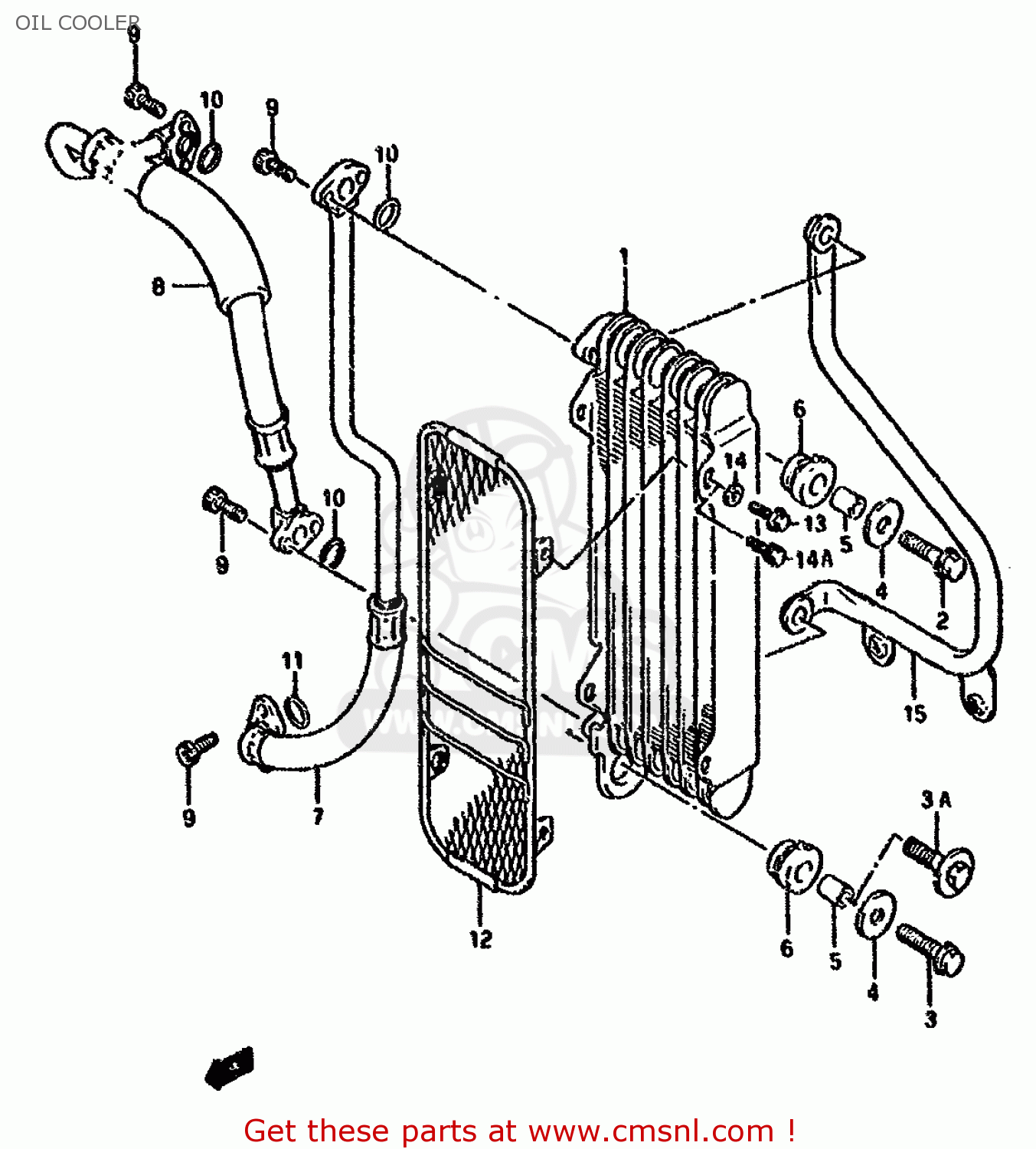

Oil cooler diagram DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

OIL COOLER DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
OIL COOLER DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
OIL COOLER DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
1
1660031D00
ref: 1
COOLER ASSY,OIL
1660031D00
€ 704.50
2
0155008453
ref: 2
MODEL M
BOLT
€ 3.00
3
0155008403
ref: 3
MODEL M
BOLT
0155008403
€ 3.50
3A
0911608106
ref: 3A
MODEL N/P/R/S/T
BOLT(8X45)
0911608106
€ 4.50
4
0916008057
ref: 4
MODEL M
WASHER (8.5X20X1.6)
0916008057
€ 2.00
5
0918008032
ref: 5
SPACER (8.2X12X17)
0918008032
€ 5.00
6
1662931D00
ref: 6
CUSHION,OIL COOLER
€ 4.50
7
1646044B04
ref: 7
HOSE,OIL COOLE
€ 156.50
8
1647044B02
ref: 8
HOSE, OIL COOLER NO.2
€ 124.00
9-1
0713006165
ref: 9-1
MODEL M/N/P
BOLT
€ 3.00
9-2
0713006167
ref: 9-2
MODEL R/S
BOLT
0713006167
€ 3.00
9-3
0713006163
ref: 9-3
MODEL S/T
BOLT,OIL FILLE
0713006163
€ 3.00
10
0928012008
ref: 10
O RING(D:2.4,ID:12.3)
0928012008
€ 3.00
11
1114306B00
ref: 11
O RING,HEAD GASKET
1114306B00
€ 8.00
12
1665031D00
ref: 12
BUMPER,OIL COOLER
1665031D00
€ 50.00
13-1
0154705105
ref: 13-1
MODEL M/N/P
BOLT
0154705105
€ 2.50
13-2
0154705103
ref: 13-2
MODEL R
BOLT
0154705103
€ 2.50
14-1
0832121055
ref: 14-1
MODEL M/N/P
WASHER,LOCK
0832121055
€ 3.00
14-2
0832101053
ref: 14-2
MODEL R
LOCK,WASHER
€ 3.00
14A-1
0157005103
ref: 14A-1
MODEL S
BOLT
0157005103
€ 2.00
14A-2
0216205103
ref: 14A-2
MODEL T
BOLT
€ 2.00
15
1664031D10
ref: 15
-16640-31D00
GUARD, OIL COOLER
€ 41.50
