FRONT MASTER CYLINDER

DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

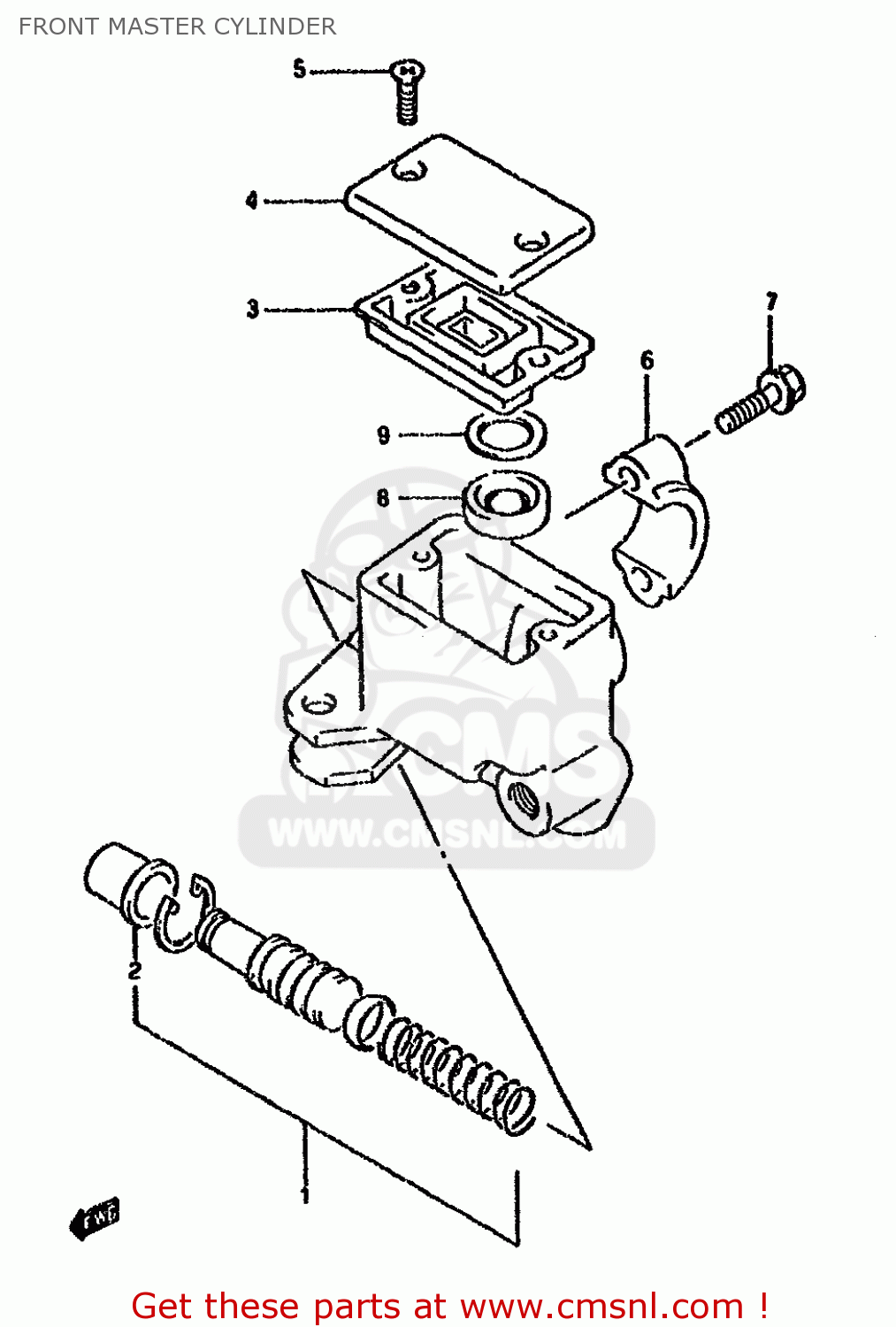

Front master cylinder diagram DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

FRONT MASTER CYLINDER DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

FRONT MASTER CYLINDER DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

prices are in EUR

ref

part #

description

quantity

0

5960031D00
ref: 0

CYLINDER ASSEMBLY,FRONT MASTER

€ 175.50

1

5960004810
ref: 1

PISTON/CUP SET

€ 37.50

2

5966644300
ref: 2

BOOT

€ 6.00

3

5966744B00
ref: 3

DIAPHRAGM

€ 8.00

4

6966924A01
ref: 4

CAP

€ 12.00

5

6968949300
ref: 5

SCREW

€ 1.50

6

5967136500
ref: 6

HOLDER

€ 10.00

7

5967519C00
ref: 7

BOLT(6X25)

€ 3.00

8

5974815400
ref: 8

SEPERATOR

€ 7.50

9

5974915400
ref: 9

PLATE

€ 2.00
