Buy Suzuki DR Parts Online


REAR CALIPER

DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

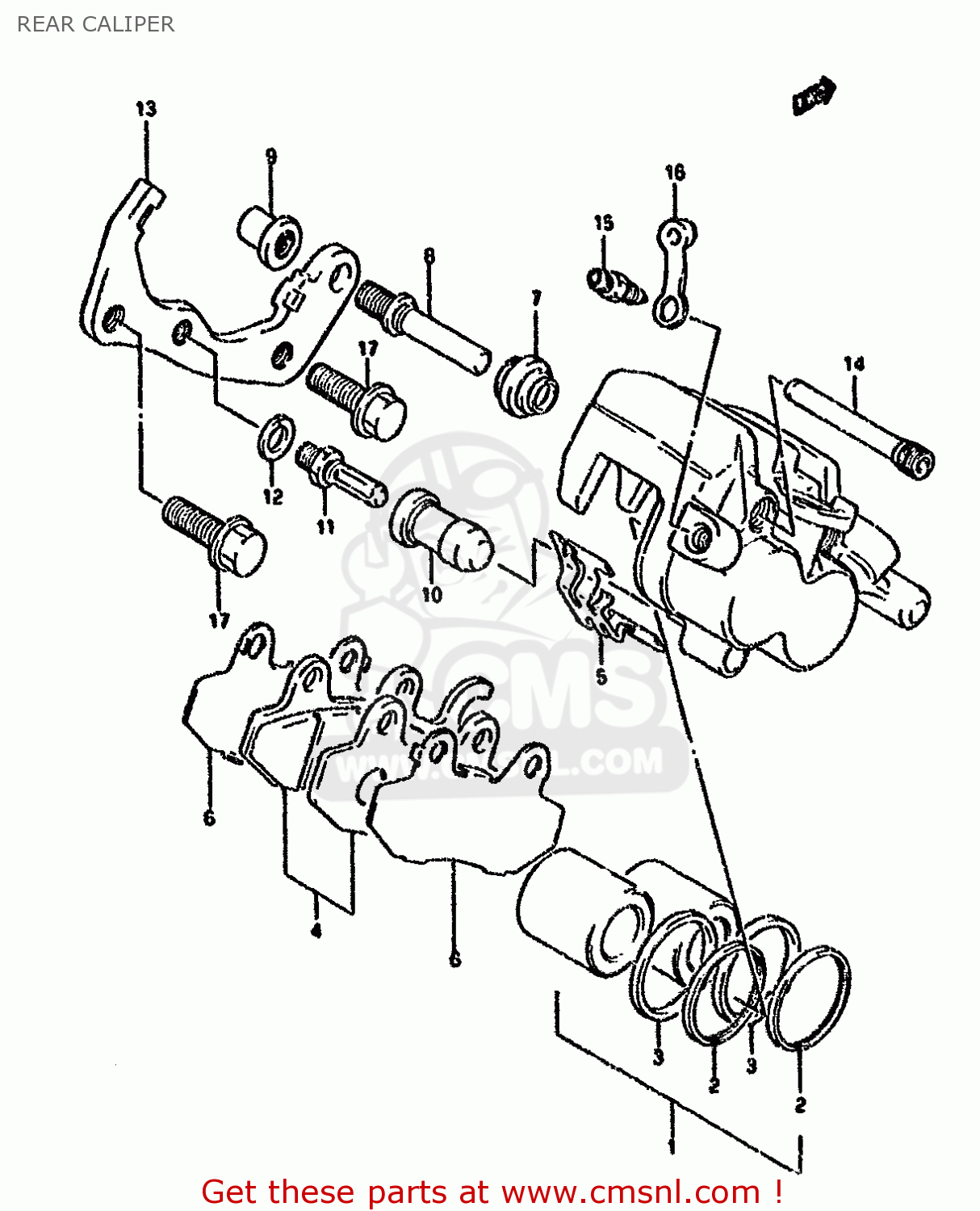

Rear caliper diagram DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

REAR CALIPER DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
REAR CALIPER DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
REAR CALIPER DR800S 1991 (M) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
0
6910031D00
ref: 0
MODEL M/N/P/R
CALIPER ASSY,REAR
€ 594.00
0
6910031D01
ref: 0
MODEL S/T
CALIPER ASSY,RR
€ 594.00
1
6910031810
ref: 1
PISTON SET
6910031810
€ 109.00
2
5910700B20
ref: 2
SEAL,PISTON
5910700B20
€ 13.00
3
5910800B20
ref: 3
SEAL,DUST
5910800B20
€ 10.50
4
6910031820
ref: 4
PAD SET (NAS)
6910031820
€ 53.00
5-1
6911531D00
ref: 5-1
MODEL M/N/P/R
SPRING
€ 10.50
5-2
6911531D10
ref: 5-2
MODEL S/T
SPRING,PAD
6911531D10
€ 10.50
6
6913231D00
ref: 6
SHIM
6913231D00
€ 7.00
7
5930314500
ref: 7
BOOT
5930314500
€ 5.50
8
5938700B20
ref: 8
PIN,SLIDE
5938700B20
€ 12.50
9
5938800B20
ref: 9
NUT
5938800B20
€ 10.00
10
5938613A00
ref: 10
BOOT
5938613A00
€ 6.50
11
5938213A00
ref: 11
BOLT,PIN
5938213A00
€ 6.50
12
5931413A00
ref: 12
WASHER,WAVE
5931413A00
€ 2.00
13
6915131D00
ref: 13
BRACKET
6915131D00
€ 60.50
14
5934514600
ref: 14
PIN,HANGER
5934514600
€ 10.50
15
5912101A00
ref: 15
BLEEDER
5912101A00
€ 8.50
16
5912201A00
ref: 16
CAP,BLEEDER
5912201A00
€ 4.50
17-1
0910310243
ref: 17-1
MODEL M/N/P
BOLT 10X23
€ 4.00
17-2
0910310209
ref: 17-2
MODEL R/S/T
BOLT(10X23)
0910310209
€ 4.00
