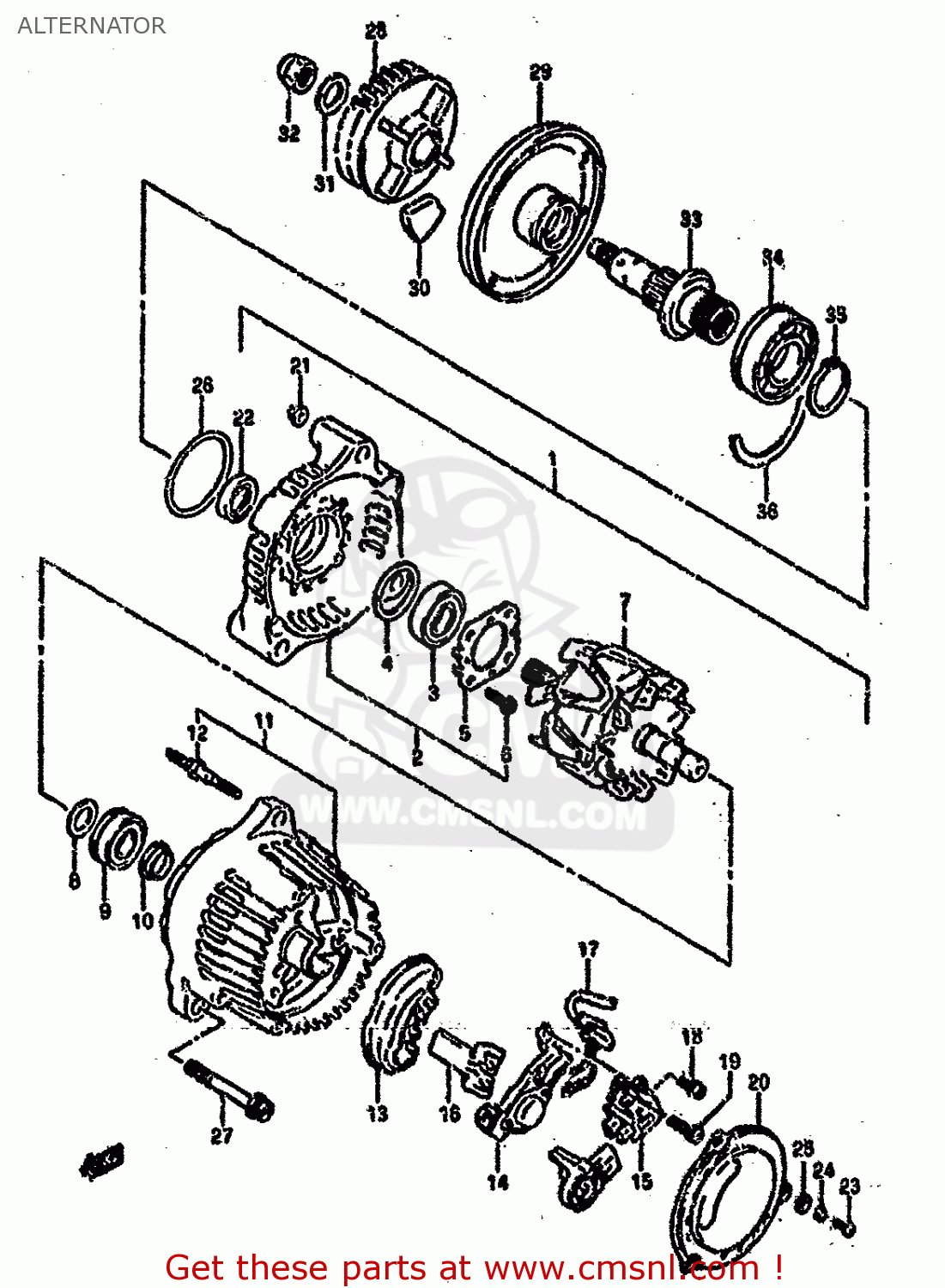

ALTERNATOR

ref

part #

description

quantity

1

3140017E20
ref: 1

ALTERNATOR ASSEMBLY

€ 676.00

2

3158017E00
ref: 2

FRAME,DRIVE END

€ 178.00

3

3161206B00
ref: 3

BEARING

€ 36.50

4

3161348B00
ref: 4

COVER,BEARING

€ 5.50

5

3158585251
ref: 5

RETAINER,BEARING

€ 9.50

6

3158617E00
ref: 6

SCREW,BEARING RETAINER

€ 2.50

7

3171017E20
ref: 7

ROTOR ASSEMBLY

€ 401.00

8

3161382610
ref: 8

COVER,BEARING

€ 3.50

9

3161248B00
ref: 9

BEARING

€ 42.50

10

3161327A10
ref: 10

COVER(2)

€ 5.50

11

3161117E00
ref: 11

FRAME,END

€ 182.50

12

3158785250
ref: 12

STUD BOLT

€ 9.00

13

3162127A00
ref: 13

HOLDER,RECTIFIER

€ 225.50

14

3250027A00
ref: 14

REGULATOR

€ 321.00

15

3165648B00
ref: 15

HOLDER,BRUSH

€ 55.50

16

3168717E00
ref: 16

COVER,RECTIFIER

€ 4.50

17

3148017E00
ref: 17

WIRE,LEAD

€ 27.50

18

0211204063
ref: 18

SCREW 4X6

€ 2.00

19

3168827A00
ref: 19

SCREW

€ 2.50

20

3161417E00
ref: 20

COVER

€ 31.50

21

0831000053
ref: 21

NUT

€ 2.50

22

3178027X50
ref: 22

SERVICE KIT(A)

€ 47.50

23

0211205085
ref: 23

SCREW

€ 2.00

24

0832121055
ref: 24

WASHER,LOCK

€ 3.00

25

0832221055
ref: 25

WASHER,5MM

€ 2.50

26

3115617E00
ref: 26

O RING

€ 4.00

27

0712008653
ref: 27

BOLT

€ 4.00

28

2273021E00
ref: 28

GEAR,GENERATOR DRIVEN

€ 163.00

29

2273421E00
ref: 29

HOUSING,GENERATOR DAMPER

€ 160.50

30

2123117E10
ref: 30

DAMPER,GENERATOR

€ 12.00

31

0821112243
ref: 31

WASHER

€ 3.00

32

0915912010
ref: 32

NUT

€ 4.00

33

2273221E00
ref: 33

SHAFT,GENERATOR DRIVE

€ 146.50

34

0926225110
ref: 34

BEARING(25X52X15)

€ 23.50

35

0833131256
ref: 35

CIRCLIP

€ 2.00

36

0939052003
ref: 36

C RING

€ 2.00
