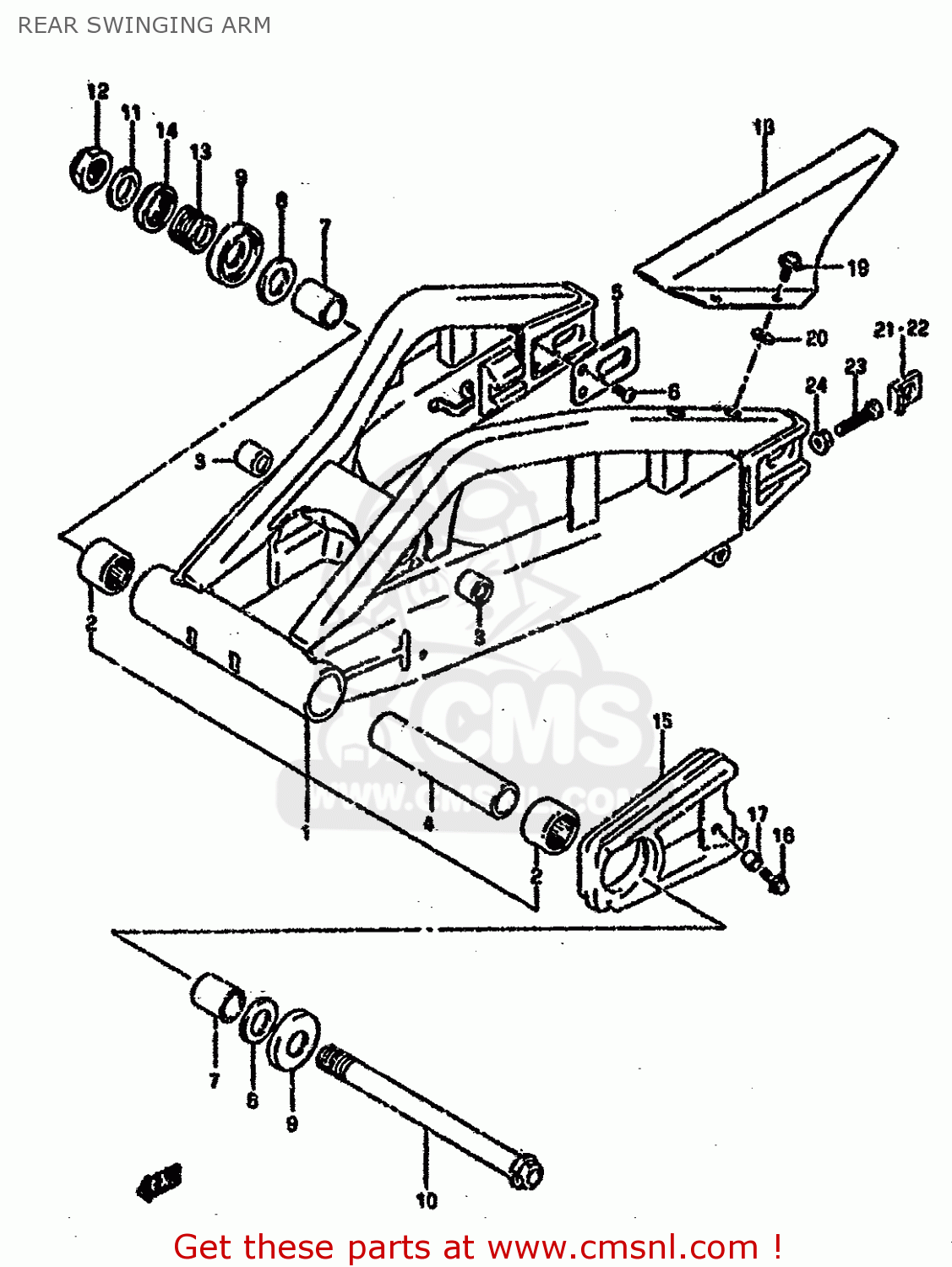

REAR SWINGING ARM

ref

part #

description

quantity

1

6100017E11
ref: 1

SWING ARM ASSEMBLY,REAR

€ 1,599.50

2

0926330040
ref: 2

BEARING(30X40X25)

€ 31.50

3

0926317039
ref: 3

BEARING(17X24X20)

€ 18.00

4

0918025099
ref: 4

SPACER (25.4X31.8X157.9)

€ 17.50

5

6112417E10
ref: 5

PLATE,RR SWING ARM BRKT

€ 4.50

6

0214206103
ref: 6

SCREW 6X10

€ 2.00

7

6125117E10
ref: 7

SPACER,REAR SWING ARM PIVOT

€ 7.00

8

0821125481
ref: 8

WASHER

€ 5.50

9

6126217E10
ref: 9

DUST SEAL,RR SWGARM PIVOT

€ 6.50

10

6121117E10
ref: 10

SHAFT,REAR SWING ARM PIVOT

€ 77.50

11

0916025070
ref: 11

WASHER(25.2X42X3.2)

€ 4.50

12

0915925001
ref: 12

NUT

€ 29.00

13

6121317E10
ref: 13

BOLT,REAR SWING ARM PIVOT

€ 45.50

14

6121417E10
ref: 14

NUT,REAR SWING ARM PIVOT BOLT

€ 25.50

15

6127317E11
ref: 15

BUFFER,CHAIN TOUCH DEFENSE

€ 38.50

16

0911606111
ref: 16

BOLT 6X20,WITH PLAIN WASHER

€ 2.00

17

0918006002
ref: 17

SPACER

€ 2.00

18

6131117E10
ref: 18

CASE,CHAIN

€ 119.00

19

0913606022
ref: 19

SCREW(6X20)

€ 2.50

20

0916006006
ref: 20

WASHER

€ 2.00

21

6144617E10
ref: 21
LH

WASHER,CHAIN ADJUSTER

€ 28.50

22

6144627C20
ref: 22
RH

WASHER,CHAIN ADJUSTER

€ 23.50

23

0910008287
ref: 23

BOLT(8X50)

€ 3.00

24

0831610083
ref: 24

NUT

€ 3.00
