TRANSMISSION

GSXR750SP 1994 (R) FRANCE GERMANY (E04 E22)

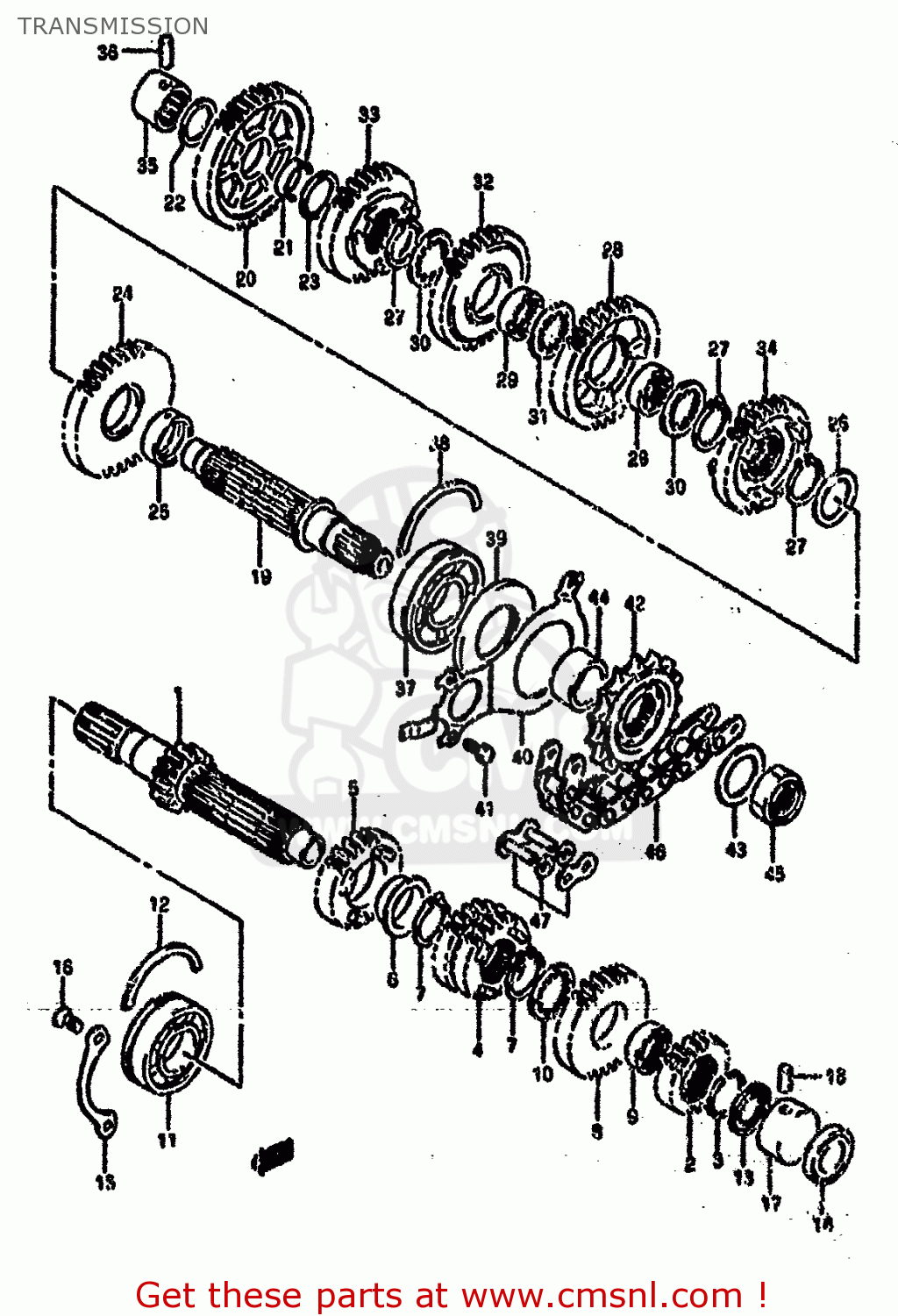

Transmission diagram GSXR750SP 1994 (R) FRANCE GERMANY (E04 E22)

TRANSMISSION GSXR750SP 1994 (R) FRANCE GERMANY (E04 E22)
TRANSMISSION GSXR750SP 1994 (R) FRANCE GERMANY (E04 E22)
TRANSMISSION GSXR750SP 1994 (R) FRANCE GERMANY (E04 E22)
prices are in EUR
ref
part #
description
quantity
1
2412117E60
ref: 1
COUNTERSHAFT (NT:15)
€ 1,006.50
2
2422117E60
ref: 2
GEAR,2ND DRIVE (NT:16)
€ 200.50
3
0938027004
ref: 3
CIRCLIP
0938027004
€ 3.50
4
2423117E60
ref: 4
GEAR,3&4TH DRIVE CA(NT:18/24)
€ 760.50
5
2425117E60
ref: 5
GEAR,5TH DRIVE B(NT:25)
€ 597.50
6
0930128001
ref: 6
BUSH(28X32X2)
0930128001
€ 19.50
7
0938027001
ref: 7
CIRCLIP
0938027001
€ 2.00
8
2426117E60
ref: 8
GEAR,6TH DRIVE (NT:22)
€ 456.50
9
2426217E00
ref: 9
BUSHING,SIXTH DRIVE GEAR
€ 29.00
10
0916727001
ref: 10
WASHER,LOCK
0916727001
€ 3.50
11
0926225051
ref: 11
BEARING(25X62X17)
0926225051
€ 59.50
12
0939062006
ref: 12
C-RING
0939062006
€ 5.00
13
0928520006
ref: 13
SEAL,OIL(20X31.2X2.7)
0928520006
€ 7.00
14
2311627A30
ref: 14
CAP,COUNTER SHAFT,L
2311627A30
€ 10.00
15
2474127A00
ref: 15
RETAINER,CNTR SHAFT BEARING
2474127A00
€ 7.00
16
0212206163
ref: 16
SCREW ,6X16
0212206163
€ 2.00
17
0926320069
ref: 17
BEARING(20X34X17.5)
0926320069
€ 39.50
18
0422107129
ref: 18
PIN
0422107129
€ 1.50
19
2413117E10
ref: 19
SHAFT,DRIVE
2413117E10
€ 212.50
20
2431117E60
ref: 20
GEAR,1ST DRIVEN (NT:36)
€ 712.50
21
0930022008
ref: 21
BUSH(22X26X9)
0930022008
€ 10.50
22
0821120341
ref: 22
WASHER
0821120341
€ 2.00
23
0821122341
ref: 23
WASHER
0821122341
€ 3.00
24
2432117E60
ref: 24
GEAR,2ND DRIVEN (NT:31)
€ 788.50
25
0930028003
ref: 25
BUSH(28X32X9.5)
0930028003
€ 19.50
26
0821128381
ref: 26
WASHER, THRUST
0821128381
€ 3.50
27
0938027001
ref: 27
CIRCLIP
0938027001
€ 2.00
28
2433117E60
ref: 28
GEAR 3RD DRIVEN B(NT:36)
€ 625.50
29
2433217E02
ref: 29
BUSH,3RD DRIVEN GEAR
2433217E02
€ 25.00
30
0916727001
ref: 30
WASHER,LOCK
0916727001
€ 3.50
31
0916727002
ref: 31
WASHER,LOCK
0916727002
€ 5.00
32
2434117E60
ref: 32
GEAR,4TH DRIVEN (NT:29)
€ 675.50
33
2435117E60
ref: 33
GEAR,5TH DRIVEN (NT:33)
€ 817.50
34
2436117E60
ref: 34
GEAR,6TH DRIVEN B(NT:27)
€ 753.00
35
0926320040
ref: 35
BEARING(20X34X20)
0926320040
€ 42.50
36
0422107209
ref: 36
PIN
0422107209
€ 1.50
37
0926228025
ref: 37
BEARING(28X70X18)
0926228025
€ 97.50
38
0939070001
ref: 38
C RING
0939070001
€ 5.50
39
0928336008
ref: 39
SEAL,OIL(34.8X70X6)
0928336008
€ 16.50
40
2475117E00
ref: 40
RETAINER,DRIVE SHAFT OIL SEAL
2475117E00
€ 9.00
41
0150006123
ref: 41
BOLT
0150006123
€ 2.00
42
2751021A00
ref: 42
SPROCKET,ENGINE
€ 62.50
43
0821125402
ref: 43
WASHER,THRUST
0821125402
€ 3.00
44
0918025098
ref: 44
SPACER(25X36X17.7)
0918025098
€ 19.00
45
0915920004
ref: 45
NUT
0915920004
€ 12.00
46
2760017E20108
ref: 46
CHAIN ASSEMBLY RK50GSVZ1.1
€ 258.00
47
2762017E20
ref: 47
JOINT SET,DRIVE CHAIN
€ 8.00
