RADIATOR

GSXR750SP 1994 (R) FRANCE GERMANY (E04 E22)

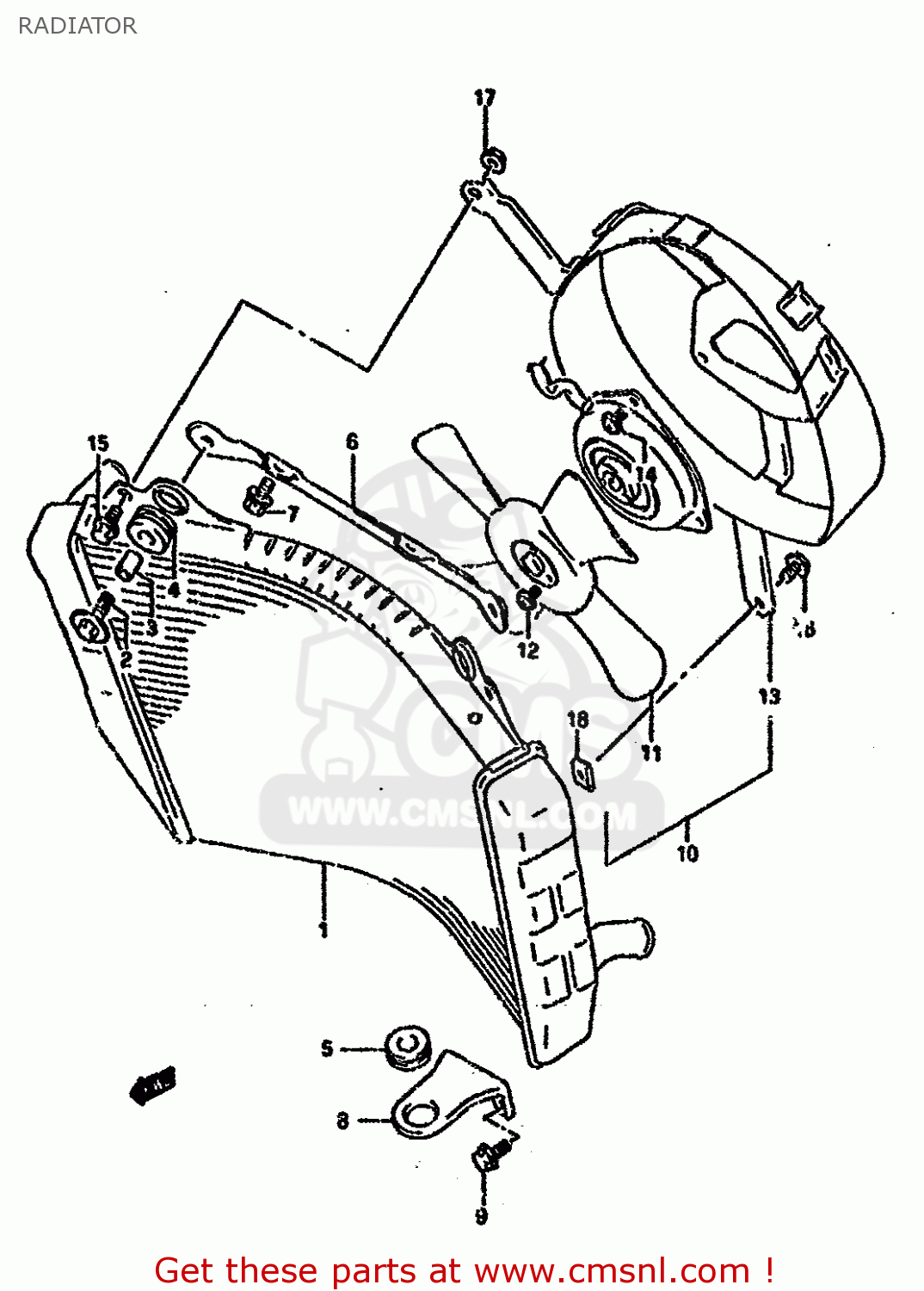

Radiator diagram GSXR750SP 1994 (R) FRANCE GERMANY (E04 E22)

prices are in EUR

ref

part #

description

quantity

1771017E00
ref: 1

RADIATOR ASSY,WATER

€ 993.00

0911606147
ref: 2

BOLT(6X25)

€ 4.00

0918007004
ref: 3

SPACER(6.5X10.5X12)

€ 2.50

1778719A00
ref: 4

CUSHION,RADIATOR LWR

€ 3.50

0932012053
ref: 5

CUSHION

€ 7.50

1774017E00
ref: 6

BRACKET COMP,RADIATOR

€ 20.00

0158006123
ref: 7

BOLT

€ 2.00

1775117E00
ref: 8

BRACKET,RADIATOR,LOWER

€ 10.00

0158006163
ref: 9

BOLT

€ 2.50

1780017E02
ref: 10

FAN ASSEMBLY,RADIATOR

€ 548.00

1782017E00
ref: 11

FAN

€ 48.50

0211204063
ref: 12

SCREW 4X6

€ 2.00

1777017E00
ref: 13

SHROUD

€ 83.00

0211215083
ref: 14

SCREW

€ 2.00

0155006123
ref: 15

BOLT

€ 2.50

0155006103
ref: 16

BOLT

€ 2.50

0831610063
ref: 17

NUT

€ 2.50

1776239A00
ref: 18

NUT,RADIATOR COVER

€ 3.50
