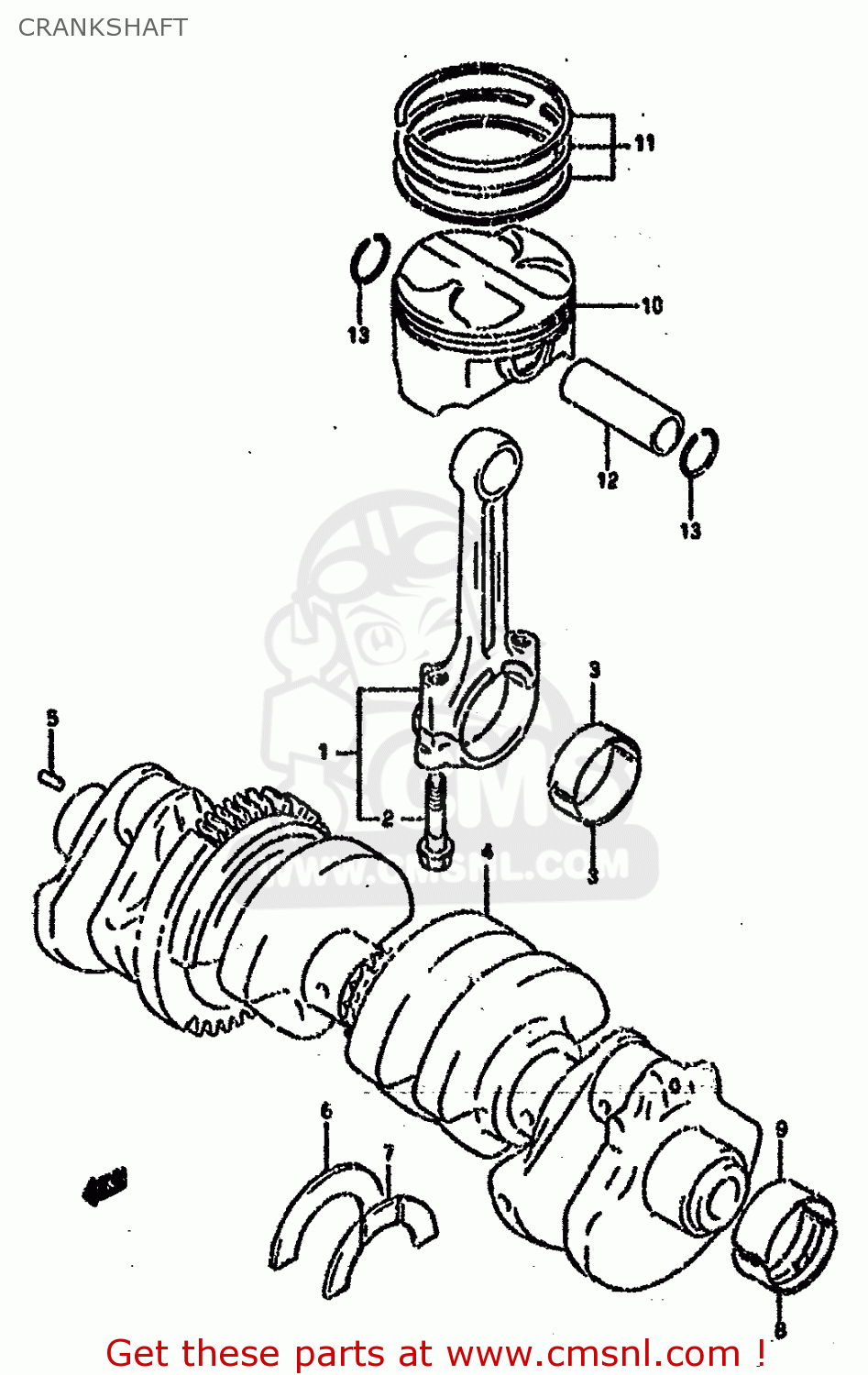

CRANKSHAFT

ref

part #

description

quantity

1

1216017E00
ref: 1

CONNECTING ROD ASSEMBLY

€ 197.00

2

1216327A52
ref: 2

BOLT,CONNECTING ROD

€ 20.00

3-1

1216417E010A0
ref: 3-1

BEARING,CRANK PIN

€ 14.50

3-2

1216417E010B0
ref: 3-2

BEARING,CRANK PIN

€ 14.50

3-3

1216417E010C0
ref: 3-3

BEARING,CRANK PIN

€ 15.00

3-4

1216417E010D0
ref: 3-4

BEARING,CRANK PIN

€ 15.50

4

1200017821
ref: 4

CRANKSHAFT SET

€ 1,346.00

5

0422104089
ref: 5

PIN

€ 1.50

6

1222817E000D0
ref: 6

BEARING,CRANK THRUST(GREEN)

€ 8.00

7-1

1222817E000A0
ref: 7-1

BEARING,CRANK THRUST(RED)

€ 7.50

7-2

1222817E000B0
ref: 7-2

BEARING,CRANK THRUST(BLACK)

€ 7.50

7-3

1222817E000C0
ref: 7-3

BEARING,CRANK THRUST(BLUE)

€ 7.50

7-4

1222817E000D0
ref: 7-4

BEARING,CRANK THRUST(GREEN)

€ 8.00

7-5

1222817E000E0
ref: 7-5

BEARING,CRANK THRUST(YELLOW)

€ 7.50

7-6

1222817E000F0
ref: 7-6

BEARING,CRANK THRUST(WHITE)

€ 7.50

8-1

1222917E000A0
ref: 8-1
LOWER

BEARING,CRANKSHAFT(GREEN)

€ 15.50

8-2

1222917E000B0
ref: 8-2

BEARING,CRANKSHAFT(BLACK)

€ 16.50

8-3

1222917E000C0
ref: 8-3

BEARING,CRANKSHAFT(BROWN)

€ 16.50

8-4

1222917E000D0
ref: 8-4

BEARING,CRANKSHAFT(YELLOW)

€ 15.50

9-1

1222917E100A0
ref: 9-1
UPPER

BEARING,CRANKSHAFT(GREEN)

€ 14.00

9-2

1222917E100B0
ref: 9-2

BEARING,CRANKSHAFT(BLACK)

€ 16.50

9-3

1222917E100C0
ref: 9-3

BEARING,CRANKSHAFT(BROWN)

€ 16.50

9-4

1222917E100D0
ref: 9-4

BEARING,CRANKSHAFT(YELLOW)

€ 15.00

10-1

1211117E110F0
ref: 10-1

PISTON (70.00MM)

€ 91.50

10-2

1211117E11050
ref: 10-2
OPT

PISTON

€ 150.50

10-3

1211117E11100
ref: 10-3
OPT

PISTON

€ 150.50

11-1

1214017E10
ref: 11-1

RING SET,PISTON

€ 83.50

11-2

1214017E10050
ref: 11-2
OPT

RING SET,PISTON (OS:0.5)

€ 53.50

11-3

1214017E10100
ref: 11-3
OPT

RING SET,PISTON (OS:1.0)

€ 51.00

12

1215107D00
ref: 12

PIN,PISTON

€ 13.50

13

0938118003
ref: 13

CIRCLIP

€ 3.00

all assemblies
