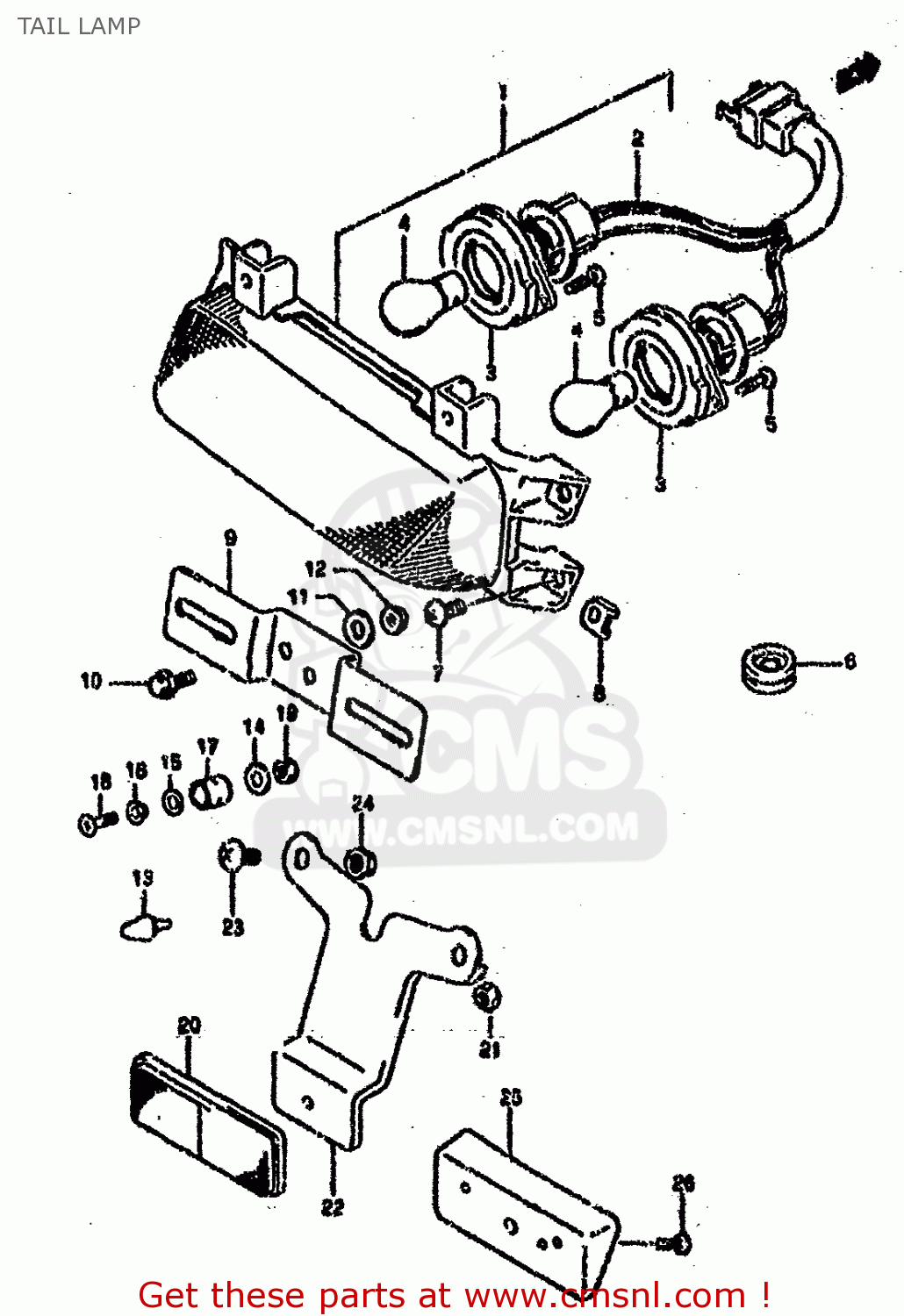

TAIL LAMP

ref

part #

description

quantity

1

3571017E00
ref: 1

LAMP ASSY, REAR COMBINATION

€ 208.00

2

3571817E00
ref: 2

SOCKET & CORD ASSY

€ 70.00

3

3576548B21
ref: 3

CUSHION

€ 10.50

4

0947112083
ref: 4

BULB(12V21/5W)

€ 6.00

5

0321104123
ref: 5

SCREW

€ 1.50

6

0930807013
ref: 6

GROMMET

€ 3.50

7

0214205123
ref: 7

SCREW 5X12

€ 1.50

8

0914805021
ref: 8

NUT

€ 1.50

9

3592717E00
ref: 9

BRACKET,LICENSE PLATE

€ 14.00

10

0155006163
ref: 10

BOLT

€ 2.50

11

0916006088
ref: 11

WASHER(6.5X20X1.6)

€ 2.00

12

0831620063
ref: 12

NUT

€ 2.00

13-1

0932106028
ref: 13-1

CUSHION

€ 3.00

13-2

0932106026
ref: 13-2
E22

CUSHION

€ 3.50

14

0916006006
ref: 14
E22

WASHER

€ 2.00

15

0916006079
ref: 15
E22

WASHER(6.5X16X1.2)

€ 2.00

16

0916906032
ref: 16
E22

WASHER

€ 2.50

17

0932008058
ref: 17
E22

CUSHION, PLATE

€ 3.00

18

0214206203
ref: 18
E22

SCREW

€ 2.00

19

0831921066
ref: 19
E22

NUT

€ 2.00

20

3597000A21
ref: 20

REFLECTOR ASSEMBLY,REAR

€ 22.00

21-1

0831000053
ref: 21-1

NUT

€ 2.50

21-2

0831610053
ref: 21-2
E22

NUT

€ 2.50

22

3597418D00
ref: 22

BRACKET,REAR,REAR

€ 3.50

23

0214206123
ref: 23

SCREW 6X12

€ 2.00

24

0831620063
ref: 24

NUT

€ 2.00

25

3597718D00
ref: 25
E22

SPACER,RR RR

€ 8.00

26

0354104123
ref: 26
E22

SCREW

€ 1.50

all assemblies
