Buy Suzuki GSXR Parts Online


COWLING FITTING SET

GSXR750SP 1994 (R) FRANCE GERMANY (E04 E22)

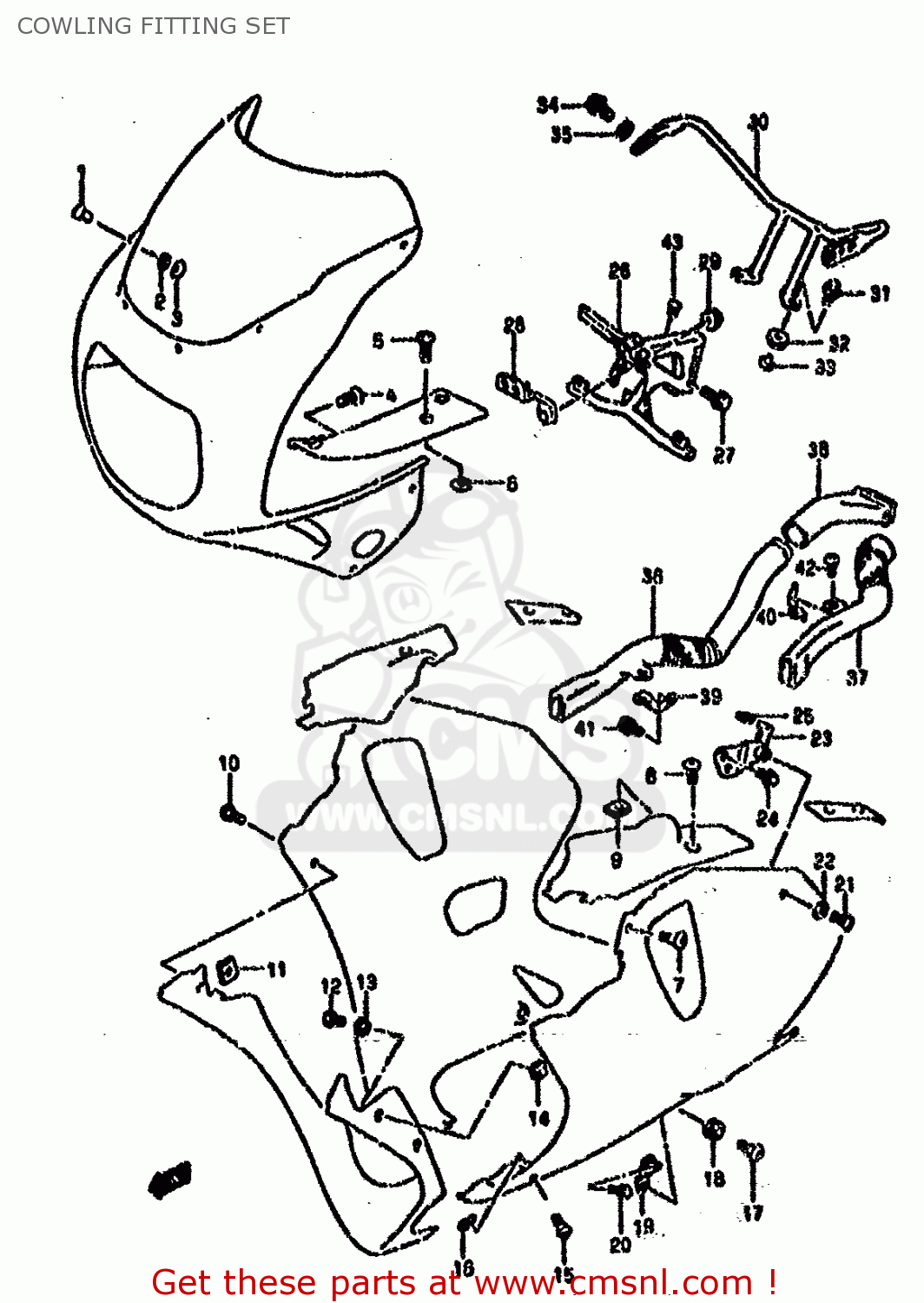

Cowling fitting set diagram GSXR750SP 1994 (R) FRANCE GERMANY (E04 E22)

COWLING FITTING SET GSXR750SP 1994 (R) FRANCE GERMANY (E04 E22)
COWLING FITTING SET GSXR750SP 1994 (R) FRANCE GERMANY (E04 E22)
COWLING FITTING SET GSXR750SP 1994 (R) FRANCE GERMANY (E04 E22)
prices are in EUR
ref
part #
description
quantity
1
9461622D00
ref: 1
PIN,WINDSCREEN
9461622D00
€ 2.50
2
0932004007
ref: 2
CUSHION
0932004007
€ 3.00
3
0914804032
ref: 3
NUT
0914804032
€ 2.50
4
0354105103
ref: 4
SCREW 5X10
0354105103
€ 1.50
5
0324105123
ref: 5
SCREW L:12
0324105123
€ 1.50
6
0914805013
ref: 6
NUT
0914805013
€ 1.50
7
0913905055
ref: 7
SCREW(5X16)
0913905055
€ 6.00
8
0324105123
ref: 8
SCREW L:12
0324105123
€ 1.50
9
0914805013
ref: 9
NUT
0914805013
€ 1.50
10
0913905054
ref: 10
SCREW(5X16)
0913905054
€ 6.00
11
9448412C11
ref: 11
NUT,RH & CTR UNDER COWLING
9448412C11
€ 6.50
12
0324105163
ref: 12
SCREW
0324105163
€ 1.50
13
0916105017
ref: 13
WASHER(5.2X14X1.5)
0916105017
€ 3.00
14
0914805013
ref: 14
NUT
0914805013
€ 1.50
15
0913905054
ref: 15
SCREW(5X16)
0913905054
€ 6.00
16
9448412C11
ref: 16
NUT,RH & CTR UNDER COWLING
9448412C11
€ 6.50
17
0913906087
ref: 17
SCREW(6X20)
0913906087
€ 4.00
18
0932009016
ref: 18
CUSHION
0932009016
€ 2.50
19-1
9474017E00
ref: 19-1
BRACKET,UNDER COWLING LWR,R
9474017E00
€ 9.50
19-2
9484017E01
ref: 19-2
BRACKET,UNDER COWLING LWR,L
9484017E01
€ 9.50
20
0911606027
ref: 20
BOLT
€ 2.00
21
0913906078
ref: 21
SCREW(6X10)
0913906078
€ 3.00
22
0916006053
ref: 22
WASHER
0916006053
€ 2.00
23-1
9453017E30
ref: 23-1
BRACKET,UNDER COWLING,UPPER
€ 26.00
23-2
9454017E30
ref: 23-2
BRACKET,UNDER COWLING UPR,L
9454017E30
€ 26.00
24
0155006123
ref: 24
BOLT
0155006123
€ 2.50
25
0914805038
ref: 25
NUT
0914805038
€ 2.50
26
9451017E20
ref: 26
BRACE,COWLING
9451017E20
€ 153.00
27
0155008303
ref: 27
BOLT
0155008303
€ 3.00
28
9442817E20
ref: 28
BRACKET,HEADLAMP
€ 22.00
29
0831610063
ref: 29
NUT
0831610063
€ 2.50
30
9452017E00
ref: 30
BRACE,RR VIEW MIRRORR
9452017E00
€ 152.00
31
0911606146
ref: 31
BOLT(6X25)
0911606146
€ 2.50
32
0932009009
ref: 32
CUSHION
0932009009
€ 5.00
33
0916906062
ref: 33
WASHER
0916906062
€ 3.00
34
0913606004
ref: 34
SCREW(6X12)
0913606004
€ 2.00
35
0916106023
ref: 35
WASHER(6.2X19X1.5)
0916106023
€ 3.50
36
9445117E00
ref: 36
PIPE,AIR INTAKE FR,R
€ 40.50
37
9445217E00
ref: 37
PIPE,AIR INTAKE FR,L
9445217E00
€ 40.50
38
9445346E00
ref: 38
PIPE,AIR INTAKE,REAR,RIGHT
9445346E00
€ 27.50
39
9445417E01
ref: 39
BRACKET,AIR INTAKE,RIGHT
9445417E01
€ 11.50
40
9445517E01
ref: 40
BRACKET,AIR INTAKE,LEFT
9445517E01
€ 10.00
41
0155006123
ref: 41
BOLT
0155006123
€ 2.50
42
0214206123
ref: 42
SCREW 6X12
0214206123
€ 2.00
43
0925009001
ref: 43
CAP(OD:14)
0925009001
€ 1.00
