STARTING MOTOR

GSXR750SP 1994 (R) FRANCE GERMANY (E04 E22)

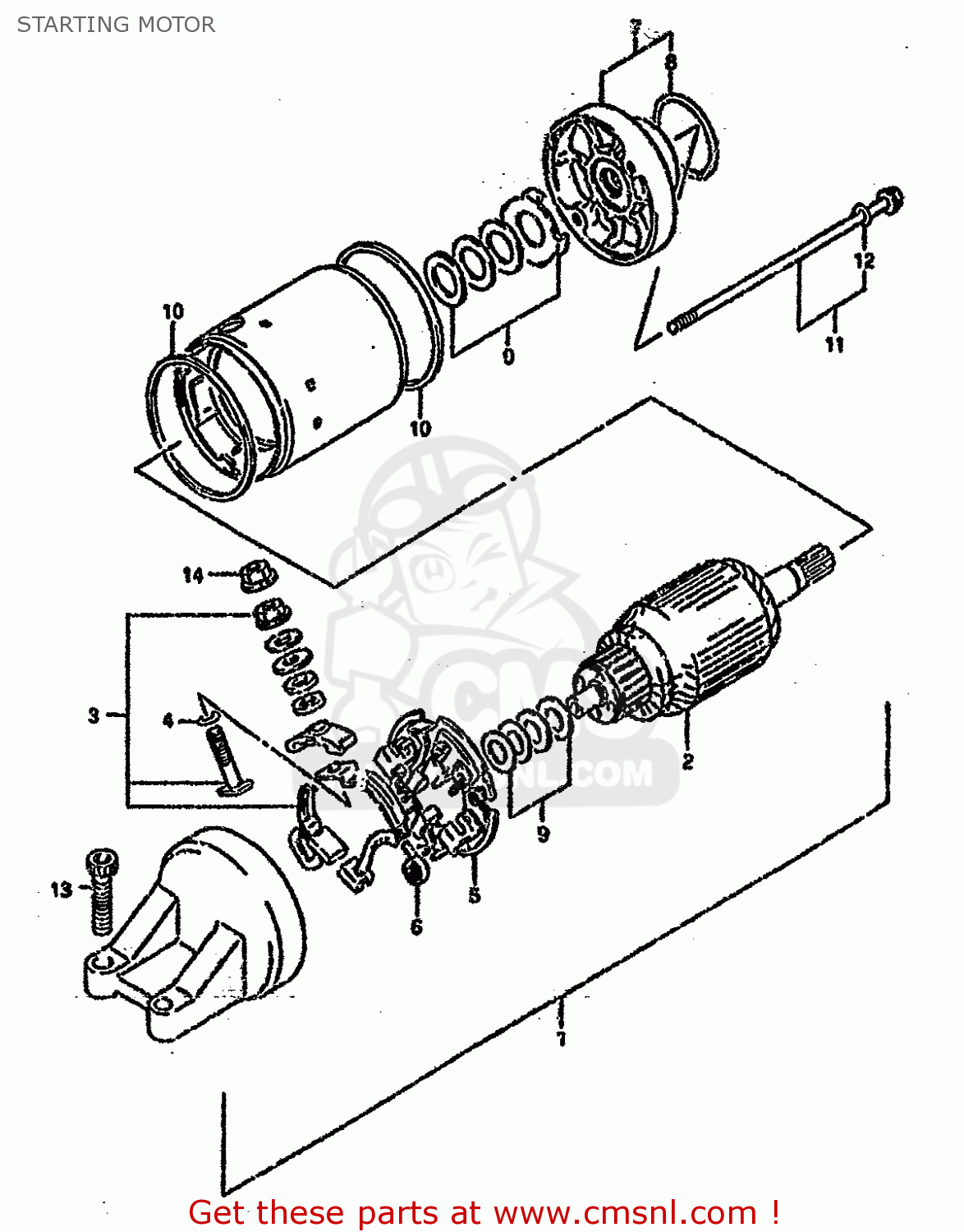

Starting motor diagram GSXR750SP 1994 (R) FRANCE GERMANY (E04 E22)

prices are in EUR

ref

part #

description

quantity

3110046E00
ref: 1

MOTOR ASSEMBLY,STARTING

€ 730.00

3131119C02
ref: 2

ARMATURE

€ 128.00

3113019B10
ref: 3

TERMINAL SET,BRUSH,PLUS

€ 27.50

3114349040
ref: 4

O RING

€ 3.00

3113246E00
ref: 5

BRUSH,HOLDER SET

€ 47.00

3113531300
ref: 6

SPRING,BRUSH

€ 4.00

3115046E00
ref: 7

BRACKET ASSEMBLY,FRONT

€ 85.00

3115648B00
ref: 8

O RING

€ 8.50

3117019B10
ref: 9

SHIM SET,STARTING MOTOR

€ 8.00

3126431300
ref: 10

O RING

€ 7.50

3128019B10
ref: 11

BOLT SET,STARTING MOTOR

€ 8.50

3114349040
ref: 12

O RING

€ 3.00

0712006253
ref: 13

BOLT,OIL PAN

€ 2.50

0836135066
ref: 14

NUT

€ 2.00

STARTING MOTOR

all assemblies
