CARBURETOR

GSXR750SP 1994 (R) FRANCE GERMANY (E04 E22)

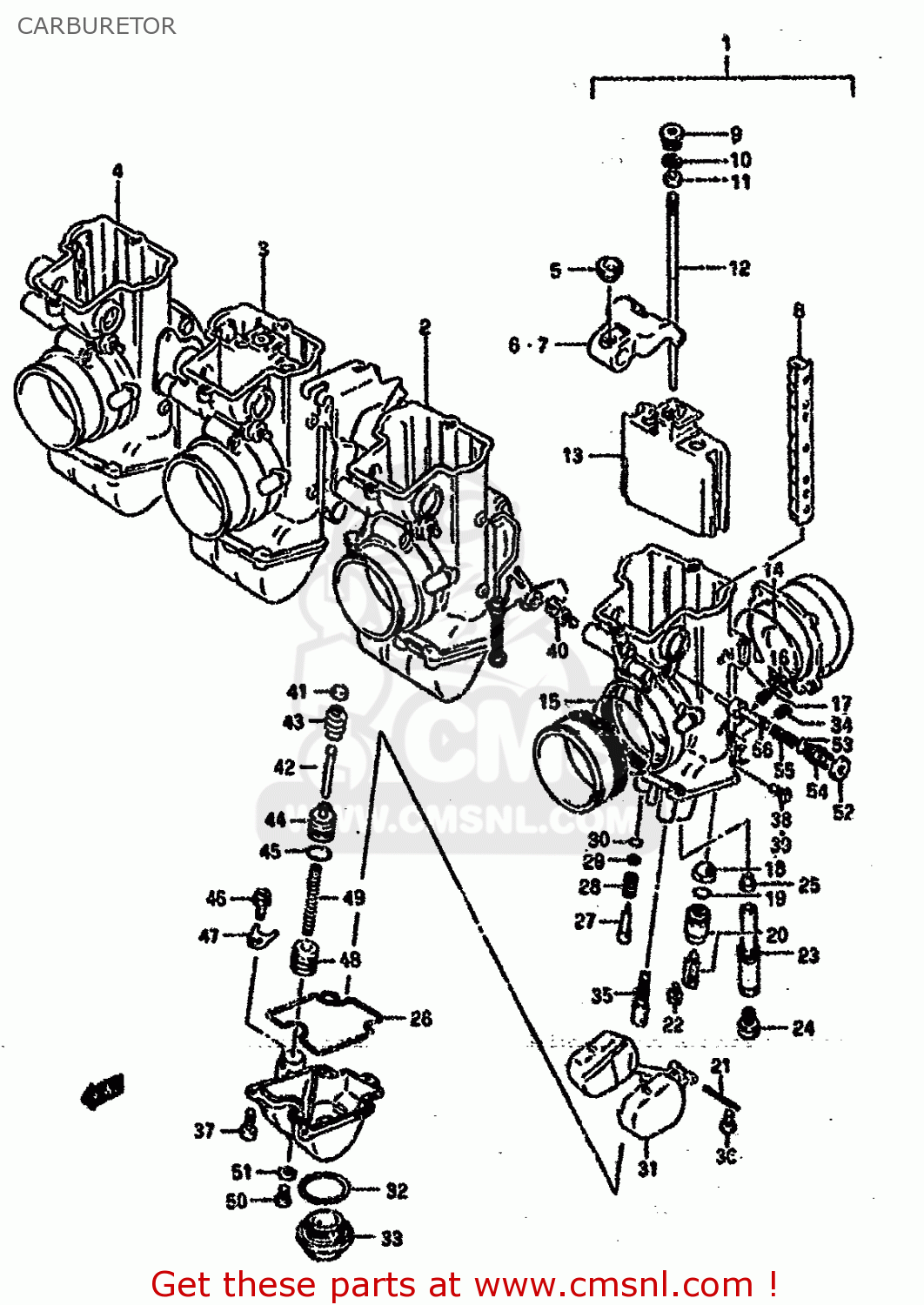

Carburetor diagram GSXR750SP 1994 (R) FRANCE GERMANY (E04 E22)

CARBURETOR GSXR750SP 1994 (R) FRANCE GERMANY (E04 E22)
CARBURETOR GSXR750SP 1994 (R) FRANCE GERMANY (E04 E22)
CARBURETOR GSXR750SP 1994 (R) FRANCE GERMANY (E04 E22)
prices are in EUR
ref
part #
description
quantity
1-1
1320118EA0
ref: 1-1
CARBURETOR ASSY,LH
€ 0.00
1-2
1320118EB0
ref: 1-2
E22
CARBURETOR ASSY,LH
€ 0.00
2-1
1320218EA0
ref: 2-1
CARBURETOR ASSY,ML
€ 0.00
2-2
1320218EB0
ref: 2-2
E22
CARBURETOR ASSY,ML
€ 0.00
3-1
1320318EA0
ref: 3-1
CARBURETOR ASSY,MR
€ 0.00
3-2
1320318EB0
ref: 3-2
E22
CARBURETOR ASSY,MR
€ 0.00
4-1
1320418EA0
ref: 4-1
CARBURETOR ASSY,RH
€ 0.00
4-2
1320418EB0
ref: 4-2
E22
CARBURETOR ASSY,RH
€ 0.00
5
1342418E60
ref: 5
LH,RH.MR
RING
€ 0.00
6
1355518E40
ref: 6
LH,RH,MR
LEVER ASSY
€ 0.00
7
1355518E00
ref: 7
ML
LEVER ASSY
€ 0.00
8
1369318E30
ref: 8
BEARING
€ 0.00
9
1344318E00
ref: 9
HOLDER
€ 0.00
10
1339417E60
ref: 10
E RING,MULTIPLE JET NOZZLE
1339417E60
€ 1.50
11
1338744030
ref: 11
RING
1338744030
€ 5.00
12
1338318E20
ref: 12
NEEDLE,JET (9D1-52-4)
€ 24.50
13
1355118E00
ref: 13
VALVE,PISTON (1.0)
€ 0.00
14
1327818E00
ref: 14
O RING
1327818E00
€ 9.00
15
1327818E00
ref: 15
O RING
1327818E00
€ 9.00
16
1337418E00
ref: 16
O RING
€ 0.00
17-1
0949270007
ref: 17-1
LH,RH
JET,AIR (70)
€ 8.50
17-2
0949230015
ref: 17-2
ML,MR
JET,AIR (150)
€ 13.00
17-3
0949226008
ref: 17-3
E22,ML,MR
JET,AIR (130)
€ 0.00
18
1337665010
ref: 18
FILTER
€ 6.50
19
1337444080
ref: 19
O-RING,NEEDLE VALVE
1337444080
€ 6.00
20
1337018E00
ref: 20
VALVE ASSY,NEEDLE (2.8)
€ 49.00
21
1325420010
ref: 21
PIN,FLOAT
1325420010
€ 3.00
22
1360205A10
ref: 22
SCREW
1360205A10
€ 4.00
23
1342418E70
ref: 23
HOLDER,JET
€ 0.00
24-1
0949123017
ref: 24-1
JET,MAIN(117.5)
0949123017
€ 11.00
24-2
0949122016
ref: 24-2
E22
JET,MAIN(110)
0949122016
€ 7.00
25
0949400832
ref: 25
JET,NEEDLE (P-4)
€ 0.00
26
1327818E10
ref: 26
GASKET
1327818E10
€ 21.00
27
1327947070
ref: 27
SCREW,PILOT
1327947070
€ 11.50
28
1326847070
ref: 28
SPRING
1326847070
€ 5.00
29
1329129900
ref: 29
WASHER
1329129900
€ 2.00
30
1329529900
ref: 30
O RING,PILOT AIR SCREW
1329529900
€ 4.00
31
1325018E10
ref: 31
FLOAT ASSY
€ 0.00
32
1324941310
ref: 32
O RING,DRAIN PLUG
1324941310
€ 5.00
33
1360217E20
ref: 33
BOLT,DRAIN
€ 0.00
34
0949324013
ref: 34
JET,PILOT AIR(120)
0949324013
€ 15.50
35
0949220024
ref: 35
JET,PILOT(20)
0949220024
€ 15.50
36
1360204088
ref: 36
SCREW
1360204088
€ 1.50
37
1360218E20
ref: 37
SCREW
€ 4.00
38
1360218E30
ref: 38
LH,ML
SCREW
€ 0.00
39
1360218E30
ref: 39
RH,MR
SCREW
€ 0.00
40
1360218E60
ref: 40
LH,ML
SCREW
€ 0.00
41
1349509400
ref: 41
LH,ML
CAP
1349509400
€ 3.50
42
1348718E30
ref: 42
LH,ML
ROD
€ 0.00
43
1349518E00
ref: 43
LH,ML
CAP
1349518E00
€ 11.50
44
1355718E00
ref: 44
LH,ML
RING
€ 0.00
45
1327818E00
ref: 45
LH,ML
O RING
1327818E00
€ 9.00
46
1360104088
ref: 46
LH,ML
SCREW
€ 2.00
47
1337339110
ref: 47
LH,ML
PLATE
1337339110
€ 6.50
48
1341118E00
ref: 48
LH,ML
PLUNGER
€ 0.00
49
1341709110
ref: 49
LH,ML
SPRING
1341709110
€ 6.00
50
1360217E10
ref: 50
SCREW
€ 0.00
51
1360618E10
ref: 51
WASHER
€ 0.00
52
1368231210
ref: 52
CAP,STARTER VALVE
1368231210
€ 5.00
53
1327818E20
ref: 53
O RING
1327818E20
€ 7.00
54
1341818E00
ref: 54
HOLDER,GUIDE
€ 0.00
55
1341743010
ref: 55
SPRING
1341743010
€ 3.50
56
1341105300
ref: 56
PLUNGER
1341105300
€ 23.50
