SIGNAL GENERATOR

GSXR750SP 1994 (R) FRANCE GERMANY (E04 E22)

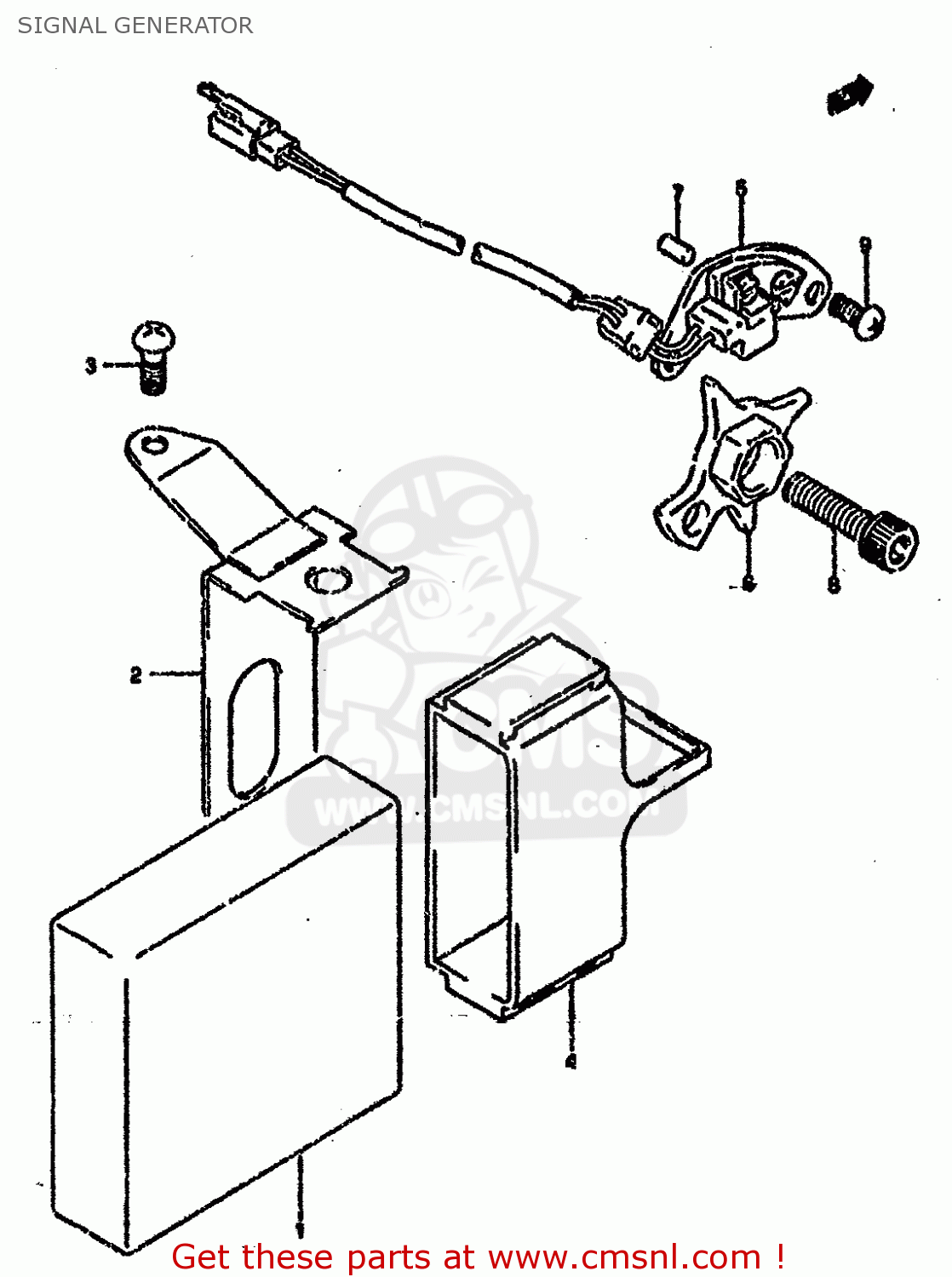

Signal generator diagram GSXR750SP 1994 (R) FRANCE GERMANY (E04 E22)

SIGNAL GENERATOR GSXR750SP 1994 (R) FRANCE GERMANY (E04 E22)

SIGNAL GENERATOR GSXR750SP 1994 (R) FRANCE GERMANY (E04 E22)

prices are in EUR

ref

part #

description

quantity

1-1

3290017EE0
ref: 1-1
E4

IGNITER ASSY

€ 692.00

1-2

3290017EF0
ref: 1-2
E22

IGNITER ASSY

€ 681.00

2

3293117E11
ref: 2

BRACKET

€ 0.00

3

0214206163
ref: 3

SCREW

€ 2.50

4

3298017E00
ref: 4

CUSHION

€ 0.00

5

3311017E00
ref: 5

STARTER,SIGNAL GENERATOR

€ 203.50

6

3312017E20
ref: 6

ROTOR,SIGNAL GENERATOR

€ 115.00

7

0422104089
ref: 7

PIN

€ 1.50

8

0713008303
ref: 8

BOLT

€ 3.00

9

0214205103
ref: 9

SCREW

€ 2.50
