Buy Suzuki GSXR Parts Online


TURNSIGNAL LAMP

GSXR750SP 1994 (R) FRANCE GERMANY (E04 E22)

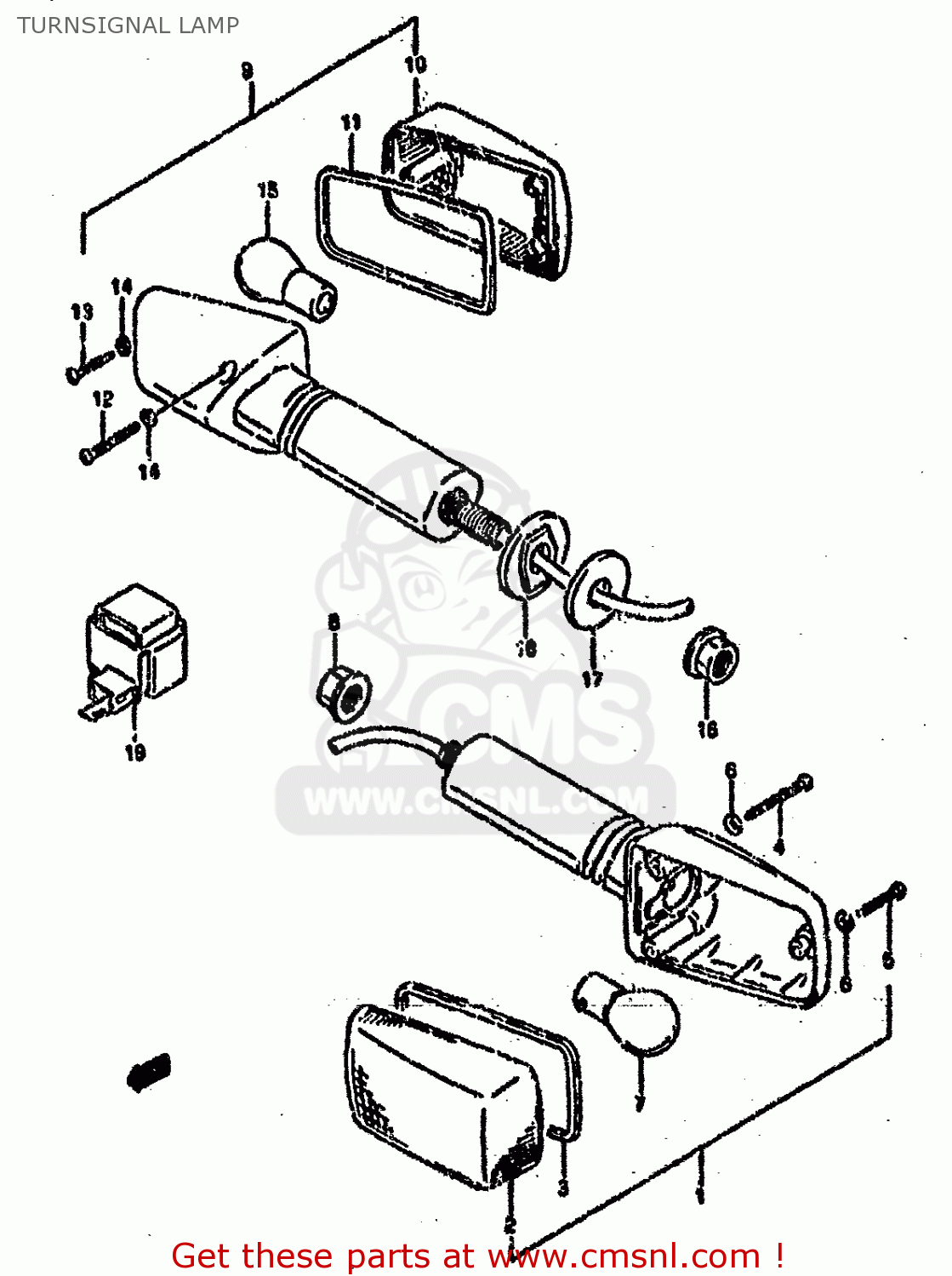

Turnsignal lamp diagram GSXR750SP 1994 (R) FRANCE GERMANY (E04 E22)

TURNSIGNAL LAMP GSXR750SP 1994 (R) FRANCE GERMANY (E04 E22)
TURNSIGNAL LAMP GSXR750SP 1994 (R) FRANCE GERMANY (E04 E22)
TURNSIGNAL LAMP GSXR750SP 1994 (R) FRANCE GERMANY (E04 E22)
prices are in EUR
ref
part #
description
quantity
1-1
3560129E10
ref: 1-1
LAMP ASSEMBLY,FRONT TURN SIGNAL
3560129E10
€ 57.50
1-2
3560129EA0
ref: 1-2
E22
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 78.00
2
3561217C20
ref: 2
LENS
3561217C20
€ 6.50
3
3561327A00
ref: 3
GASKET (NAS)
3561327A00
€ 3.00
4
3562327A00
ref: 4
SCREW(3X30)
3562327A00
€ 1.50
5
3572540511
ref: 5
SCREW
3572540511
€ 1.50
6
3562727A02
ref: 6
GASKET (NAS)
3562727A02
€ 1.50
7
0947112045
ref: 7
BULB(12V21W)
0947112045
€ 5.00
8
0831000103
ref: 8
NUT
0831000103
€ 2.00
9-1
3560321E30
ref: 9-1
LAMP ASSY,RR TURNSIGNAL
3560321E30
€ 135.50
9-2
3560321EC0
ref: 9-2
LAMP ASSY,RR TURNSIGNAL
3560321EC0
€ 93.50
10
3565217C20
ref: 10
LENS
3565217C20
€ 6.50
11
3561327A00
ref: 11
GASKET (NAS)
3561327A00
€ 3.00
12
3562327A00
ref: 12
SCREW(3X30)
3562327A00
€ 1.50
13
3572540511
ref: 13
SCREW
3572540511
€ 1.50
14
3562727A02
ref: 14
GASKET (NAS)
3562727A02
€ 1.50
15
0947112045
ref: 15
BULB(12V21W)
0947112045
€ 5.00
16
0831000103
ref: 16
NUT
0831000103
€ 2.00
17
0916010501
ref: 17
WASHER(10.5X30X2.3)
0916010501
€ 2.50
18
3569517C00
ref: 18
SPACER,RR TURNSIGNAL
3569517C00
€ 3.00
19
3861045D01
ref: 19
RELAY ASSY,TURNSIGNAL LAMP
3861045D01
€ 68.50
