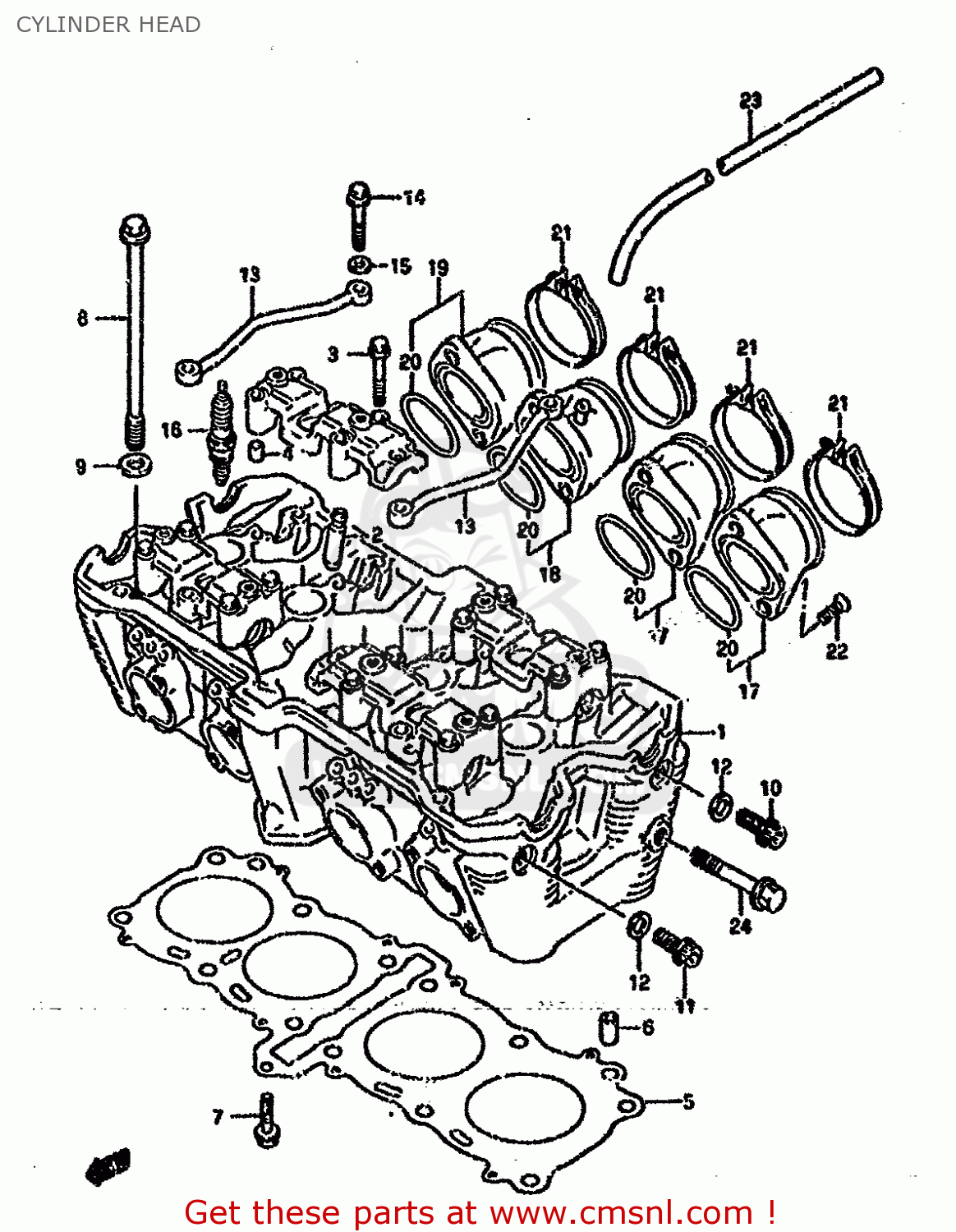

CYLINDER HEAD

ref

part #

description

quantity

1

1110017E20
ref: 1

HEAD ASSEMBLY,CYLINDER

€ 1,517.00

2

1111517E70
ref: 2

GUIDE,VALVE

€ 23.00

3

0910306165
ref: 3

BOLT(6X45)

€ 2.50

4

0920608001
ref: 4

PIN(6.2X8X11)

€ 2.00

5

1114117E01
ref: 5

GASKET,CYLINDER HEAD

€ 90.50

6

0421111189
ref: 6

PIN

€ 2.00

7

0155006303
ref: 7

BOLT

€ 2.50

8

0910310272
ref: 8

BOLT(10X160)

€ 14.00

9

0916010082
ref: 9

WASHER(10.5X19X2)

€ 2.00

10

0712008163
ref: 10

BOLT

€ 3.00

11

0712008163
ref: 11

BOLT

€ 3.00

12

0916808015
ref: 12

GASKET(8.2X14X1).6 (NAS)

€ 2.50

13

1113117E00
ref: 13

PIPE,CYLINDER HEAD OIL

€ 41.00

14

0910306026
ref: 14

BOLT(6X39)

€ 2.00

15

0832201063
ref: 15

WASHER

€ 2.00

16-1

0948200458
ref: 16-1

PLUG,SPARK(NGK CR9E)

€ 8.50

16-2

0948200459
ref: 16-2

PLUG,SPARK(U27ESR-N)

€ 8.50

16-3

0948200456
ref: 16-3
OPT

PLUG,SPARK(CR8E)

€ 7.00

16-4

0948200460
ref: 16-4
OPT

PLUG,SPARK(CR10E)

€ 8.50

16-5

0948200457
ref: 16-5
OPT

PLUG,SPARK(U24ESR-N)

€ 7.00

16-6

0948200461
ref: 16-6
OPT

PLUG,SPARK(U31ESR-N)

€ 8.50

17

1310117EB0
ref: 17

PIPE,INTAKE NO.1

€ 48.50

18

1310317EB0
ref: 18

PIPE,INTAKE NO.3

€ 41.50

19

1310417EB0
ref: 19

PIPE,INTAKE NO.4

€ 48.50

20

0928044007
ref: 20

O RING(D:2.4,ID:44)

€ 15.00

21

0940256208
ref: 21

CLAMP

€ 3.50

22

0912606014
ref: 22

SCREW(6X16)

€ 2.00

23

0935450103600
ref: 23
L:600-200

HOSE,VACUUM

€ 7.50

24

0155010403
ref: 24

BOLT

€ 4.00

all assemblies
