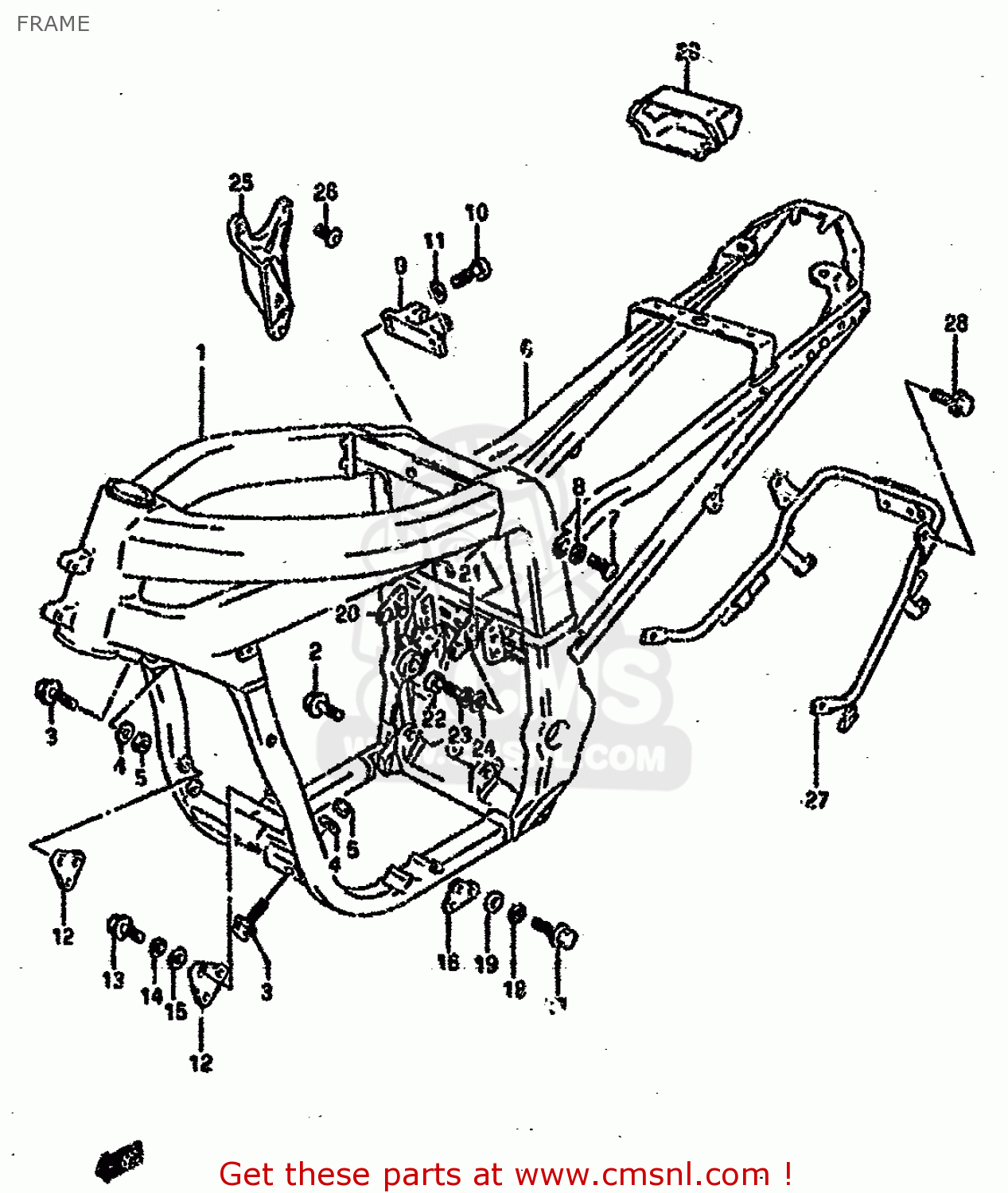

FRAME

ref

part #

description

quantity

1

4110117881
ref: 1

FRAME SET

€ 4,228.00

2

0155010303
ref: 2

BOLT

€ 3.00

3

0155010453
ref: 3

BOLT

€ 3.50

4

0916010013
ref: 4

WASHER (10.1X21X2.3)

€ 2.00

5

0915910027
ref: 5

NUT

€ 3.00

6

4120017E50
ref: 6

RAIL COMP,SEAT

€ 1,232.00

7

4352917D00
ref: 7

BOLT,FOOTREST BRACKET

€ 5.50

8

0916410010
ref: 8

WASHER

€ 6.50

9

4176217E00
ref: 9

BRACKET,R.C.U.

€ 89.00

10

0910608056
ref: 10

BOLT(8X28)

€ 2.00

11

0916408015
ref: 11

WASHER

€ 3.00

12

4191117E00
ref: 12

PLATE,ENG MTG NO.1

€ 27.00

13

0910308255
ref: 13

BOLT

€ 2.50

14

0832101083
ref: 14

LOCK WASHER

€ 2.50

15

0916008010
ref: 15

WASHER (8.2X20X1.6)

€ 1.50

16-1

4192117E00
ref: 16-1

PLATE,ENGINE MOUNTING

€ 8.50

16-2

4193117E00
ref: 16-2

PLATE,ENG MTG NO.2,R

€ 8.00

17

0910308255
ref: 17

BOLT

€ 2.50

18

0832101083
ref: 18

LOCK WASHER

€ 2.50

19

0916008010
ref: 19

WASHER (8.2X20X1.6)

€ 1.50

20

4194017E00
ref: 20

PLATE,ENGINE MOUNTING NO.3

€ 14.50

21

4195017E00
ref: 21

PLATE,ENG MTG NO.3,L

€ 16.00

22

0910608005
ref: 22

BOLT(8X22)

€ 2.00

23

0832101083
ref: 23

LOCK WASHER

€ 2.50

24

0916008010
ref: 24

WASHER (8.2X20X1.6)

€ 1.50

25-1

4196117E60
ref: 25-1

PLATE,ENGINE MOUNTING,UPPER

€ 153.00

25-2

4197117E60
ref: 25-2

PLATE,ENGINE MOUNT UPR

€ 154.50

26

0910608112
ref: 26

BOLT

€ 5.00

27

4398017E04
ref: 27

GRIP,REAR

€ 135.50

28

0155008203
ref: 28

BOLT

€ 3.00

29

4743117E00
ref: 29

HOLDER,TOOL

€ 26.50
