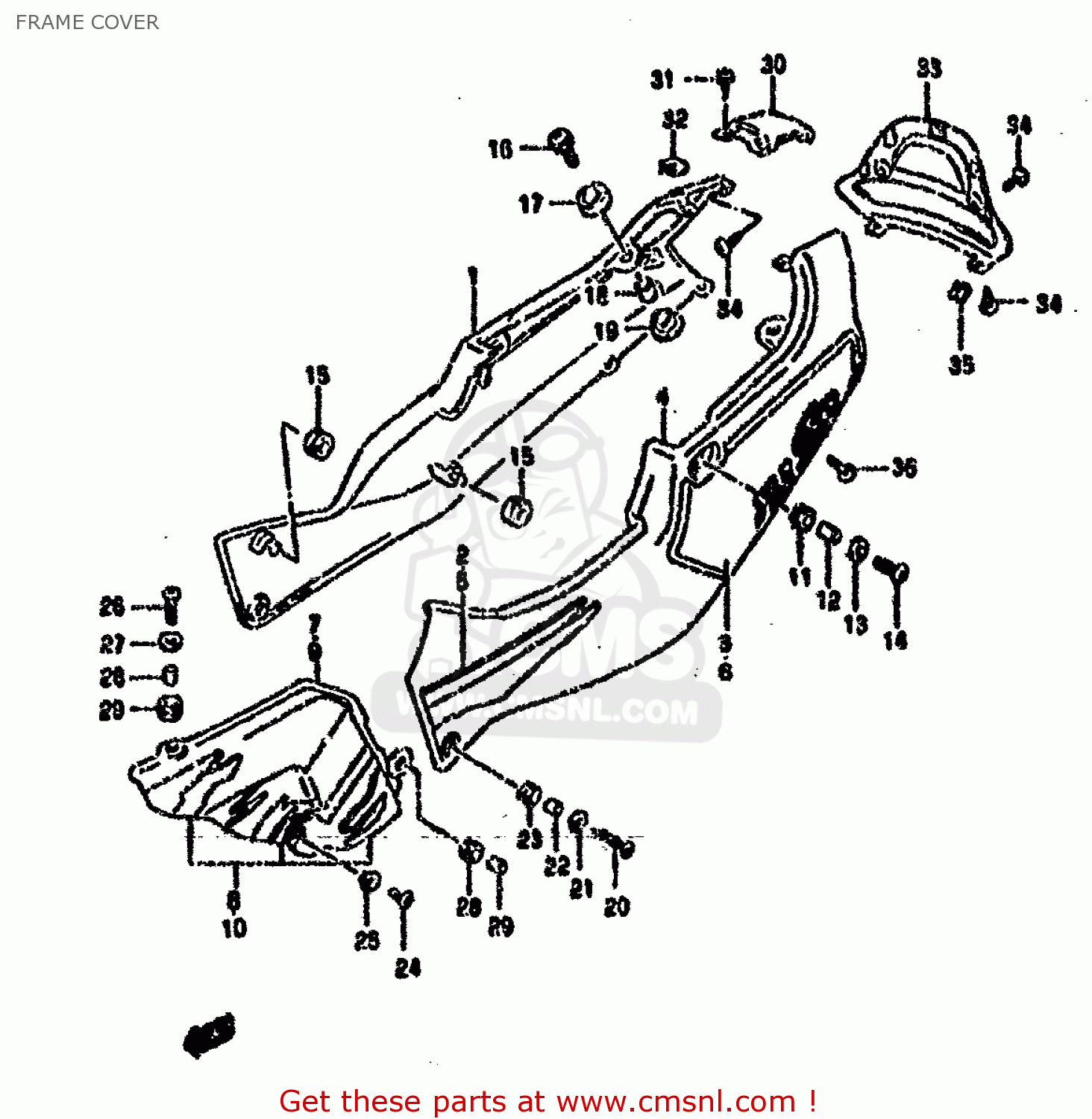

FRAME COVER

ref

part #

description

quantity

1-1

4710017EE00JW
ref: 1-1

COVER ASSY,FRAME RH (WHITE)

€ 334.00

1-2

4710017EF00JW
ref: 1-2
E22

COVER ASSY,FRAME RH (WHITE)

€ 310.00

2

6813546E10C4P
ref: 2

TAPE,FRAME COVER STRIPE,R

€ 21.00

3

6813617E101ZR
ref: 3

TAPE,ZECKEN RH (BLACK)

€ 104.00

4-1

4720017EE00JW
ref: 4-1

COVER ASSY,FRAME LH (WHITE)

€ 0.00

4-2

4720017EF00JW
ref: 4-2
E22

COVER ASSY,FRAME LH (WHITE)

€ 188.00

5

6814546E10C4P
ref: 5

TAPE,FRAME COVER STRIPE,L

€ 20.50

6

6814617E101ZR
ref: 6

TAPE,FRAME COVER STICKER ,LH

€ 104.50

7

4750046E201LE
ref: 7

COVER ASSY,FRAME BODY,R

€ 193.00

8

6866046E10C4P
ref: 8

TAPE SET,FRAME COVER B

€ 64.50

9

4760046E201LE
ref: 9

COVER ASSY,FRAME BODY,L

€ 193.00

10

6867046E10C4P
ref: 10

TAPE SET,FRAME COVER B

€ 64.00

11

9443326B00
ref: 11

CUSHION

€ 4.00

12

0918006027
ref: 12

SPACER (6.3X9.1X6.7)

€ 3.00

13

0916006054
ref: 13

WASHER(6.5X22X1.6)

€ 2.00

14

0913906050
ref: 14

SCREW(6X20)

€ 5.00

15

0932008018
ref: 15

CUSHION

€ 4.00

16

0913606083
ref: 16

SCREW(6X30)

€ 3.00

17

4514904A00
ref: 17

CUSHION,TAIL COVER UPR

€ 2.00

18

0918006167
ref: 18

SPACER (6,8X10X9.4)

€ 2.50

19

4532617C00
ref: 19

CUSHION,FRAME COVER LWR

€ 7.00

20

0913906042
ref: 20

SCREW(6X30)

€ 7.50

21

0916006006
ref: 21

WASHER

€ 2.00

22

0918006011
ref: 22

SPACER (6.1X9X9)

€ 2.00

23

0932009016
ref: 23

CUSHION

€ 2.50

24

0913905025
ref: 24

SCREW(5X14)

€ 2.00

25

0916906040
ref: 25

WASHER

€ 2.00

26

0214206253
ref: 26

SCREW

€ 1.50

27

0916006057
ref: 27

WASHER

€ 2.00

28

0918006011
ref: 28

SPACER (6.1X9X9)

€ 2.00

29

0932009016
ref: 29

CUSHION

€ 2.50

30

4730017E000JW
ref: 30

COVER ASSY,FRAME CTR

€ 48.00

31

0314114123
ref: 31

SCREW

€ 2.00

32

0914804024
ref: 32

NUT

€ 2.00

33

4741117E00
ref: 33

COVER,FRAME RR

€ 24.50

34

0913905021
ref: 34

SCREW(5X12)

€ 2.00

35

0914805021
ref: 35

NUT

€ 1.50

36

0354104103
ref: 36

SCREW

€ 1.50
