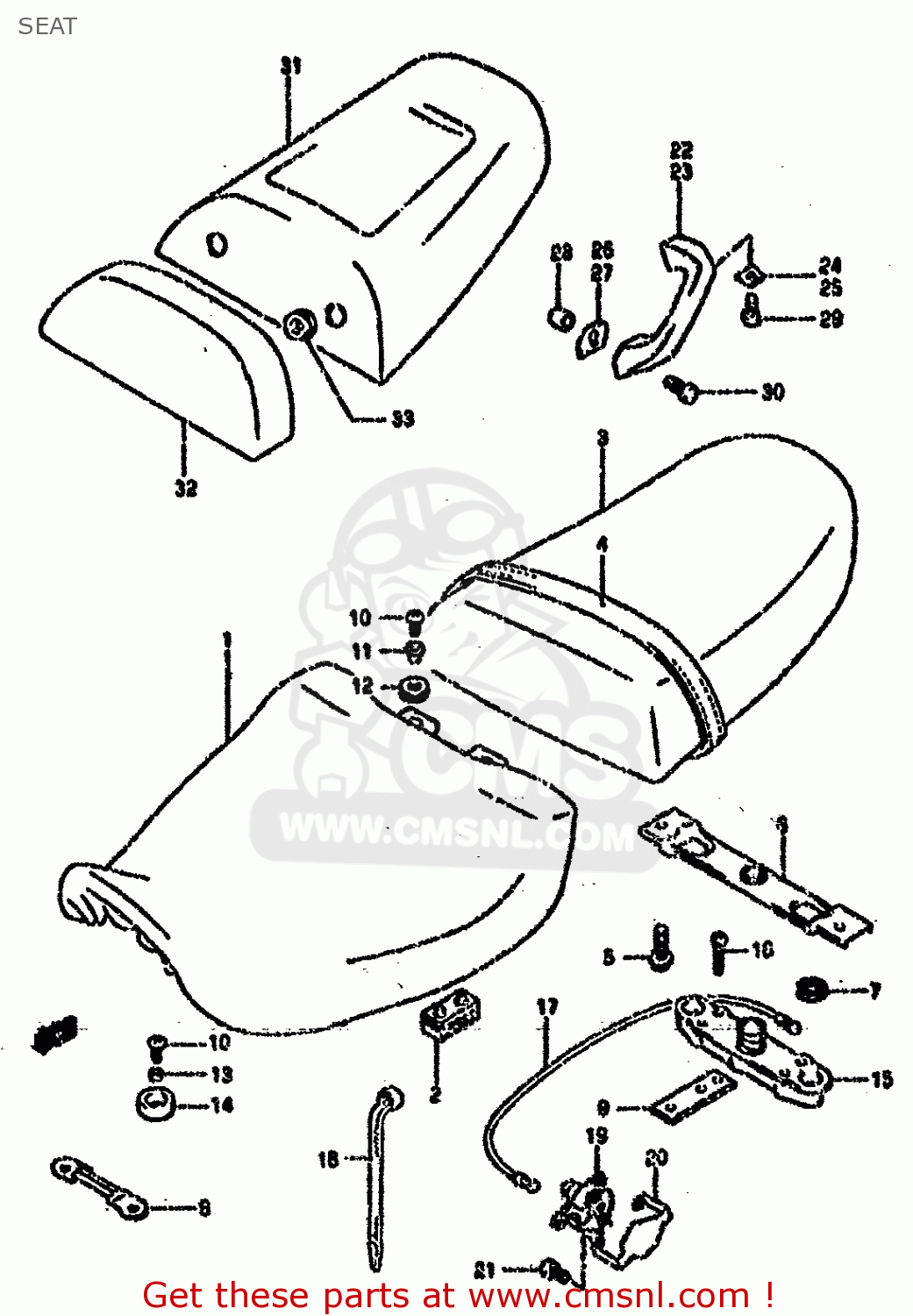

SEAT

ref

part #

description

quantity

1

4510017E1058R
ref: 1

SEAT ASSEMBLY

€ 262.50

2

4514931300
ref: 2

CUSHION,SEAT(40X20X15)

€ 2.00

3

4530017E205FM
ref: 3

SEAT ASSEMBLY,PILLION

€ 312.00

4

4518017E005FM
ref: 4

BAND COMP,SEAT

€ 41.00

5

0155006203
ref: 5

BOLT

€ 2.50

6

4521022D01
ref: 6

STRIKER,SEAT LOCK

€ 31.00

7

4521331300
ref: 7

CUSHION

€ 1.50

8

4511917E00
ref: 8

PLATE,SEAT FR HOOK

€ 9.00

9

4521017E00
ref: 9

BRACKET COMP,SEAT SUPPORT

€ 13.00

10

0214206163
ref: 10

SCREW

€ 2.50

11

0916906064
ref: 11

WASHER

€ 4.50

12

9443326B00
ref: 12

CUSHION

€ 4.00

13

0918006053
ref: 13

SPACER (6.8X10X4.7)

€ 2.00

14

4514904A00
ref: 14

CUSHION,TAIL COVER UPR

€ 2.00

15

4522013601
ref: 15

LOCK ASSY,SEAT STRIKER

€ 47.00

16

0211206353
ref: 16

SCREW

€ 2.50

17

4528017E00
ref: 17

CABLE,SEAT LOCK

€ 16.50

18

0940718403
ref: 18

CLAMP L:165

€ 2.50

19

9570012851
ref: 19

LOCK SET,SEAT

€ 110.50

20

4528945D01
ref: 20

PLATE,SEAT LOCK GUARD

€ 10.50

21

0913906075
ref: 21

SCREW(6X12)

€ 3.00

22

4621117E000JW
ref: 22
E22

HANDLE,PILLION RIDER,R

€ 127.50

23

4622117E000JW
ref: 23
E22

HANDLE,PILLION RIDER,L

€ 127.50

24

4623617E00
ref: 24
E22

CUSH.,PILLION

€ 6.50

25

4623717E00
ref: 25
E22

CUSHION,PILLION HANDLE UPR,L

€ 5.50

26

4623817E00
ref: 26
E22

CUSHION,PILLION HANDLE LWR,R

€ 7.00

27

4623917E00
ref: 27
E22

CUSH,PILLIONL

€ 7.00

28

0155008203
ref: 28
E22

BOLT

€ 3.00

29

0713008453
ref: 29
E22

BOLT

€ 3.00

30

0918008173
ref: 30
E22

SPACER(8.6X16X20)

€ 7.00

31

45500178700JW
ref: 31
OPT

BOX SET,SEAT TAIL

€ 386.50

32

4622017E0058R
ref: 32
OPT

BACKREST COMP,SEAT

€ 112.50

33

0932012031
ref: 33
OPT

CUSHION

€ 3.00
