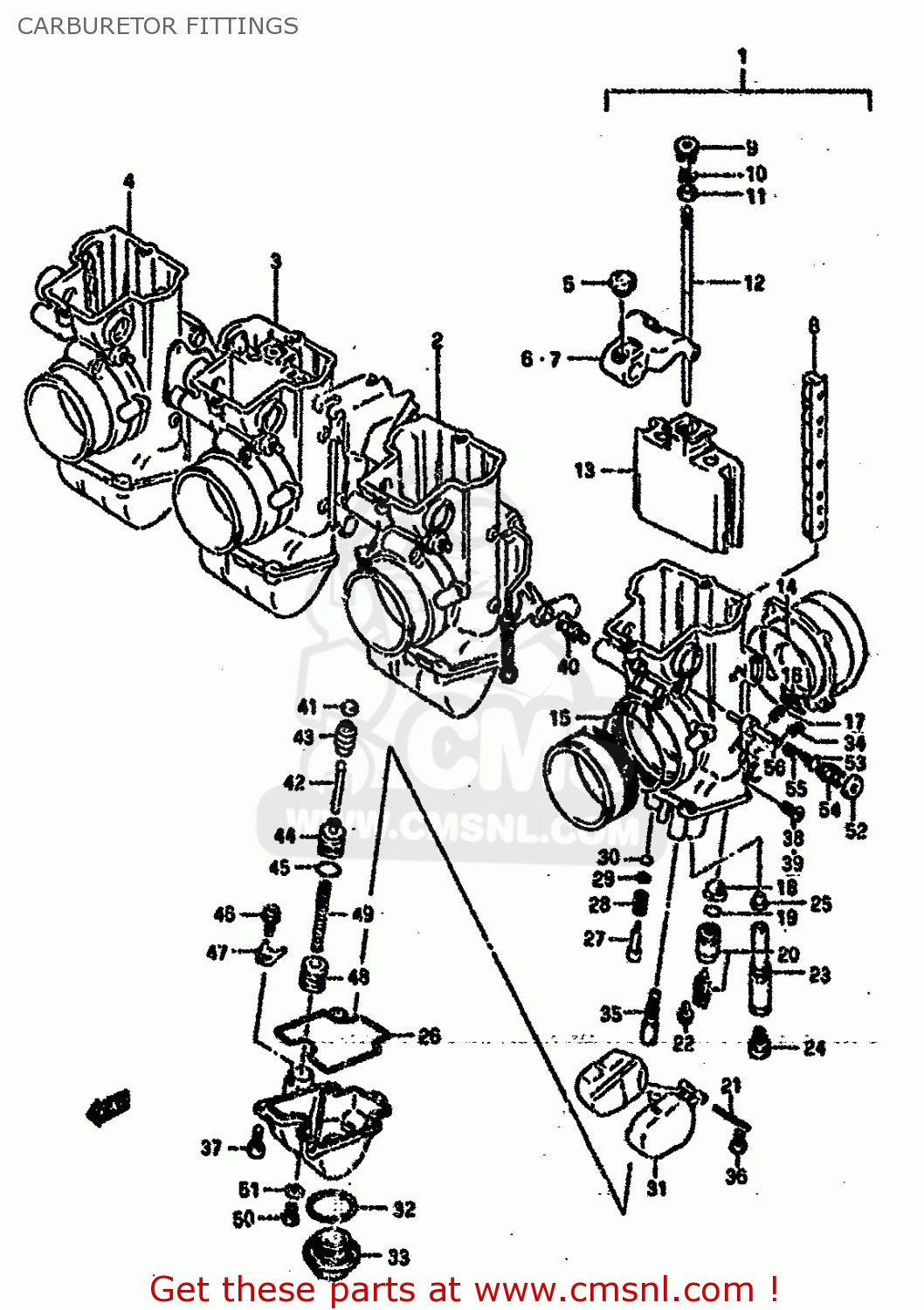

CARBURETOR FITTINGS

ref

part #

description

quantity

1

1356460D10
ref: 1

SENSOR

€ 0.00

2

1356571B00
ref: 2

SEAL

€ 0.00

3

1356671B00
ref: 3

SEAL

€ 0.00

4

1355605A10
ref: 4

SEAL,THROTTLE SHAFT

€ 3.50

5

1361744080
ref: 5

E RING

€ 3.50

6

1355747070
ref: 6

GASKET,THROTTLE SHAFT (NAS)

€ 4.00

7

1361218E30
ref: 7

BOLT

€ 0.00

8

1342418E10
ref: 8

RING

€ 0.00

9

1355705A20
ref: 9
ML

RING

€ 3.00

10

1360218E90
ref: 10

SCREW

€ 0.00

11

1360218E10
ref: 11
ML

SCREW

€ 0.00

12

1325418E00
ref: 12

PIN

€ 0.00

13

1326118E00
ref: 13

CAP,TOP

€ 0.00

14

1360217E00
ref: 14

SCREW

€ 0.00

15

3781018E00
ref: 15

WASHER

€ 2.00

16

1326618E00
ref: 16

GASKET

€ 0.00

17

1355747070
ref: 17

GASKET,THROTTLE SHAFT (NAS)

€ 4.00

18

1360218E20
ref: 18

SCREW

€ 4.00

19

1362418E10
ref: 19

BRACKET ASSY

€ 0.00

20

1341318E000
ref: 20

LEVER

€ 0.00

21

1327484000
ref: 21

CAP

€ 5.50

22

1360218E40
ref: 22

SCREW

€ 2.00

23

1326718E00
ref: 23

ADJUSTER ASSY

€ 0.00

24

1368420C10
ref: 24

HOSE

€ 7.00

25

1360618E00
ref: 25

WASHER

€ 3.50

26

1337560A00
ref: 26

SPRING

€ 4.00

27

1342738300
ref: 27

WASHER

€ 1.50

28

1360218E00
ref: 28

SCREW

€ 0.00

29

1368318E00
ref: 29

HOSE (ID:3.5X0D:6.5XL:200)

€ 12.50

30

1368516720
ref: 30

3-WAY

€ 3.50

31

1368318E10
ref: 31

HOE (ID:3.5X0D:6.5XL:40)

€ 12.50

32

1368322D00
ref: 32

HOSE (ID:3.5X0D:6.5XL:80)

€ 12.50

33

1368322D40
ref: 33

HOSE (ID:3.5X0D:6.5XL:150)

€ 12.50

34

1361918E00
ref: 34

CLAMP

€ 0.00

35

1338318E00
ref: 35

HOSE (L:40)

€ 13.50

36

1338318E10
ref: 36

HOSE (L:45)

€ 13.50

37

1367112C00
ref: 37

CLIP

€ 2.50

38

1367344B00
ref: 38

SEAL

€ 6.00

39

1368521E00
ref: 39

NIPPLE

€ 13.50

40

1368317E00
ref: 40

HOSE

€ 41.00

41

1368317E20
ref: 41

HOSE

€ 39.50

42

1369318E10
ref: 42

CLIP

€ 0.00

43

1329849000
ref: 43

E-RING

€ 2.00

44

1360218E50
ref: 44
ML

SCREW

€ 0.00

45

1366118E00
ref: 45
ML

NUT

€ 0.00

46

1361206C00
ref: 46

BOLT

€ 0.00
