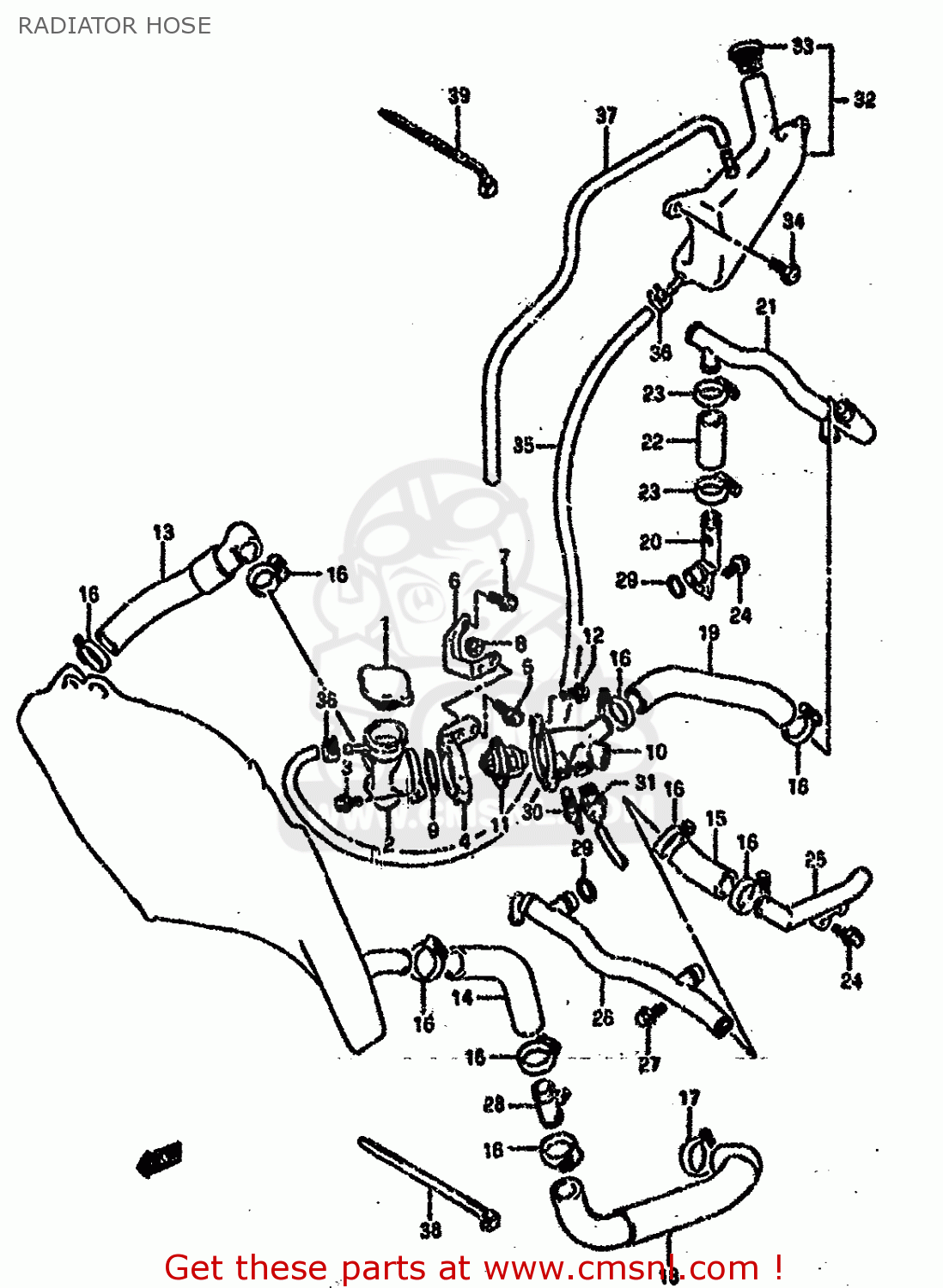

RADIATOR HOSE

ref

part #

description

quantity

1

1773012C01
ref: 1

CAP,RADIATOR

€ 40.00

2

1779132C00
ref: 2

CONDUCTION,RADIATOR

€ 133.50

3

0155006163
ref: 3

BOLT

€ 2.50

4

1779232C01
ref: 4

BRACKET,CONDUCTION

€ 29.00

5

0155006203
ref: 5

BOLT

€ 2.50

6

1779317E00
ref: 6

BRACKET,CONDUCTION BRAKE

€ 11.50

7

0155006163
ref: 7

BOLT

€ 2.50

8

0831610063
ref: 8

NUT

€ 2.50

9

0928044005
ref: 9

O RING(D:2.4,ID:43.2)

€ 4.00

10

1766217E00
ref: 10

CONNECTOR,THERMOSTAT INLET

€ 42.00

11

1767032C01
ref: 11

THERMOSTAT,WATER

€ 41.00

12

0155006203
ref: 12

BOLT

€ 2.50

13

1785717E01
ref: 13

HOSE,RADIATOR INLET

€ 23.50

14

1785217E00
ref: 14

HOSE,RADIATOR OUTLET

€ 18.00

15

1785617E50
ref: 15

HOSE,WATER

€ 11.00

16

0940230502
ref: 16

CLAMP

€ 11.50

17

0940233502
ref: 17

CLAMP

€ 10.50

18

1785317E00
ref: 18

HOSE,WATER PUMP INLET

€ 40.00

19

1785617E00
ref: 19

HOSE,HEAD OUTLET

€ 18.50

20

1788017E00
ref: 20

PIPE,HEAD OUTLET

€ 39.00

21

1784017E20
ref: 21

PIPE,HEAD OUTLET NO.2

€ 95.50

22

1785917E00
ref: 22

HOSE,WATER

€ 17.50

23

0940225502
ref: 23

CLAMP

€ 8.50

24

0155006123
ref: 24

BOLT

€ 2.50

25

1786017E00
ref: 25

PIPE,CYLINDER SIDE

€ 69.50

26

1787021E01
ref: 26

PIPE,CYLINDER INLET

€ 168.00

27

0910306184
ref: 27

BOLT

€ 2.50

28

1789017E01
ref: 28

UNION,HOSE JOINT

€ 25.00

29

0928018009
ref: 29

O RING(D:3.2,ID:17.8)

€ 8.00

30

3485050A00
ref: 30

GAUGE ASSY,WATER TEMP

€ 25.00

31

1768045D00
ref: 31

SWITCH COMP,RADIATOR FAN

€ 95.00

32

1791017E10
ref: 32

TANK ASSY,RESERVOIR

€ 55.50

33

1793212C00
ref: 33

CAP,RESERVOIR TANK

€ 3.50

34

0913606022
ref: 34

SCREW(6X20)

€ 2.50

35

1798121E00
ref: 35

HOSE,RESERVOIR TANK INLET

€ 19.50

36

0940108411
ref: 36

CLIP

€ 3.00

37

1798217E00
ref: 37

HOSE,RESERVOIR TANK OVERFLOW

€ 19.50

38

0940722404
ref: 38

CLAMP

€ 2.50

39

0940718403
ref: 39

CLAMP L:165

€ 2.50
