FRONT FENDER

GSXR750SP 1994 (R) FRANCE GERMANY (E04 E22)

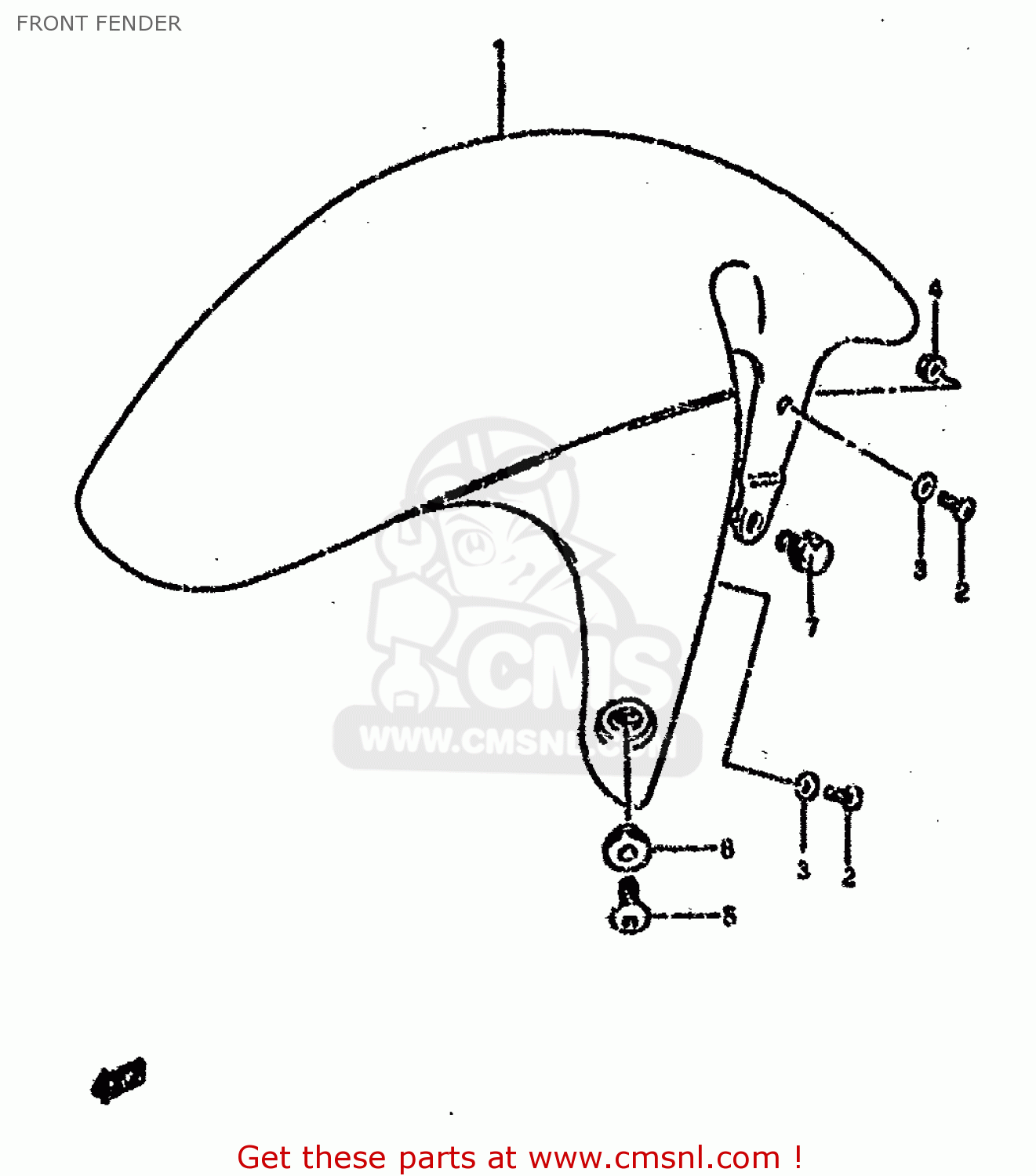

Front fender diagram GSXR750SP 1994 (R) FRANCE GERMANY (E04 E22)

FRONT FENDER GSXR750SP 1994 (R) FRANCE GERMANY (E04 E22)

FRONT FENDER GSXR750SP 1994 (R) FRANCE GERMANY (E04 E22)

prices are in EUR

ref

part #

description

quantity

1

5311046E210JW
ref: 1

FENDER,FR

€ 172.50

2

0214203103
ref: 2

SCREW

€ 2.00

3

0832201033
ref: 3

WASHER

€ 1.50

4

0831626035
ref: 4

NUT

€ 2.00

5

0913906030
ref: 5

SCREW(6X16)

€ 3.50

6

0916106021
ref: 6

WASHER(6.3X16X1.5)

€ 2.50

7

0155008203
ref: 7

BOLT

€ 3.00
