GEAR SHIFTING

GSXR750SP 1994 (R) FRANCE GERMANY (E04 E22)

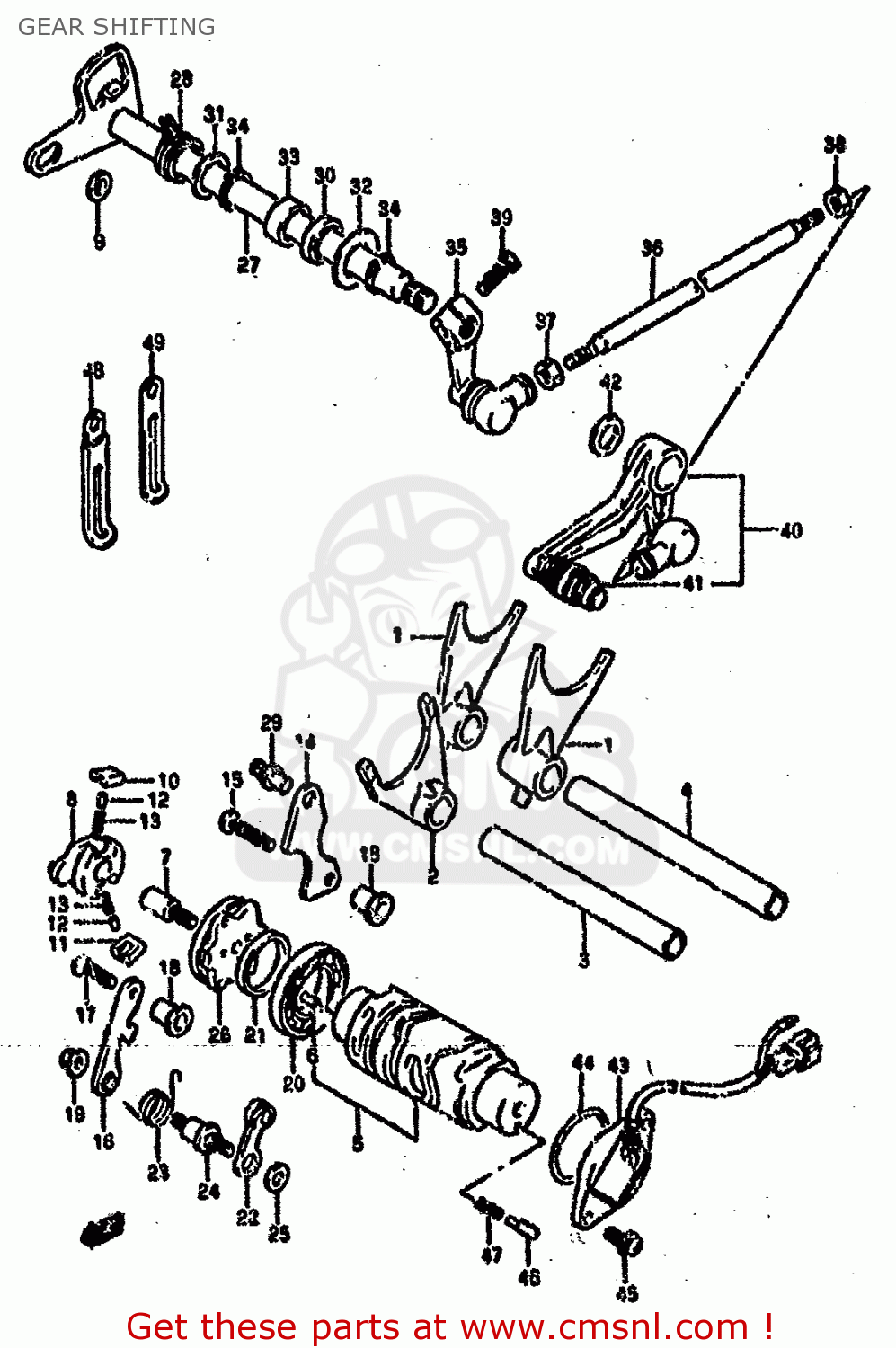

Gear shifting diagram GSXR750SP 1994 (R) FRANCE GERMANY (E04 E22)

GEAR SHIFTING GSXR750SP 1994 (R) FRANCE GERMANY (E04 E22)
GEAR SHIFTING GSXR750SP 1994 (R) FRANCE GERMANY (E04 E22)
GEAR SHIFTING GSXR750SP 1994 (R) FRANCE GERMANY (E04 E22)
prices are in EUR
ref
part #
description
quantity
1
2521117E00
ref: 1
FORK,GEAR SHIFT NO.1
€ 64.50
2
2523117E00
ref: 2
FORK,GEAR SHIFT NO.3
€ 108.50
3
2541126D01
ref: 3
SHAFT,GEAR SHIFT FORK
2541126D01
€ 16.00
4
2541127A00
ref: 4
SHAFT,GEAR SHIFT FORK(L:128)
2541127A00
€ 23.50
5
2531017E01
ref: 5
CAM,GEAR SHIFT
2531017E01
€ 147.00
6
0422104089
ref: 6
PIN
0422104089
€ 1.50
7
2531212C00
ref: 7
PIN,SHIFT CAM DRIVEN GEAR
2531212C00
€ 6.00
8
2532233C00
ref: 8
SHIFTER,GEAR SHIFT CAM
€ 49.50
9
0918007014
ref: 9
SPACER(7X10X5)
0918007014
€ 4.00
10
2532334201
ref: 10
PAWL,GEAR SHIFT NO.1
2532334201
€ 6.00
11
2532434201
ref: 11
PAWL,GEAR SHIFT NO.2
2532434201
€ 6.00
12
0926105003
ref: 12
PIN(5X8)
0926105003
€ 1.50
13
0944004003
ref: 13
SPRING
0944004003
€ 1.50
14
2533126D00
ref: 14
LIFTER,GEAR SHIFT PAWL
2533126D00
€ 6.00
15
0211206303
ref: 15
SCREW 6X30
0211206303
€ 2.50
16
2534117E00
ref: 16
GUIDE,GEAR SHIFT CAM
€ 7.50
17
0212206303
ref: 17
SCREW
0212206303
€ 2.00
18
0918006202
ref: 18
SPACER(6.1X10X16)
0918006202
€ 4.00
19
0831610063
ref: 19
NUT
0831610063
€ 2.50
20
0926225006
ref: 20
BEARING(25X47X8)
0926225006
€ 24.00
21
0916025059
ref: 21
WASHER(25X32X3)
0916025059
€ 5.00
22
2535026D01
ref: 22
STOPPER,GEAR SHIFT CAM
2535026D01
€ 8.50
23
2535526D10
ref: 23
SPRING,STOPPER ARM
€ 11.00
24
2535612C00
ref: 24
SUPPORT,CAM STOPPER ARM
2535612C00
€ 9.50
25
0821106141
ref: 25
WASHER
0821106141
€ 2.50
26
2538012B00
ref: 26
PLATE,GEAR SHIFT CAM
2538012B00
€ 10.00
27
2551017E10
ref: 27
SHAFT,GEAR SHIFT
2551017E10
€ 66.00
28
0944420002
ref: 28
SPRING
€ 5.50
29
2567101000
ref: 29
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.00
30
0928314006
ref: 30
SEAL,OIL(14X22X6)
0928314006
€ 6.50
31
0821114221
ref: 31
WASHER,THRUST
€ 3.50
32
0916014016
ref: 32
WASHER(14X29X0.8)
0916014016
€ 1.50
33
0926314027
ref: 33
BEARING(14X20X12)
0926314027
€ 11.00
34
0833131146
ref: 34
CIRCLIP
0833131146
€ 2.00
35
2552022A00
ref: 35
ARM,GEAR SHIFT LINK
2552022A00
€ 46.50
36
2552517E10
ref: 36
ROD,GEAR SHIFT LINK
€ 19.00
37
0914006011
ref: 37
NUT
0914006011
€ 1.50
38
0831000067
ref: 38
NUT
0831000067
€ 2.50
39
0150006207
ref: 39
BOLT
0150006207
€ 2.00
40
2560017C03
ref: 40
LEVER ASSEMBLY,GEAR SHIFTING
2560017C03
€ 106.00
41
2565216500
ref: 41
RUBBER,GEAR SHIFT PEDAL
2565216500
€ 4.00
42
0916018022
ref: 42
WASHER(18X24X1)
0916018022
€ 3.00
43
3773031E00
ref: 43
BODY,GEAR SWIT
€ 178.00
44
0928035006
ref: 44
O RING(D:2.4,ID:35.5)
0928035006
€ 4.00
45
0211275163
ref: 45
SCREW
0211275163
€ 2.50
46
0920905011
ref: 46
PIN(5X15.5)
0920905011
€ 2.00
47
0944004010
ref: 47
SPRING
0944004010
€ 1.50
48
0940406401
ref: 48
CLAMP L:35
0940406401
€ 2.50
49
0940406426
ref: 49
CLAMP
0940406426
€ 3.00
