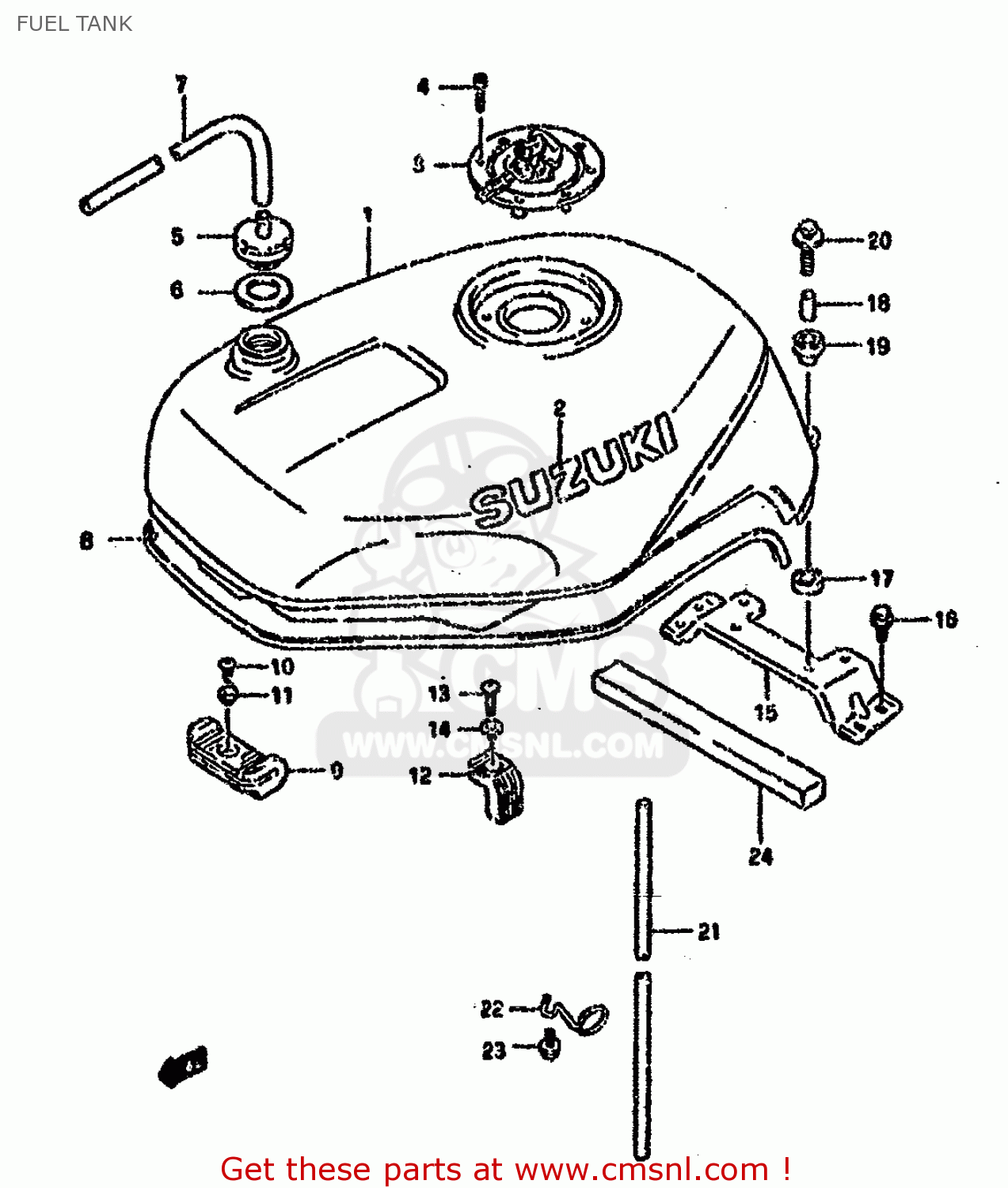

FUEL TANK

ref

part #

description

quantity

1-1

4410017EG01LE
ref: 1-1

TANK ASSEMBLY,FUEL

€ 721.50

1-2

4410017EI01LE
ref: 1-2
E22

TANK ASSY,FUEL

€ 721.50

2

6811112C000JW
ref: 2

EMBLEM,FUEL TANK

€ 21.00

3

4420101851
ref: 3

CAP SET,FUEL TANK

€ 166.50

4

0910605017
ref: 4

BOLT(5X20)

€ 3.00

5

4424006B10
ref: 5

PLUG,FUEL TANK BREATHER

€ 36.00

6

0916812012
ref: 6

GASKET(12.5X20X2.5) (NAS)

€ 2.00

7

0935250823600
ref: 7

HOSE(5X8.2X600)

€ 13.00

8

6824117E00
ref: 8

MOLDING,FUEL TANK

€ 23.00

9

4451141C00
ref: 9

CUSHION,FUEL TANK FR

€ 13.50

10

0214205103
ref: 10

SCREW

€ 2.50

11

0916905012
ref: 11

WASHER

€ 3.00

12

4454533C01
ref: 12

CUSHION,TANK SIDE

€ 11.50

13

0214206203
ref: 13

SCREW

€ 2.00

14

0916906045
ref: 14

WASHER

€ 2.50

15

4453017E11
ref: 15

BRACKET,FUEL TANK,REAR

€ 31.50

16

0155006163
ref: 16

BOLT

€ 2.50

17

0932014017
ref: 17

CUSHION

€ 3.00

18

0918006072
ref: 18

SPACER

€ 2.00

19

0932010038
ref: 19

CUSHION

€ 4.00

20

0150006353
ref: 20

BOLT

€ 2.50

21

093525082300A
ref: 21

HOSE

€ 13.00

22

4448117E01
ref: 22

GUIDE,DRAIN HOSE

€ 6.00

23

0155006123
ref: 23

BOLT

€ 2.50

24

1384117E00
ref: 24

CUSHION,AIR SEAL

€ 18.00
